V2201 Series Hardware BIOS Setup
4-3
Main Information

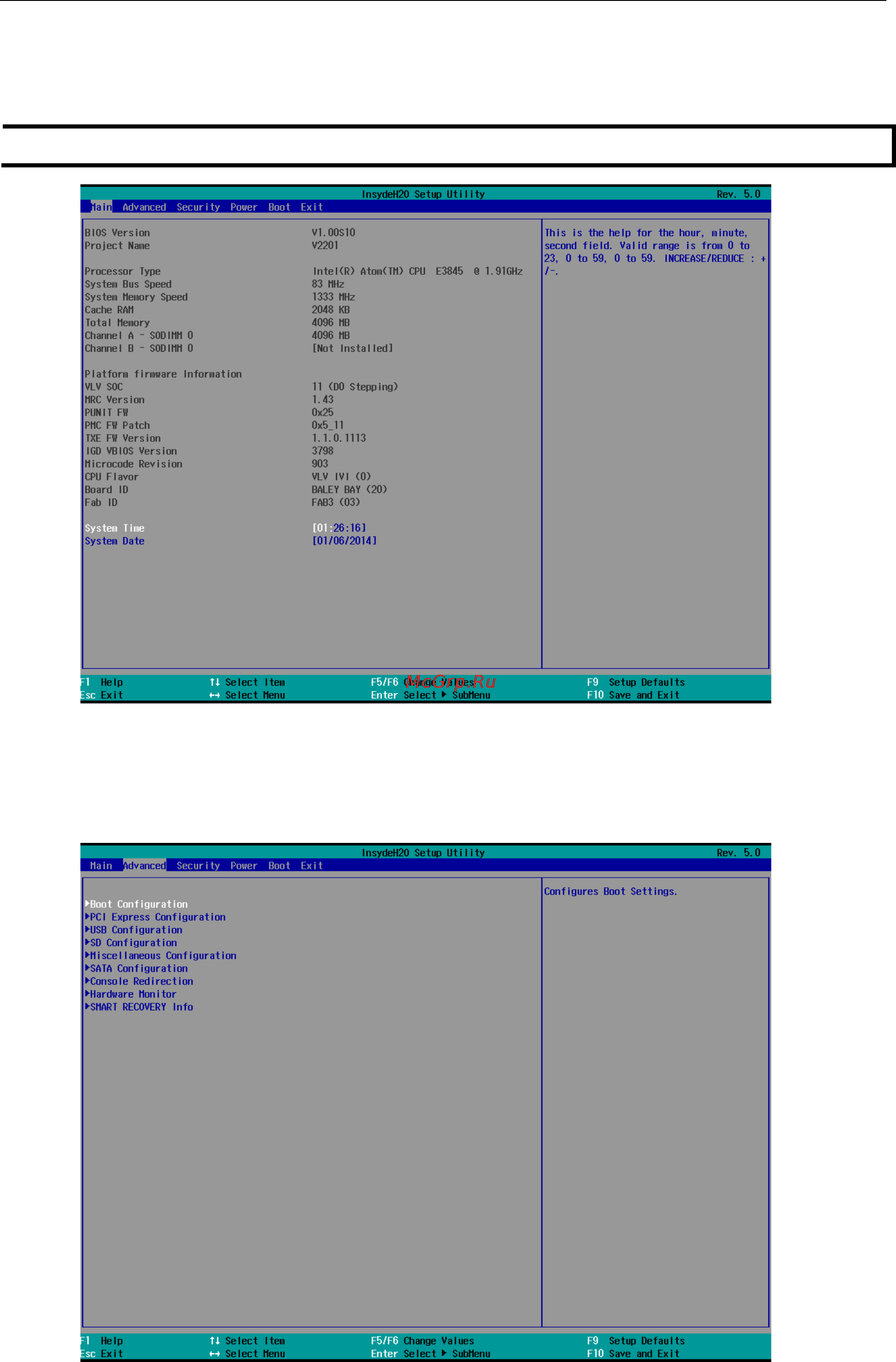

The main page shows basic system information, such as the model name, BIOS version, and CPU type.
NOTE
The
“Processor Type” varies depending on the product model.
Advanced Settings
The Advanced screen appears when you select “Advanced” from the main menu.
