DA-683 XPE User's Manual Software Configuration
Configuring Serial Ports
The DA-683-XPE has 2 RS-232 serial ports with DB9 connectors. The ports are located on the rear panel of the
computer.

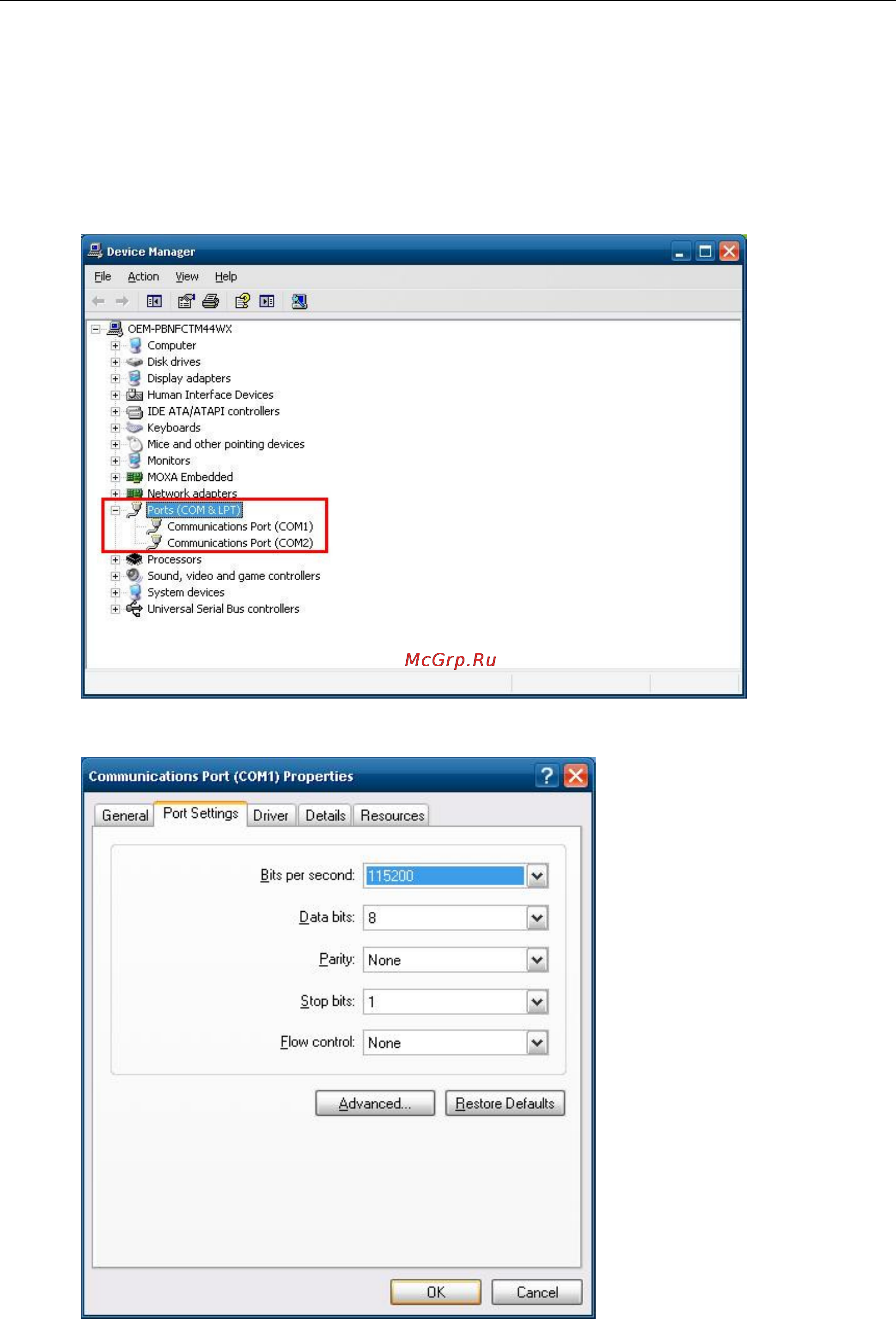

To configure the 2 RS-232 serial ports, first right-click the My Computer icon on the desktop and then select
Properties. From the System Properties screen, select the Hardware tab, and then select Device
Manager. Next, select Ports (COM & LPT) to see Communication Ports COM1 and COM2.
Right-click the COM port you wish to configure, and then select Properties.
2-10
