DA-683 XPE User's Manual Software Configuration

You can configure the parameters of these serial ports. Note that they support the bit rates up to 115,200 bps.

Click OK to finish.

The DA-683-XPE also has 2 expansion slots that can be used with Moxa’s DA Series Expansion Modules, such

as a serial port module, LAN module, switch module, or a PCI development kit.

If you have inserted a serial port module, such as the DA-SP08-DB, DA-SP08-I-DB, DA-SP08-I-TB, or

DA-SP38-I-TB, you may use the following steps to configure these serial ports.

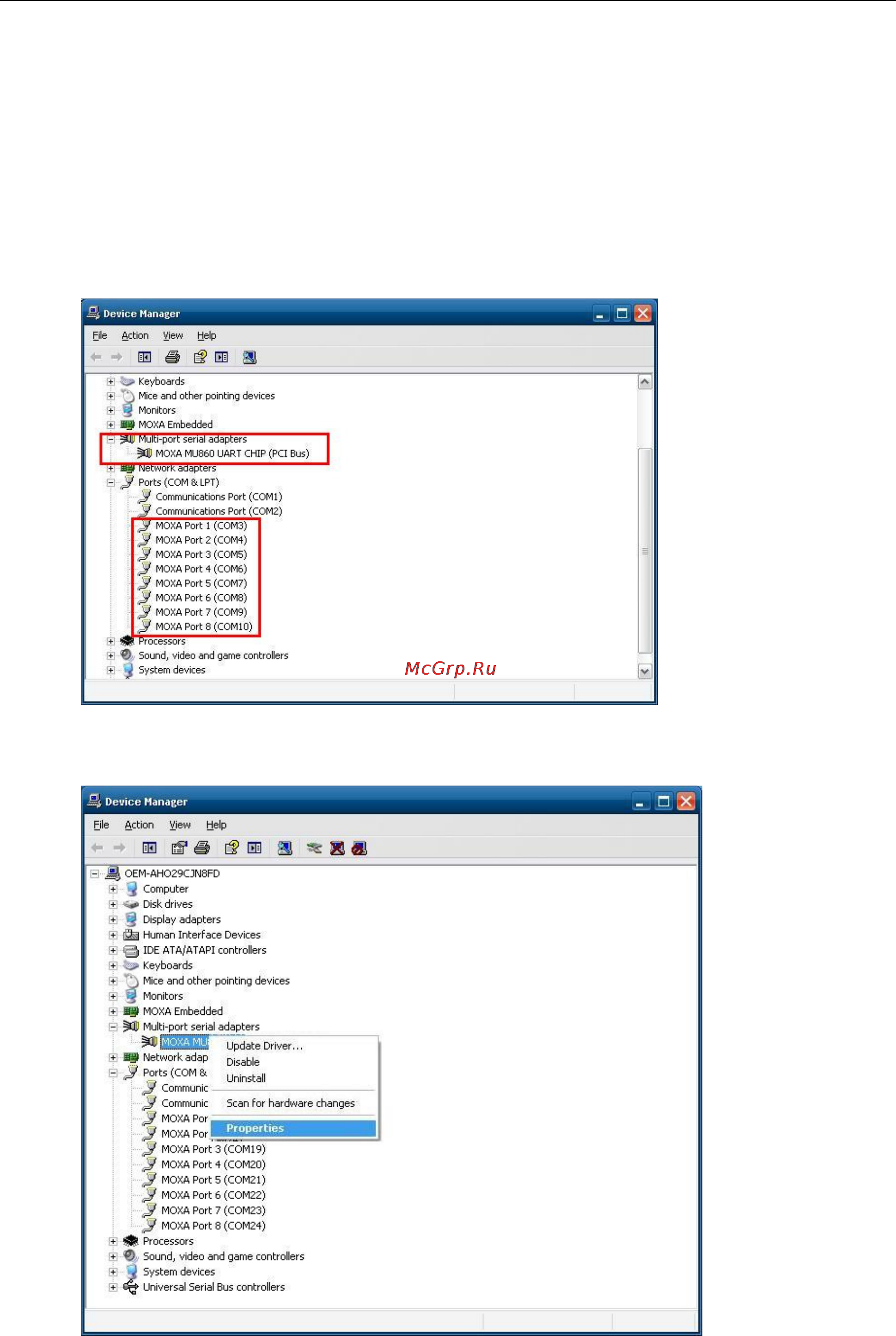

From the Device Manager you can view the new item MOXA MU860 UART CHIP (PCI Bus) under

Multi-port serial adapters. Eight new COM ports will appear under the Ports (COM & LPT) section, which

means that an 8-port serial module has been inserted.

Right-click the MOXA MU860 UART CHIP (PCI Bus) and select Properties to re-assign the port number for

each COM port.

2-11
