DA-683 XPE User's Manual System Recovery

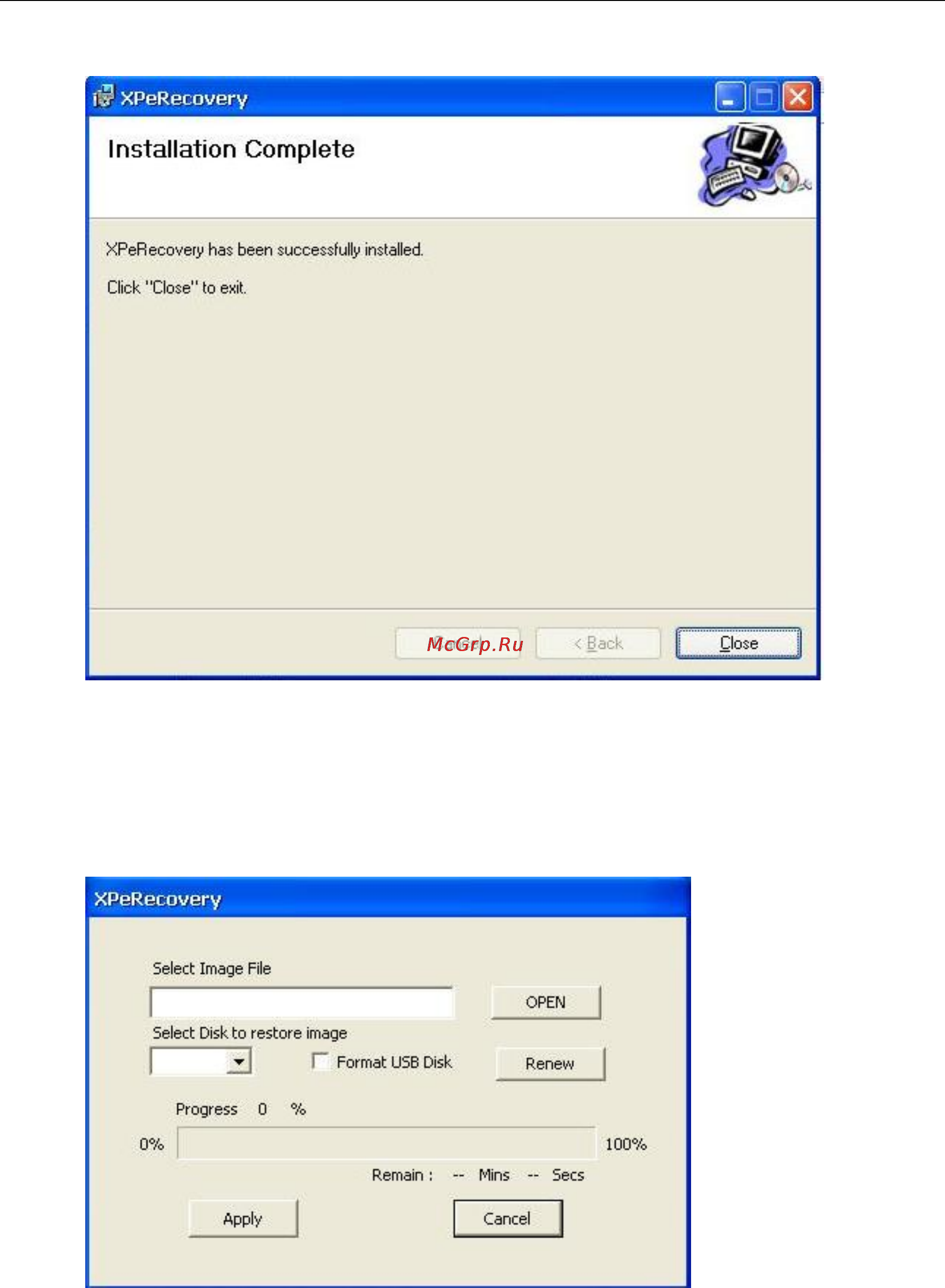

Click Close to finish.
Step 2: Extract Recovery Image from PC to USB disk
After the installation is complete, you will see the XPeRecovery shortcut on your desktop. You can start the
USB disk recovery utility by opening this shortcut. Double-click the shortcut then click OPEN to select the
image file. This file is located on the software CD in the recovery folder, and the filename is
da683_V1.0_Build_11010520.wim. You may also copy this file to your PC. In the following example, we
have already copied the image file to the D drive of the PC.
4-4
