MD-224 Hardware Manual Hardware Connection Description
3-5
VESA Mounting
The MD
-224 Series also comes with an
optional VESA mounting kit. Six flat screws
and four round screws are required to

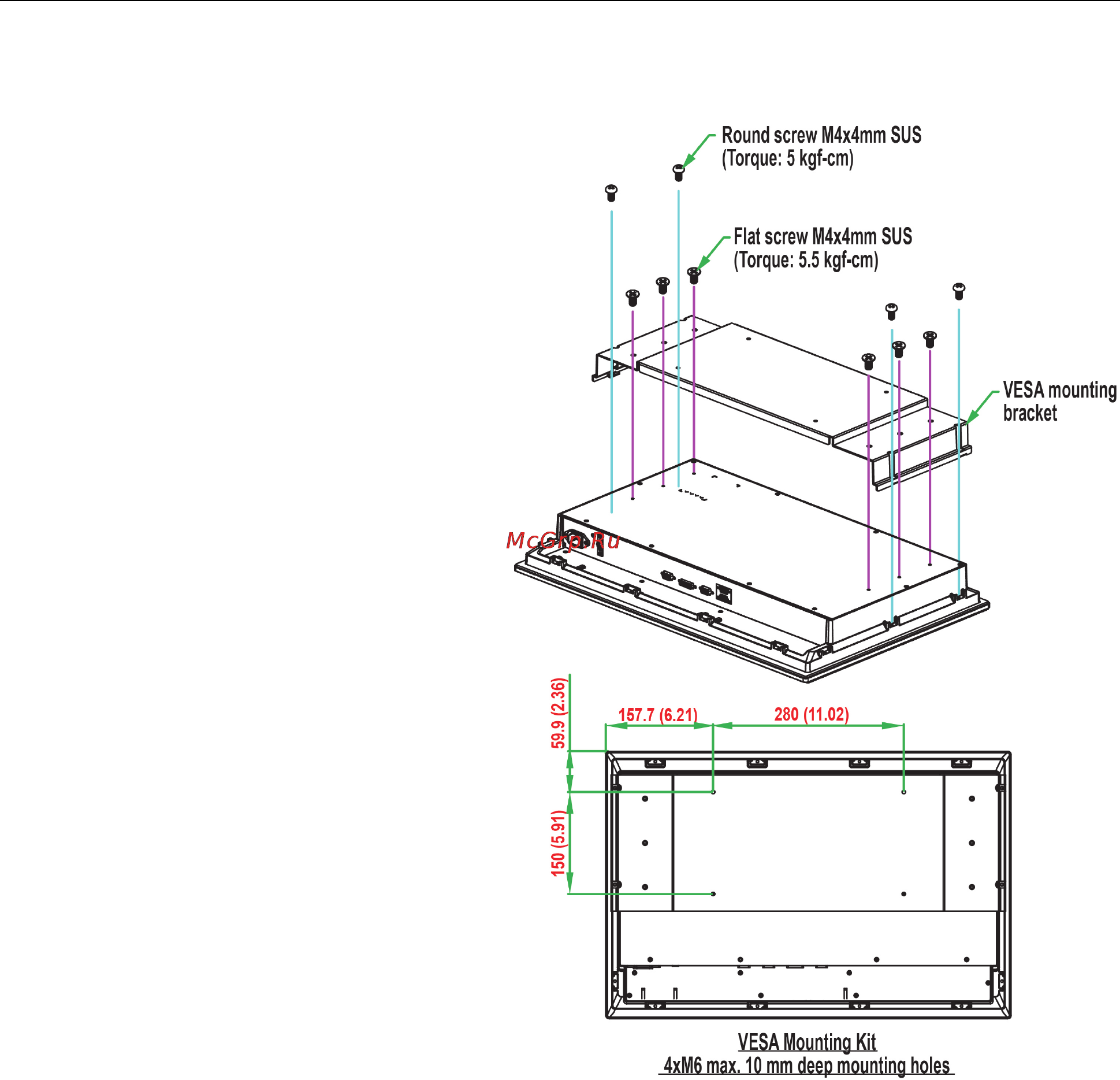

fasten the VESA mounting bracket. See
the figure below for detailed screw
specifications and torque values.
An additional four screws (not included in
the kit) are required to mount the display
on a VESA rack. For this purpose, use M6
screws with a length between 10 and 12
mm.
