MD-224 Hardware Manual On-Screen Display (OSD) Controls

B-5

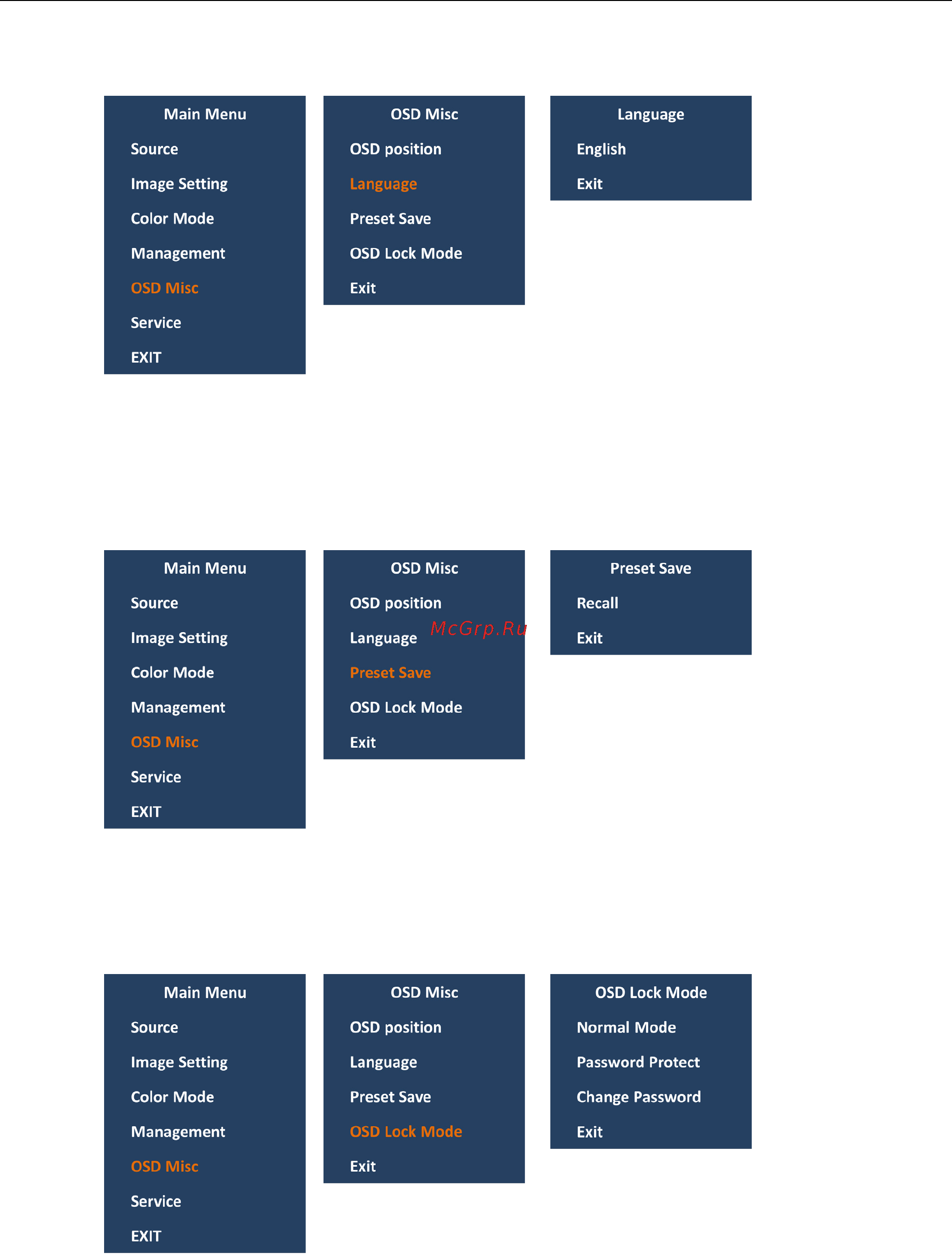

OSD Misc – Language

OSD language to be used for all text and warnings.

•

English = Display OSD in English.

•

There are only English supported now.

OSD Misc – Preset Save

Allow

s it to work with Memory Presets (Recall) for OSD menu settings.

•

Recall = Reset to default setting and value. Will override and restore all previous modified settings.

OSD Misc – OSD Lock Mode

Prevent accidental user intervention, can set the behavior of how the OSD menu is accessible by the user.

•

Normal Mode = Default accessible pop-up by touching the “MENU” button.

•

Password Protect = Ask for key code first (321).

•

Change Password = Change password value. Using BR+/-

and MENU button change and confirm password.

Default password is “321”.
