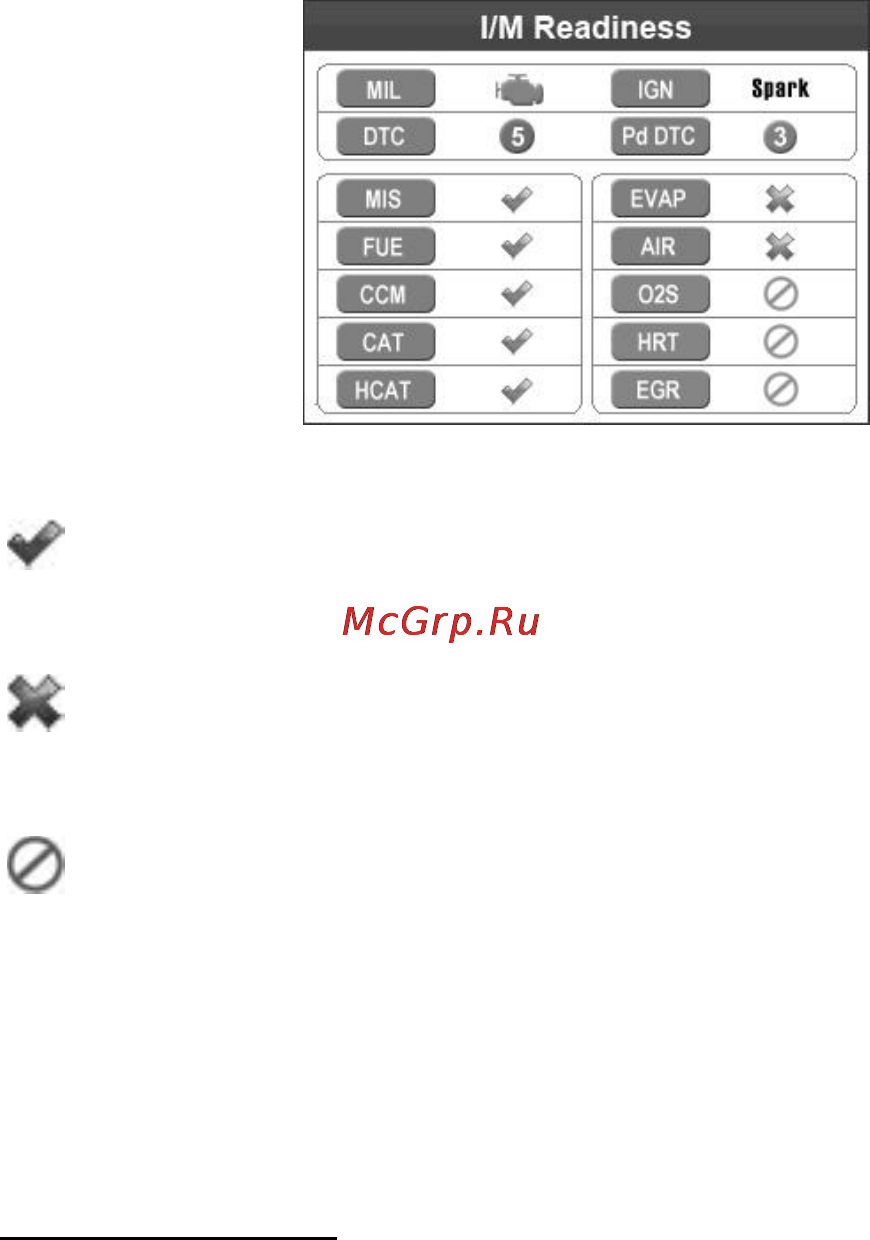

Figure 4.14

“OK” -- Indicates that a particular monitor being checked

has completed its diagnostic testing.

“INC” -- Indicates that a particular monitor being checked

has not completed its diagnostic testing.

“N/A” -- The monitor is not supported on the vehicle.

The green, yellow and red LEDs provide a quick way to help you

determine if a vehicle is ready for an Emission Test.

The LED and audio tone indications are interpreted as below:

LED Interpretation

1) GREEN LED – Indicates that engine systems are “OK” and

operating normally (the number of Monitors supported by the

vehicle which have run and performed their self-diagnostic

testing is in the allowed limit. MIL is off. ).There are no stored

and pending DTCs. The vehicle is ready for an Emissions Test,

and there is a good possibility that it can be certified.

2) YELLOW LED – With MIL off, there may be three possible

conditions to cause the yellow LED to light.
