ioLogik E1500 Series Using the Web Console
3-10

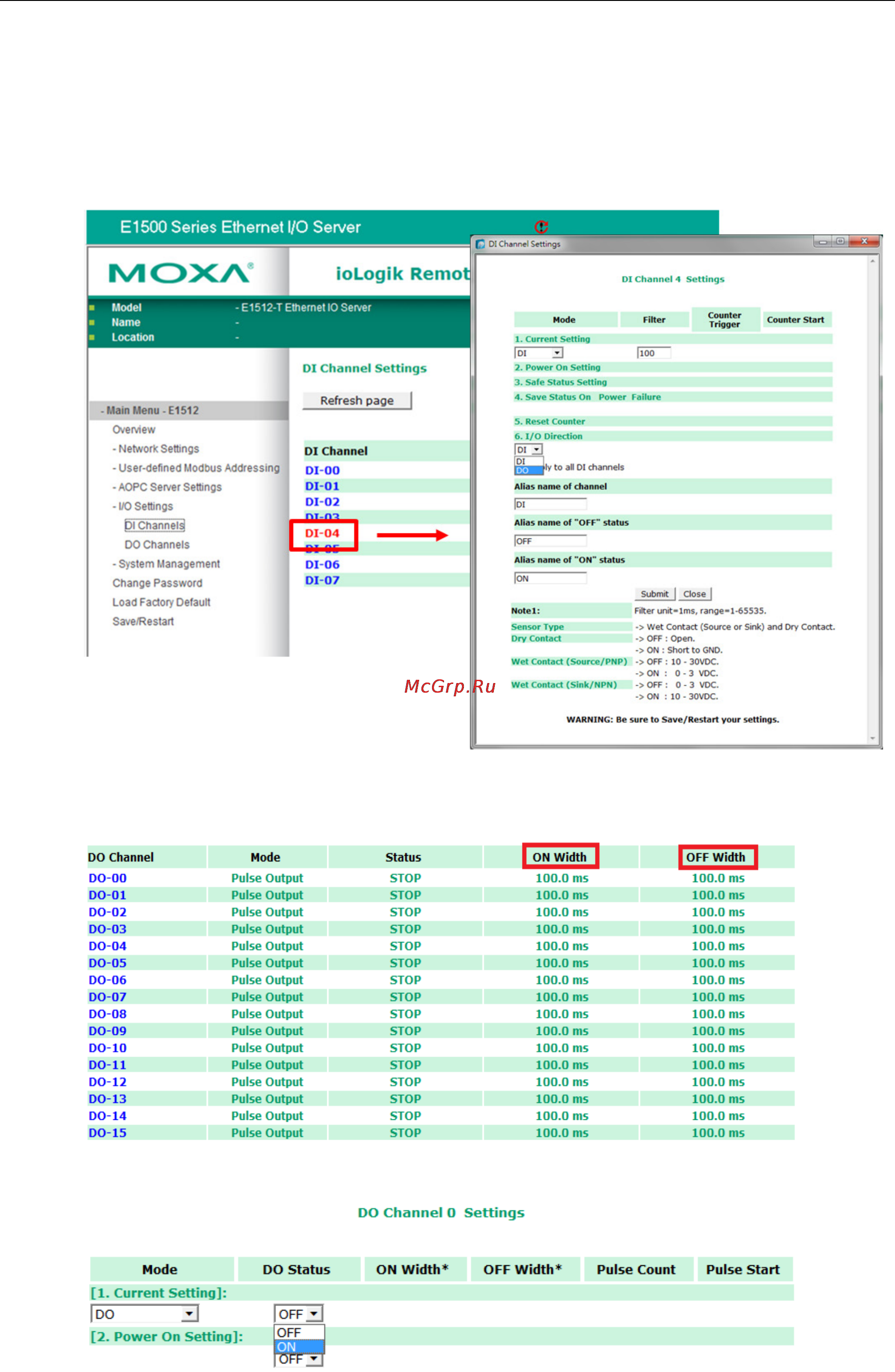

DO Channels
By default, all DIO channels are set to DI mode. If you want to use DO, configure the channels for DO on the
I/O settings
DI channels page. Click the DI that you want to configure for DO, and then when the DI
settings page pops up, and you can set the I/O direction to DO. When you click submit, the device will reboot
automatically and DIO will be configured as a DO.
On the I/O Setting DO (Digital Output) Channels page, you can configure each DO channel by clicking
on the channel.
DO Channels can operate in DO mode and are either on or off.
