Moxa ioLogik E1512-M12-T [40/62] Mass deployment import
![Moxa ioLogik E1512-M12-T [40/62] Mass deployment import](/views2/1201153/page40/bg28.png)
ioLogik E1500 Series Using ioSearch
4-9

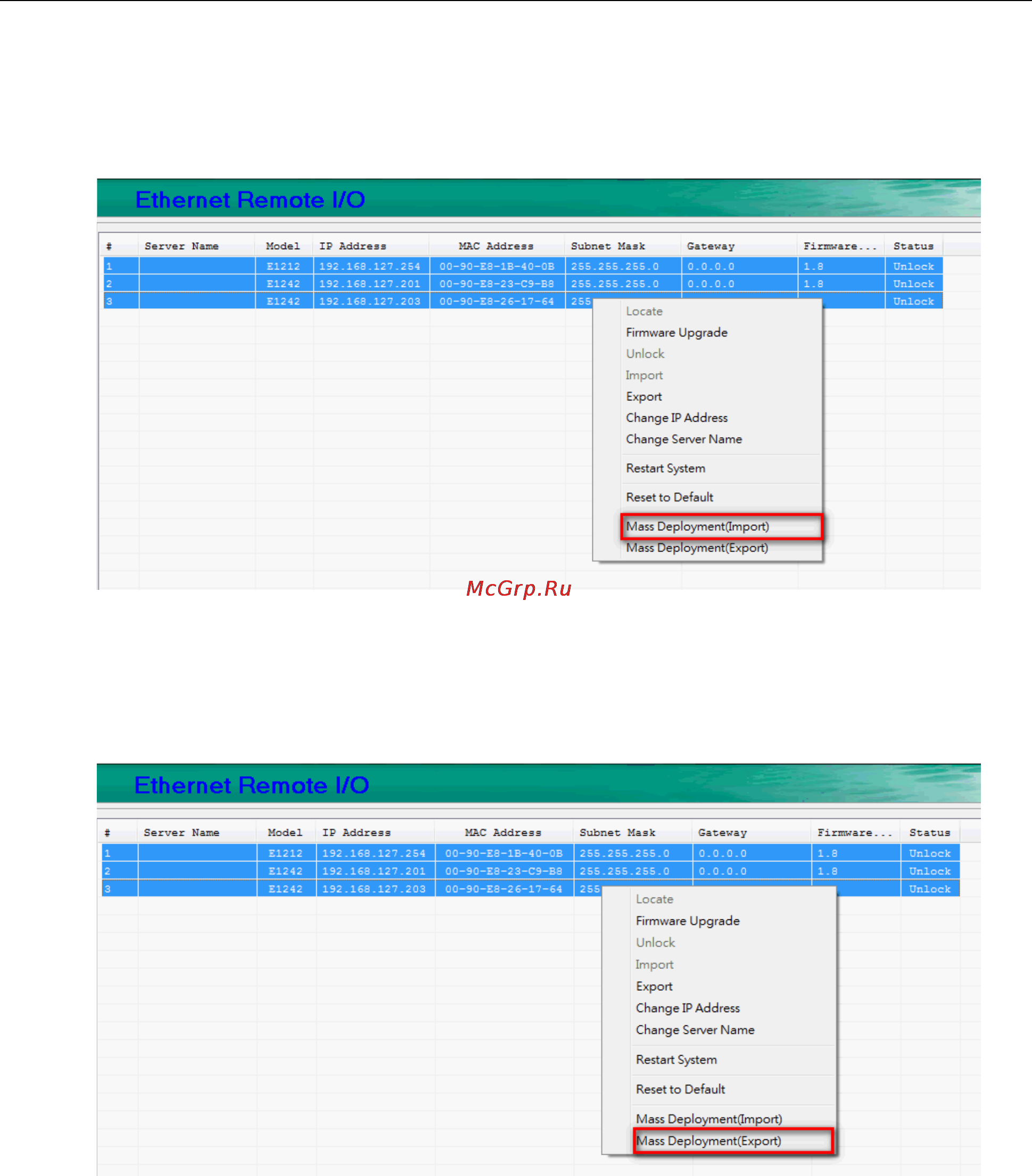

Mass Deployment (Import)
Users can import E1500 series module information via ioSearch. Select this command to reload a configuration
from an exported .CSV file.
Mass Deployment (export)
Users can export E1500 series module information via ioSearch. The export file format will be
E1500_Series_List.
