ioLogik E1500 Series Using ioSearch
4-3
Main Items
System
Several operations are possible from the System menu.

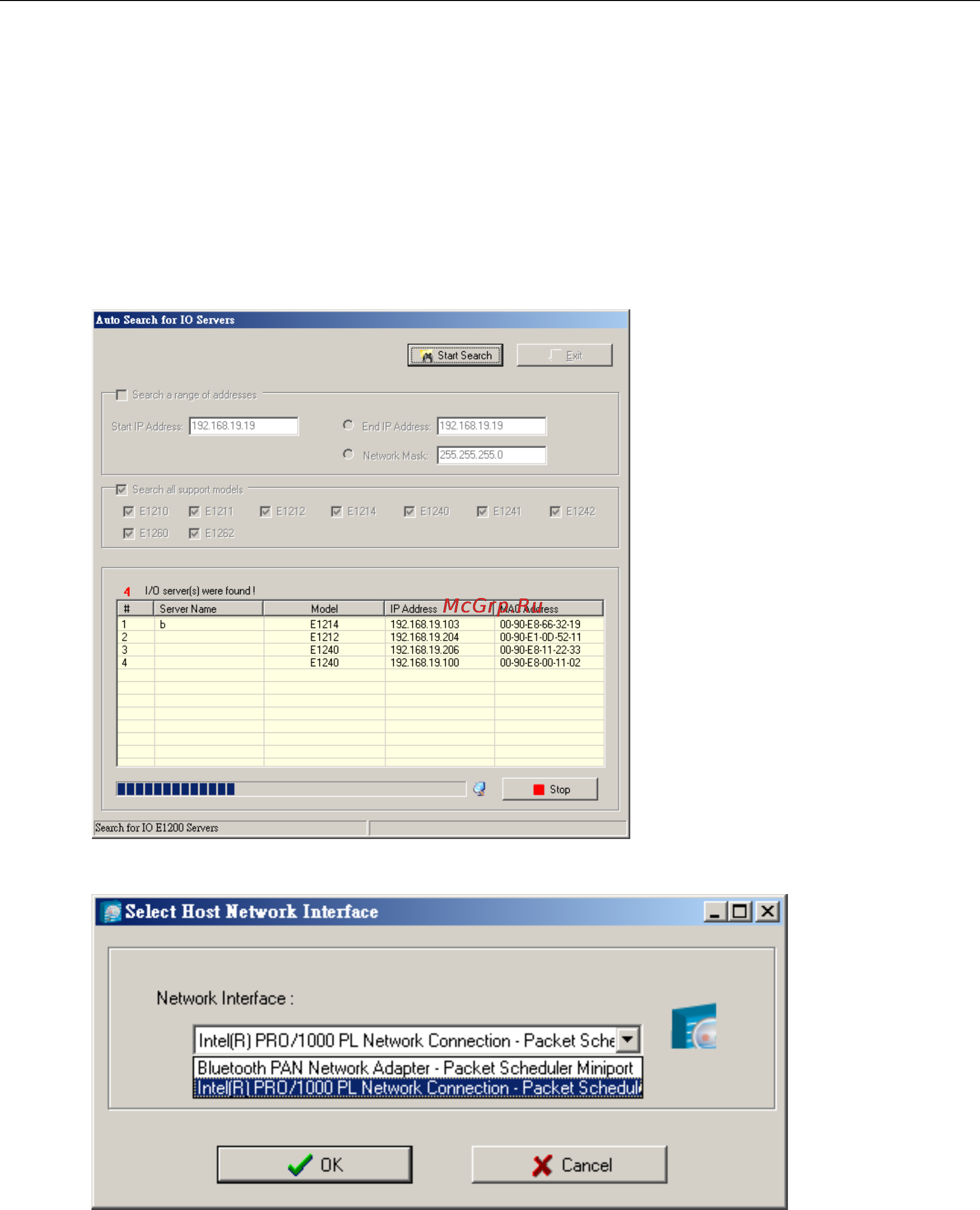

Auto Scan Active Ethernet I/O Servers will search for ioLogik servers on the network. When connecting for
the first time or recovering from a network disconnection, you can use this command to find I/O servers that
are on the network.
Network Interface allows you to select a network to use if the PC has multiple network adaptors installed.
