ioLogik W5300 Planning and Assistance
5-5

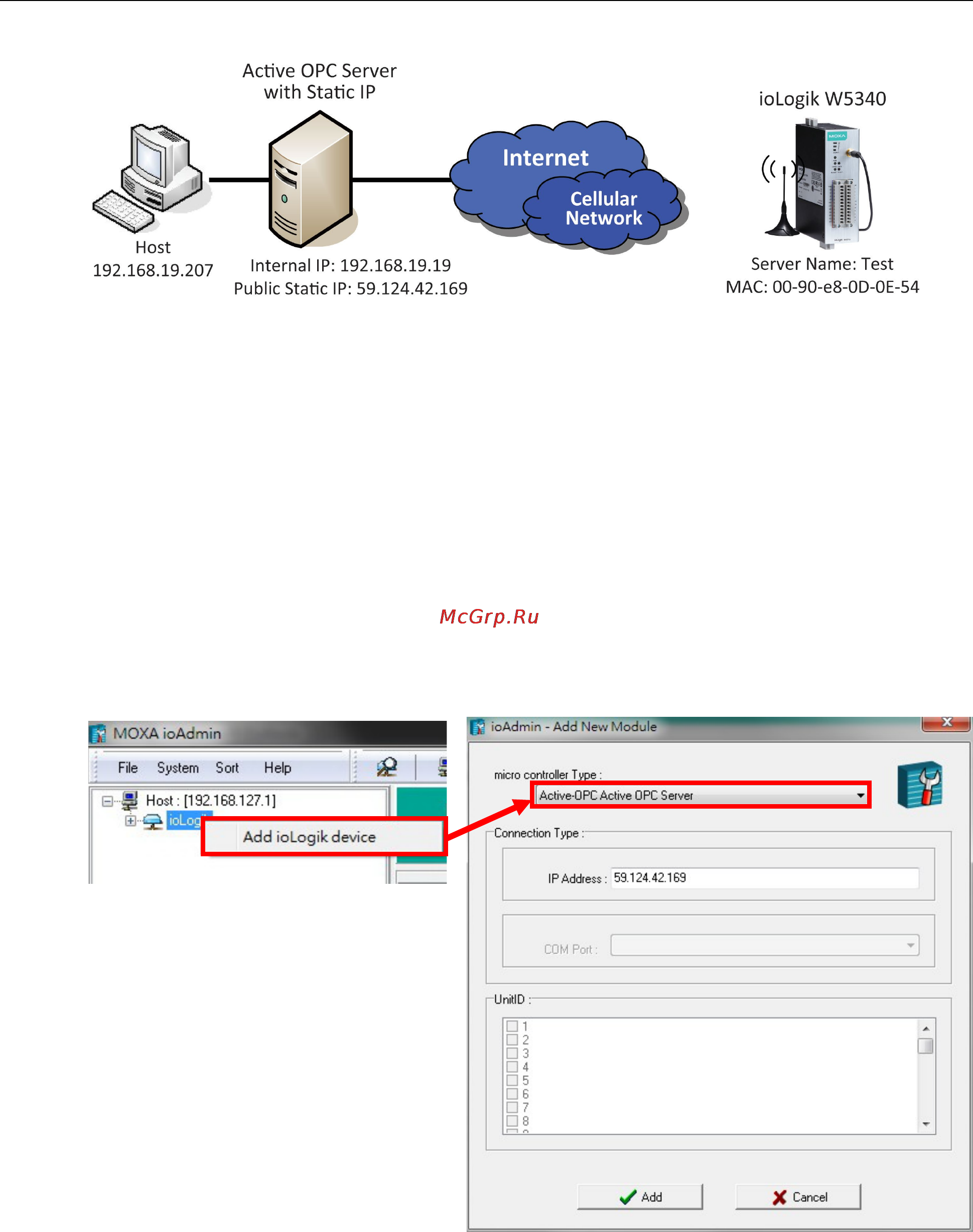

Diagram:
Implementation:
Step 1: Following the instructions from Chapter 2, insert a SIM card and connect the sensors.
Step 2: Install and run ioAdmin on the remote host.
Step 3: Connect the host to the ioLogik W5340 over the Ethernet console.
Step 4: Configure the Cellular settings, including the Dial-up settings and Operation Modes.
Step 5: Enter the host’s server address on the Active Tags panel, as the Active OPC Server address.
Step 6: Install the AOPC Server on a PC with a static IP address, and ensure the IP address of the AOPC server
is available and accessible from the remote ioLogik.
Step 7: Before starting the Active OPC server, make sure that any local routers or firewalls which it is running
behind are configured to forward TCP ports 9900, 9500, 9300, and 502.
Step 8: Start ioAdmin and add Active OPC server manually.
Note: Selecting “AOPC” from the broadsearch menu is also OK if the AOPC and the ioAdmin are
installed on the same PC or the same local network.
