ioLogik W5300 The ioAdmin Utility
3-37

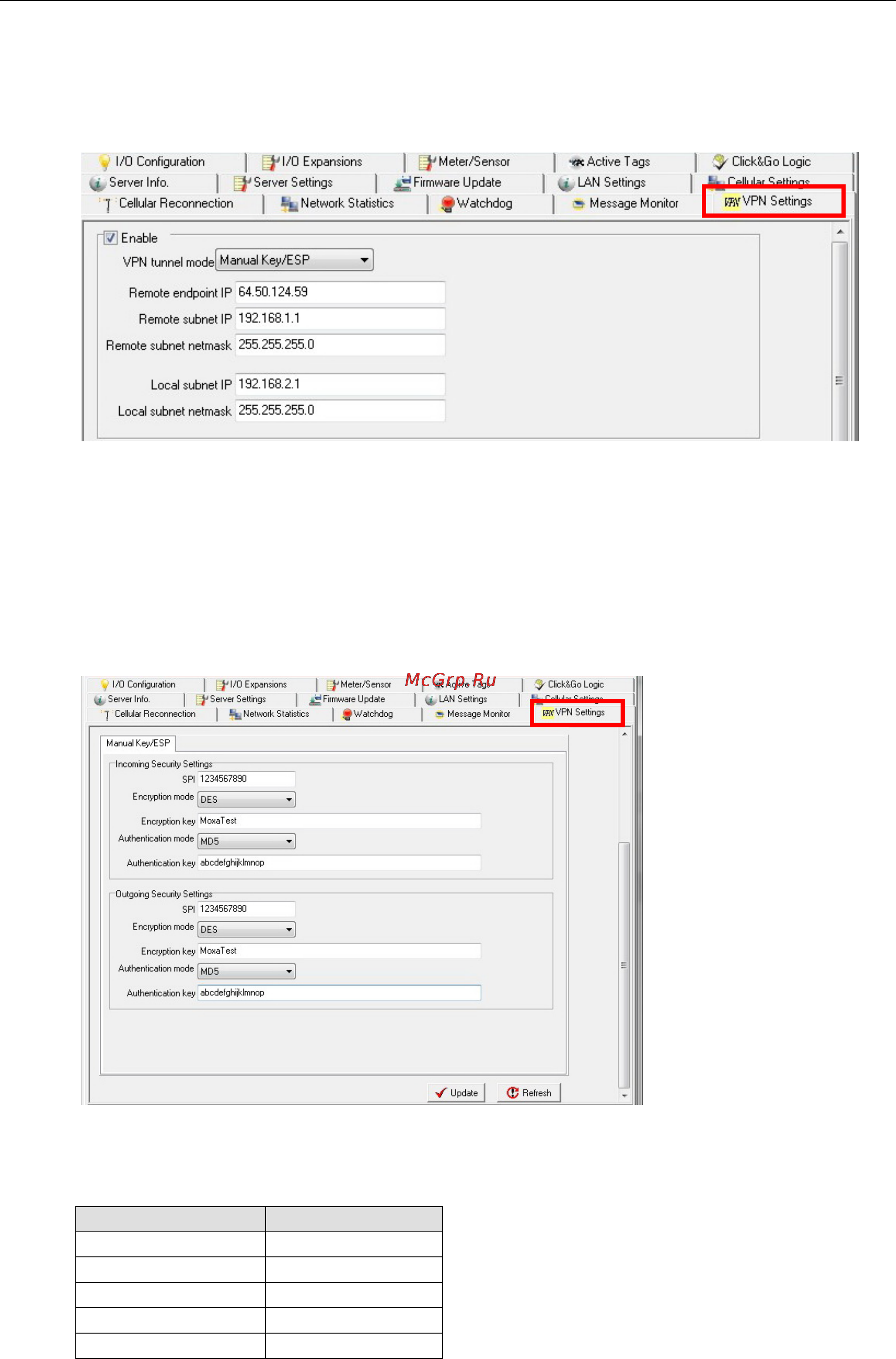

ioAdmin VPN Settings Tab
General Settings
VPN Tunnel Mode: Manual Key/ESP or ISAKMP/PSK selection
Remote Endpoint IP: Enter the WAN IP of the remote VPN server endpoint
Remote Subnet IP: Enter the remote VPN server subnet (LAN) IP of the remote network
Remote Subnet netmask: Enter the remote VPN server subnet netmask of the remote network
Local subnet IP: Enter the ioLogik W5300-HSPA subnet (LAN) IP
Local Subnet netmask: Enter the ioLogik W5300-HSPA subnet netmask
Manual Key/ESP
SPI: Sets the VPN manual key incoming/outgoing SPI between 257 and 4294967295
Encryption mode: Selects the incoming/outgoing encryption mode
Encryption key: Enters the incoming/outgoing encryption key
Encryption mode Length (Bytes)
DES 8
3DES 24
AES 128bit 16
AES 192bit 24
AES 256bit 32
