ioLogik W5300 The ioAdmin Utility
3-5

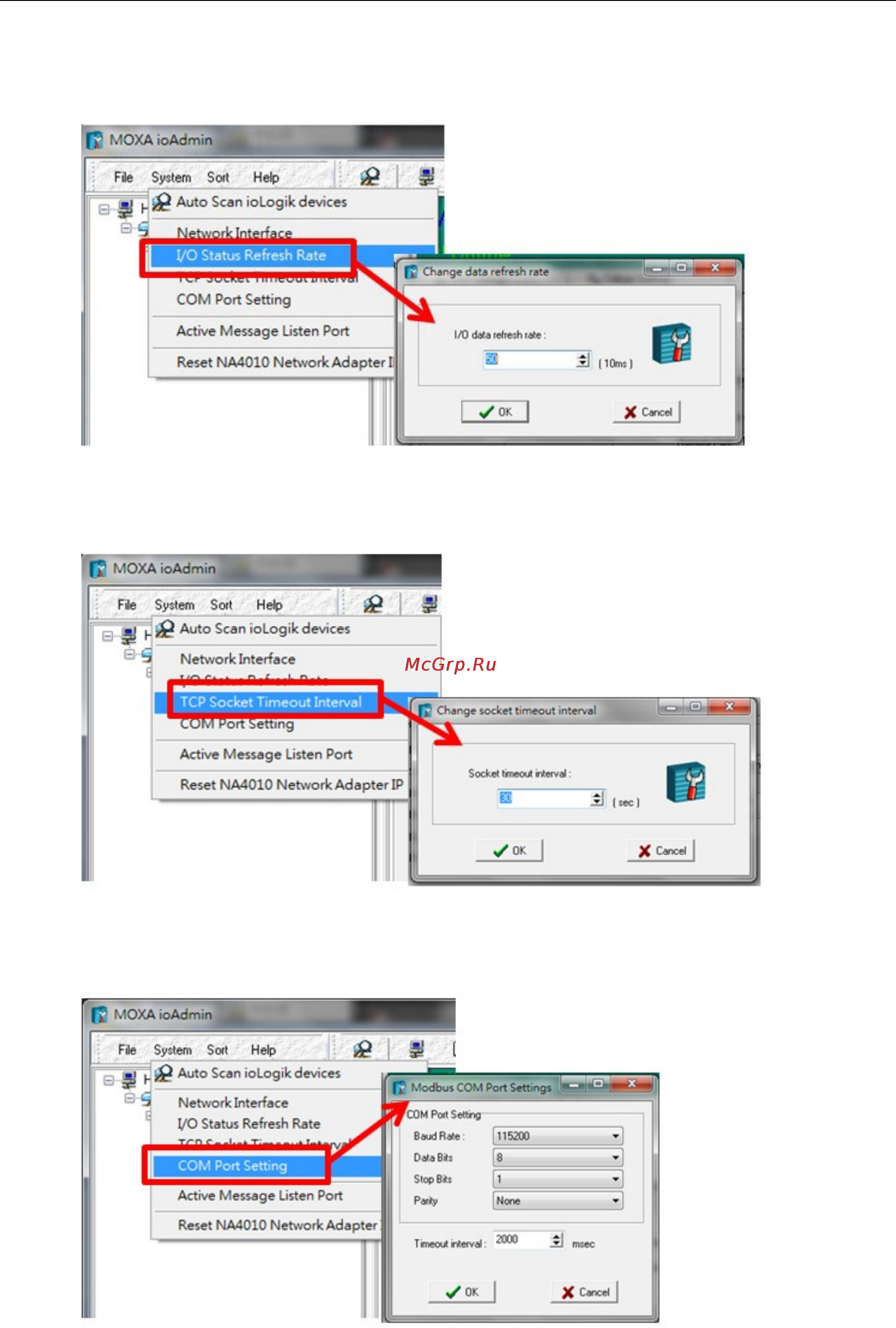

I/O Status Refresh Rate is used to adjust how often the ioLogik is polled for device status by the ioAdmin
utility. The current rate is displayed on the status bar at the bottom of the window.
Note: Higher sync rates result in higher loads on the network.
TCP Socket Timeout Interval allows you to set a timeout period when attempting to establish a connection
over a TCP socket. If the ioLogik cannot connect to a server within the specified time period, it will automatically
release the modbus/TCP connection to free up the port for the next attempt. (Default: 30 seconds)
COM Port Setting is used to set the default serial communications parameters so the ioAdmin utility may
establish a Modbus connection. The fields are baud rate, data bits, stop bits, parity, and timeout interval.
For most applications, this will involve connecting to ioLogik R-series devices.
