ioPAC 5500 Hardware Installation
2-8

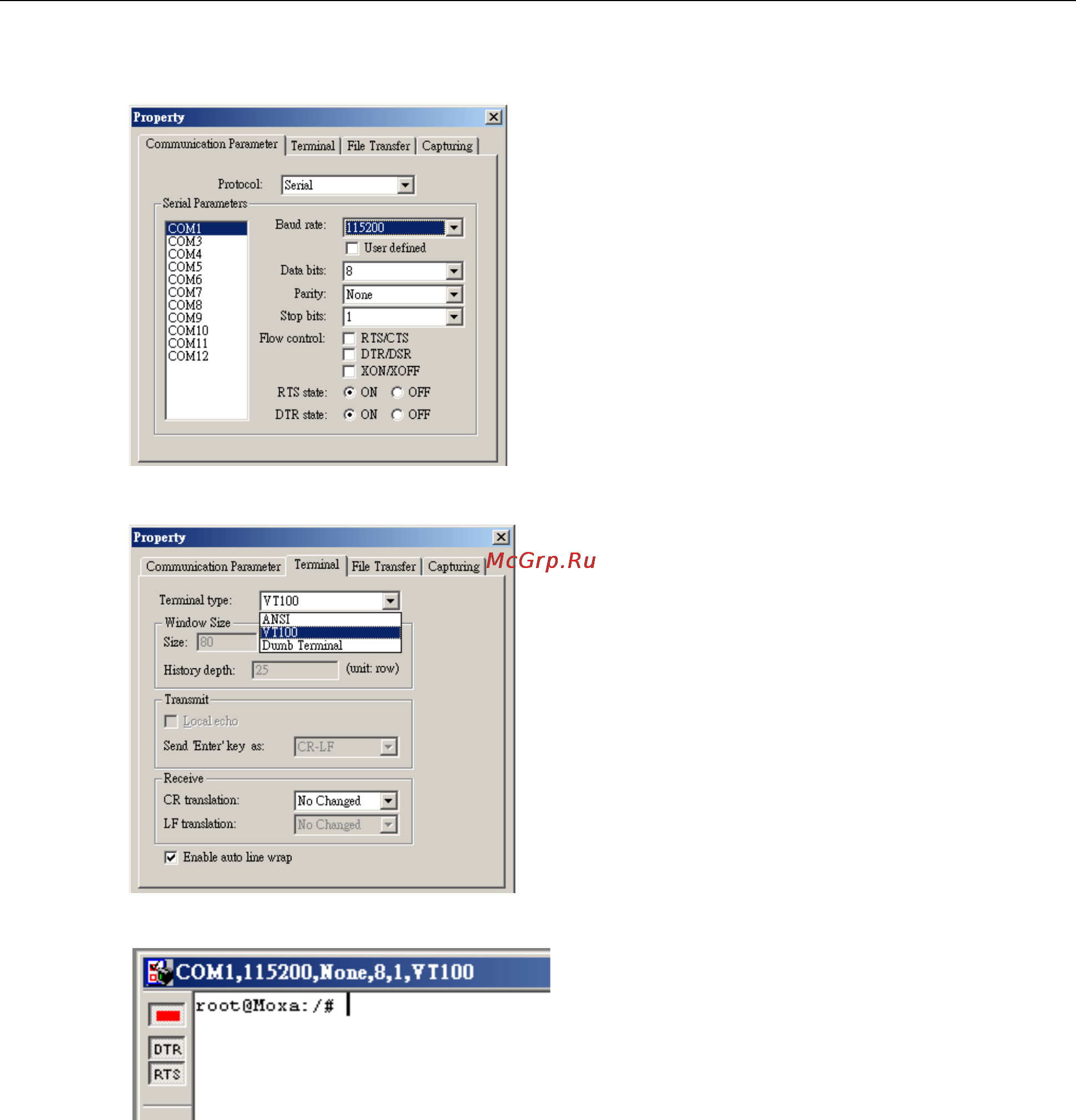

5. Specify which COM port is connecting to the Moxa RTU, and use the following configuration settings:
115200, 8, none, 1.
6. Click on the Terminal tab and configure the Terminal Type to VT100. Click OK to proceed.
7. The serial console will be displayed on the terminal screen.
Battery
The ioPAC RTU controller is equipped with one built-in, rechargeable VL2020 3V battery for the SRAM and one
3V rechargeable battery (model number VL-1220) for the Real Time Clock (RTC).
• Rechargeable battery (VL2020) for SRAM
Sustains at least 1 week without power supply
Capacity: 20 mAh
Typical consumption (@ 25°C): 4 μA
5-year warranty
• Rechargeable battery (VL-1220) for RTC
Sustains power for at least 1 week without power supply
Capacity: 7 mAh
Typical consumption (@ 25°C): 2 μA
5-year warranty
