ioPAC 5500 Hardware ioPAC 5500 Hardware Introduction
3-8

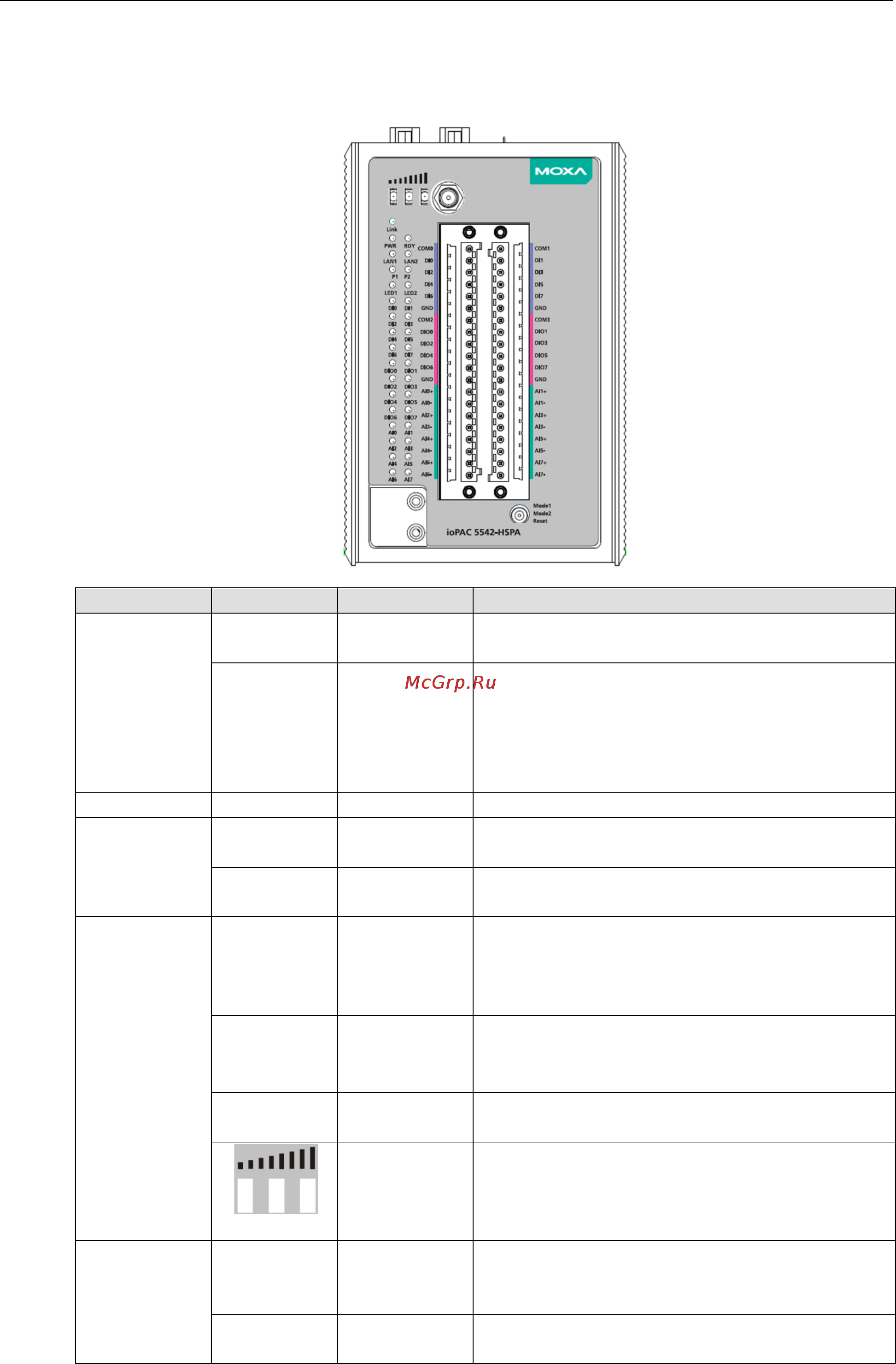

ioPAC 5500 LED Indicators
There are 9 LEDs on the ioPAC controller.
Category Label Usage
System
PWR System Power On: Power On
Off: Power Off
RDY System (Kernel)
Ready
Green: System Ready
Blinking Green: System is booting up
Red: System error, firmware upgrade, or reset
procedure underway
Blinking Red: Factory reset triggered
C/C++ Version LED1, LED2 User-Defined User-Defined
IEC Version
R/S
Run/Stop Mode Green: The CPU is executing PRDK.
OFF: The CPU has stopped / is not executing PRDK.
ERR
Error Red: System / I/O / services error
OFF: No error (auto update if error fixes)
Communication
LAN1, LAN2 Ethernet
Connection
Green: 100Mb
Amber: 10Mb
Blinking: data transmitting
Off: disconnected
P1, P2 Serial
Connection
Green: Transmitting data (Tx)
Amber: Receiving data (Rx)
Off: disconnected
Link Cellular
Connection
Green: ISP/IP retrieved
Off: ISP disconnected
Cellular Signal 1 & 2 & 3: ON (RSSI >= 24)
1 & 2: ON (18 <= RSSI < 24)
1: ON Only (12 <= RSSI < 18)
Off: No Signal (RSSI < 12)
I/O DIn, DIOn Digital Input /
Output Indicator
Green: Channel ON or counter signal in/pulse signal
output (scan rate: 1 second)
Off: Channel OFF or No Counter/Pulse Signal
AIn Analog Input
Indicator
Green: Channel Enabled
Red: Burn out & wire off when 4-20 mA current mode
