ioPAC 5500 Hardware ioPAC 5500 Hardware Introduction
3-11

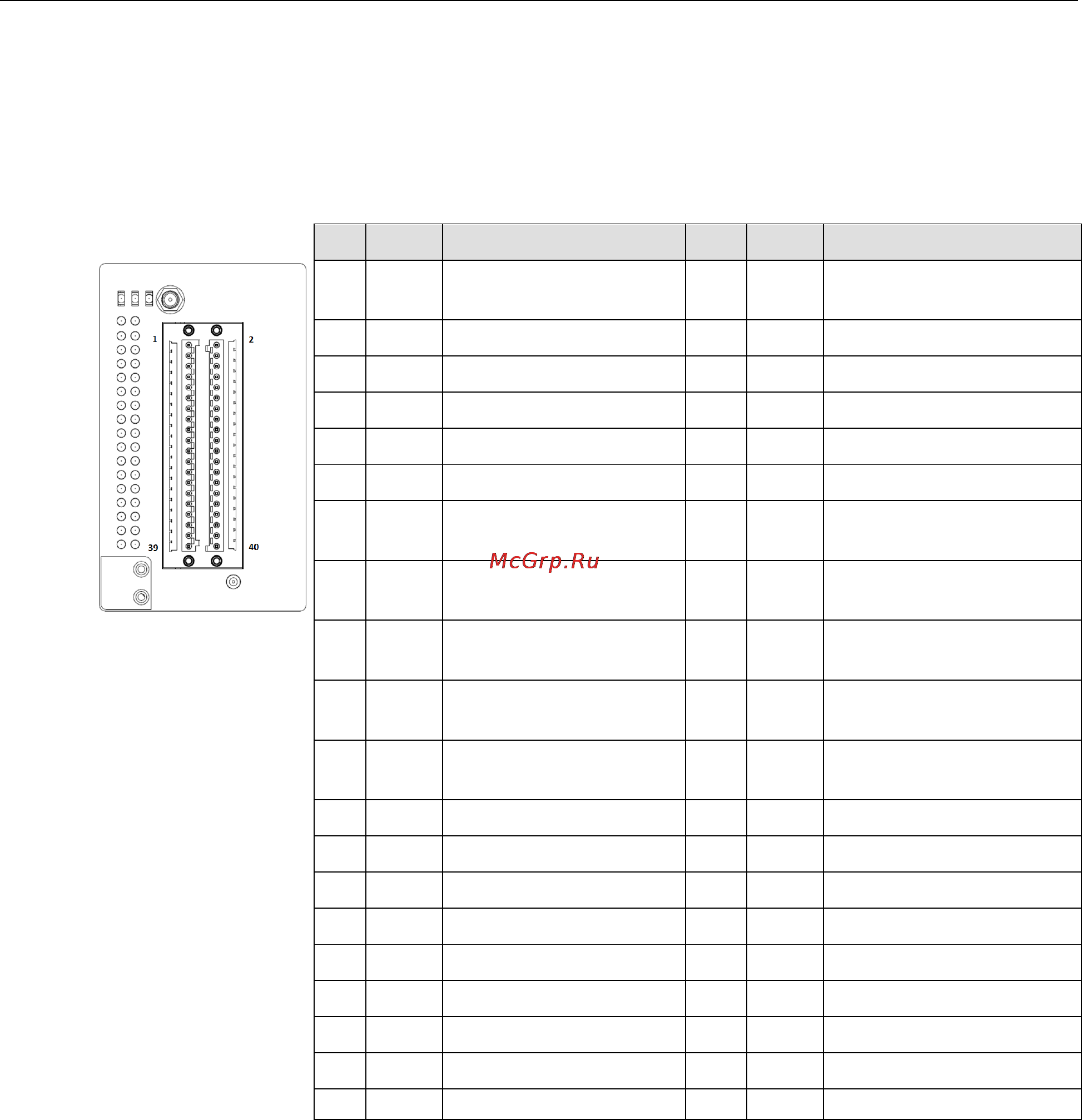

Pin assignment and I/O wiring guide
The following is the ioPAC 5542 RTU controller’s pin assignment and I/O wiring guide.
Pin Assignment
Pin Name Description Pin Name Description
1 COM0 COM of DI0, DI2, DI4,
and DI6
2 COM1 COM of DI1, DI3, DI5, and
DI7
3 DI0 Digital Input Channel 0 4 DI1 Digital Input Channel 1
5 DI2 Digital Input Channel 2 6 DI3 Digital Input Channel 3
7 DI4 Digital Input Channel 4 8 DI5 Digital Input Channel 5
9 DI6 Digital Input Channel 6 10 DI7 Digital Input Channel 7
11 GND Ground 12 GND Ground
13 COM2 COM of DIO0, DIO2,
DIO4, and DIO6
14 COM3 COM of DIO1, DIO3, DIO5,
and DIO7
15 DIO0 Digital Input/Output
Channel 0
16 DIO1 Digital Input/Output
Channel 1
17 DIO2 Digital Input/Output
Channel 2
18 DIO3 Digital Input/Output
Channel 3
19 DIO4 Digital Input/Output
Channel 4
20 DIO5 Digital Input/Output
Channel 5
21 DIO6 Digital Input/Output
Channel 6
22 DIO7 Digital Input/Output
Channel 7
23 GND Ground 24 GND Ground
25 AI0+ Analog Input Channel 0 +
26 AI1+ Analog Input Channel 1 +
27 AI0- Analog Input Channel 0 - 28 AI1- Analog Input Channel 1 -
29 AI2+ Analog Input Channel 2 +
30 AI3+ Analog Input Channel 3 +
31 AI2- Analog Input Channel 2 - 32 AI3- Analog Input Channel 3 -
33 AI4+ Analog Input Channel 4 +
34 AI5+ Analog Input Channel 5 +
35 AI4- Analog Input Channel 4 - 36 AI5- Analog Input Channel 5 -
37 AI6+ Analog Input Channel 6 +
38 AI7+ Analog Input Channel 7 +
39 AI6- Analog Input Channel 6 - 40 AI7- Analog Input Channel 7 -
