OnCell G2111/G2151I Series GPRS Connection
6-6
ATTENTION
Make sure that the RS
-232 port of the OnCell G2111/G2151I Series modem is connected. For the OnCell
G2151I, make sure DIP switch 1 is set to ON.

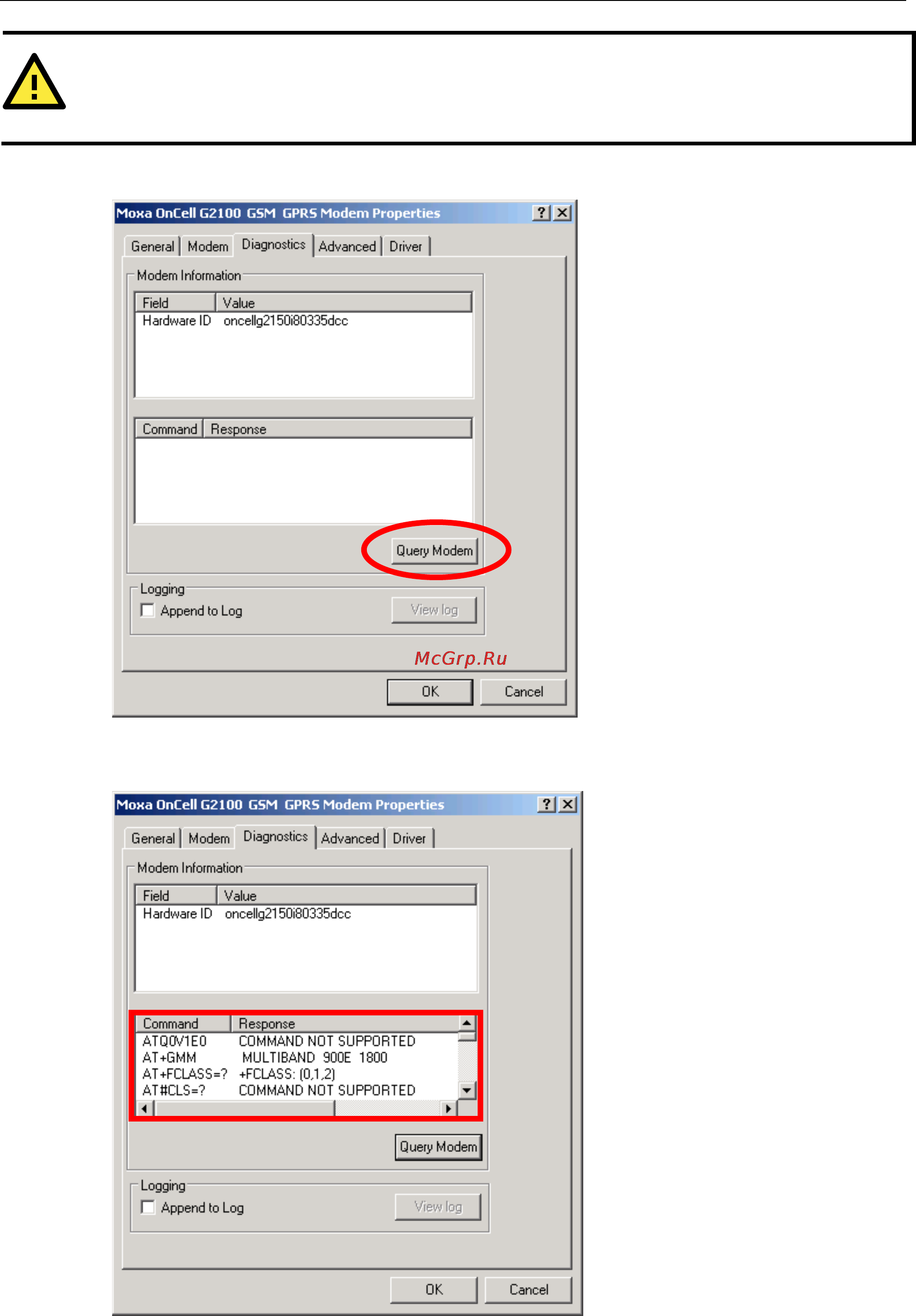

2. On the Diagnostics tab, click Query Modem.
3. If the query is successful, you will be able to see commands that are sent to the modem and the modem's
responses.
