OnCell G2111/G2151I Series GPRS Connection
6-8
ATTENTION
The APN should be entered between the displayed brackets. Remember that the APN is case sensitive.
Note that
“IP” should be written in all capital letters.
For a list of APNs, please refer to the APN List on the Document and Software CD.
3. Click OK to close the Properties window.

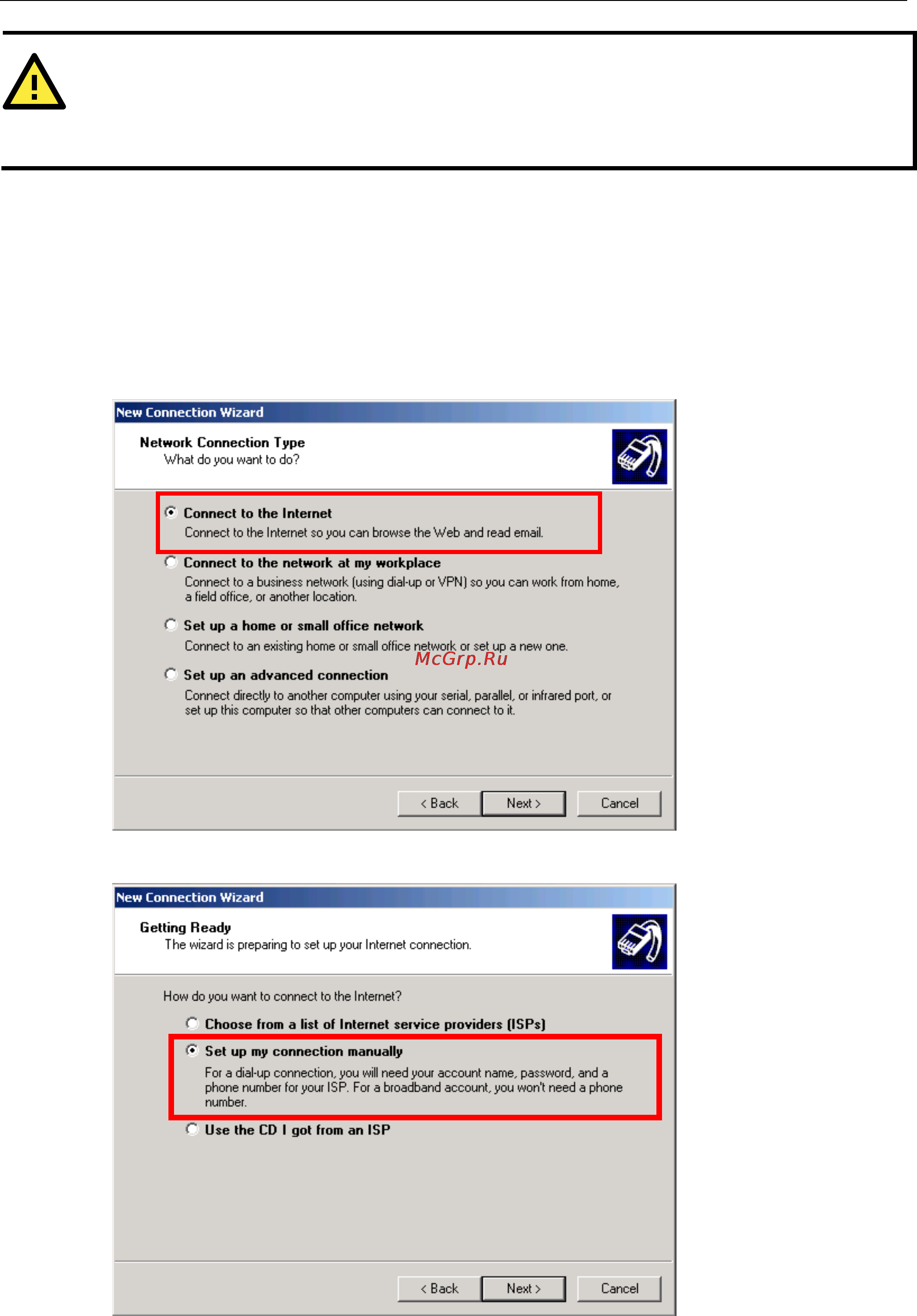

Adding Windows DUN Entry
The following instructions explain how to add a Windows Dial-up Networking entry.
1. In the Control Panel, open Network Connections and click Create a new connection.
2. When the New Connection Wizard window opens, select Connect to the Internet and click Next.
3. Select Set up my connection manually and click Next.
4. Select Connect using a dial-up modem and click Next.
