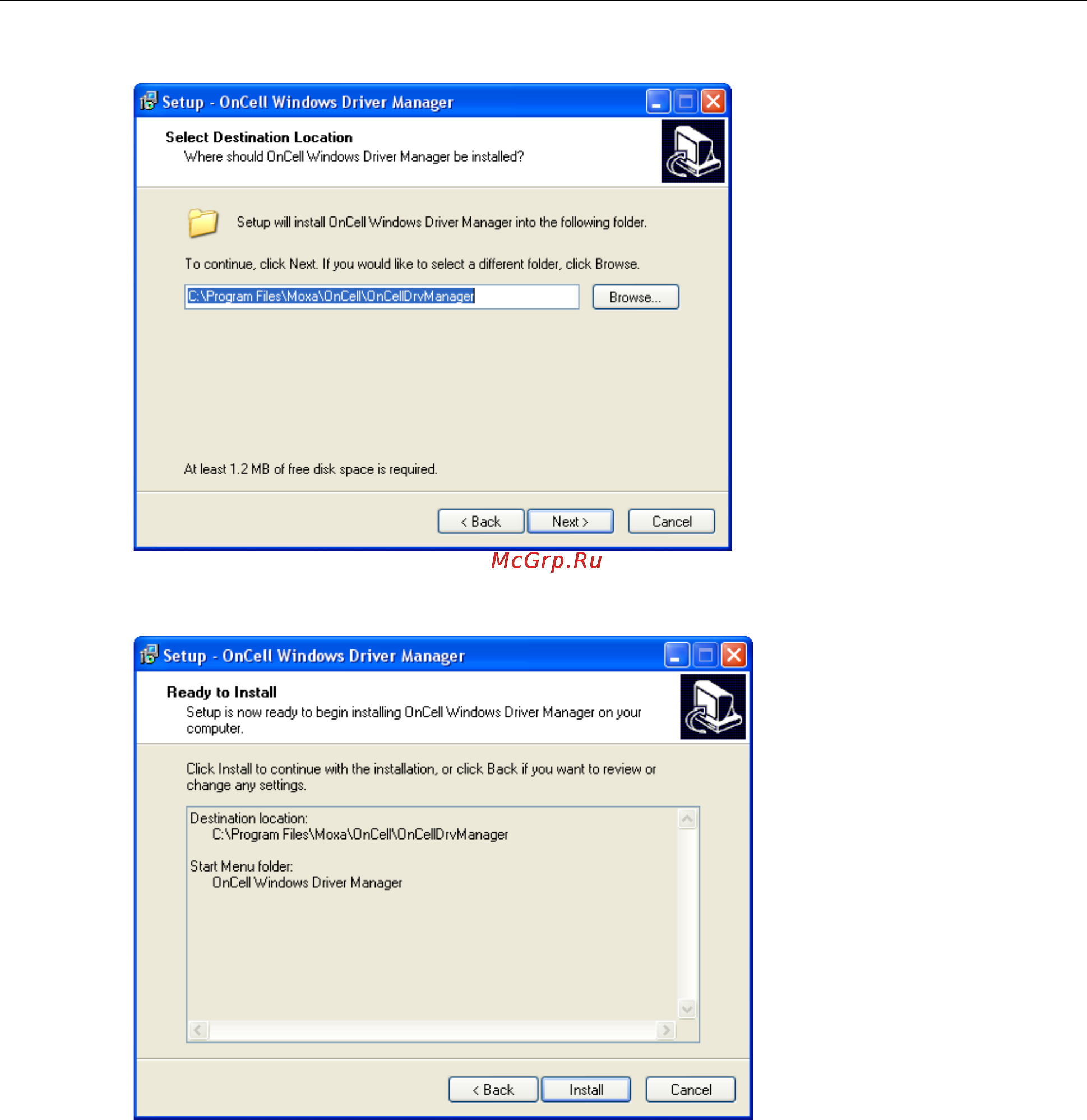

OnCell G3100 Series Software Installation/Configuration
14-3
Click Next to install program files to the default directory, or click Browse to select an alternate location.
3. Click Next to install the program’s shortcuts in the appropriate Start Menu folder.
4. Click Next to proceed with the installation. The installer then displays a summary of the installation options.
