OnCell G3100 Series Configuring the Cellular-Enabling Ethernet Device
9-3
OnCell to Host via Cellular
This section explains the configuration for when the Ethernet device acts as the Client. In order for the Ethernet
device to send data to the host, it must set the OnCell as a gateway. This function will automatically detect the
OnCell’s IP address by DHCP enable (default=enable) Please refer page 58 for DHCP function explaination.

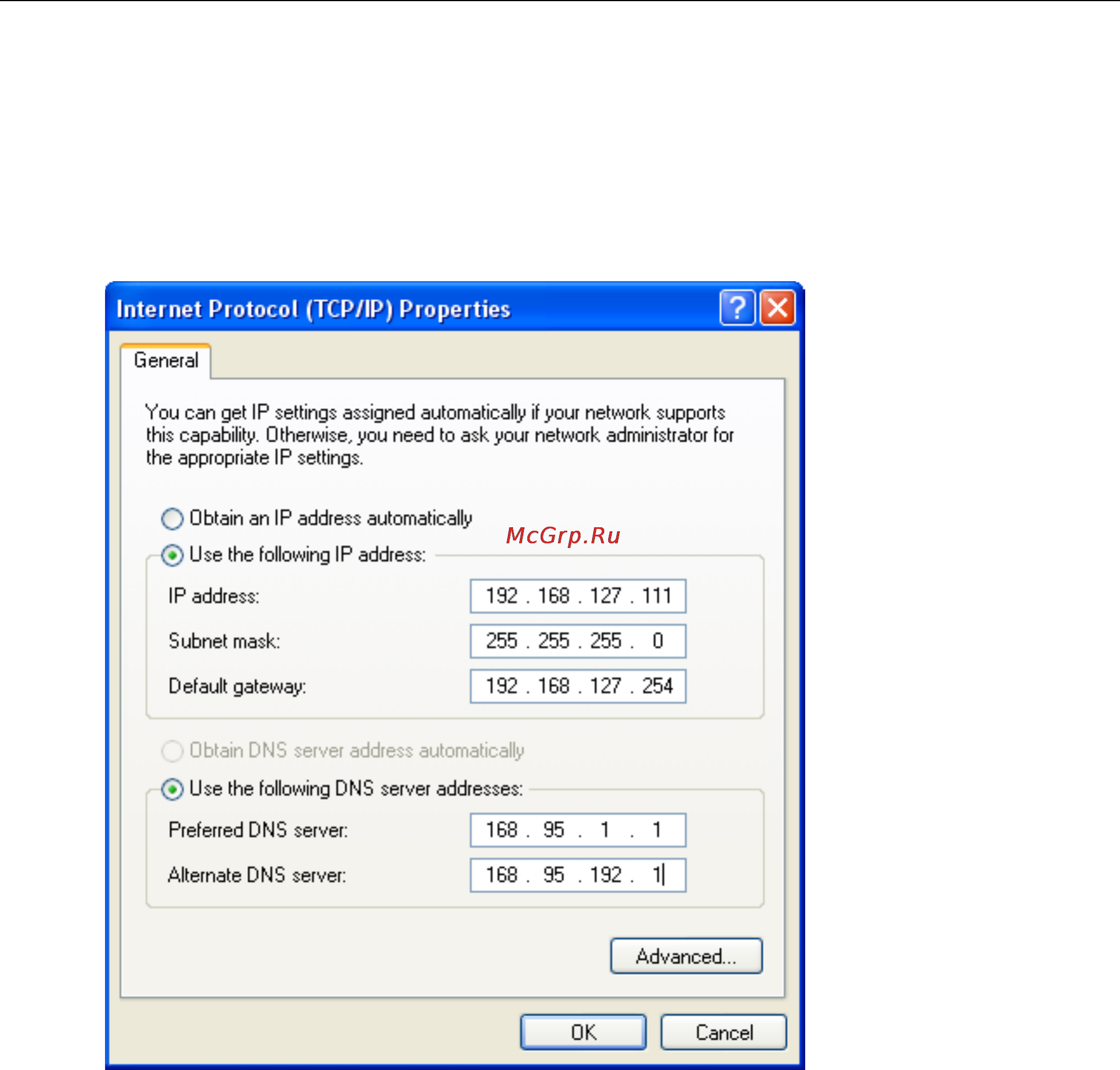

Alternatively, you can manually enter the Internet Protocol (TCP/IP) properties, and DNS server addresses in
the Ethernet device.
