VPort 56-2MP Introduction
1-5

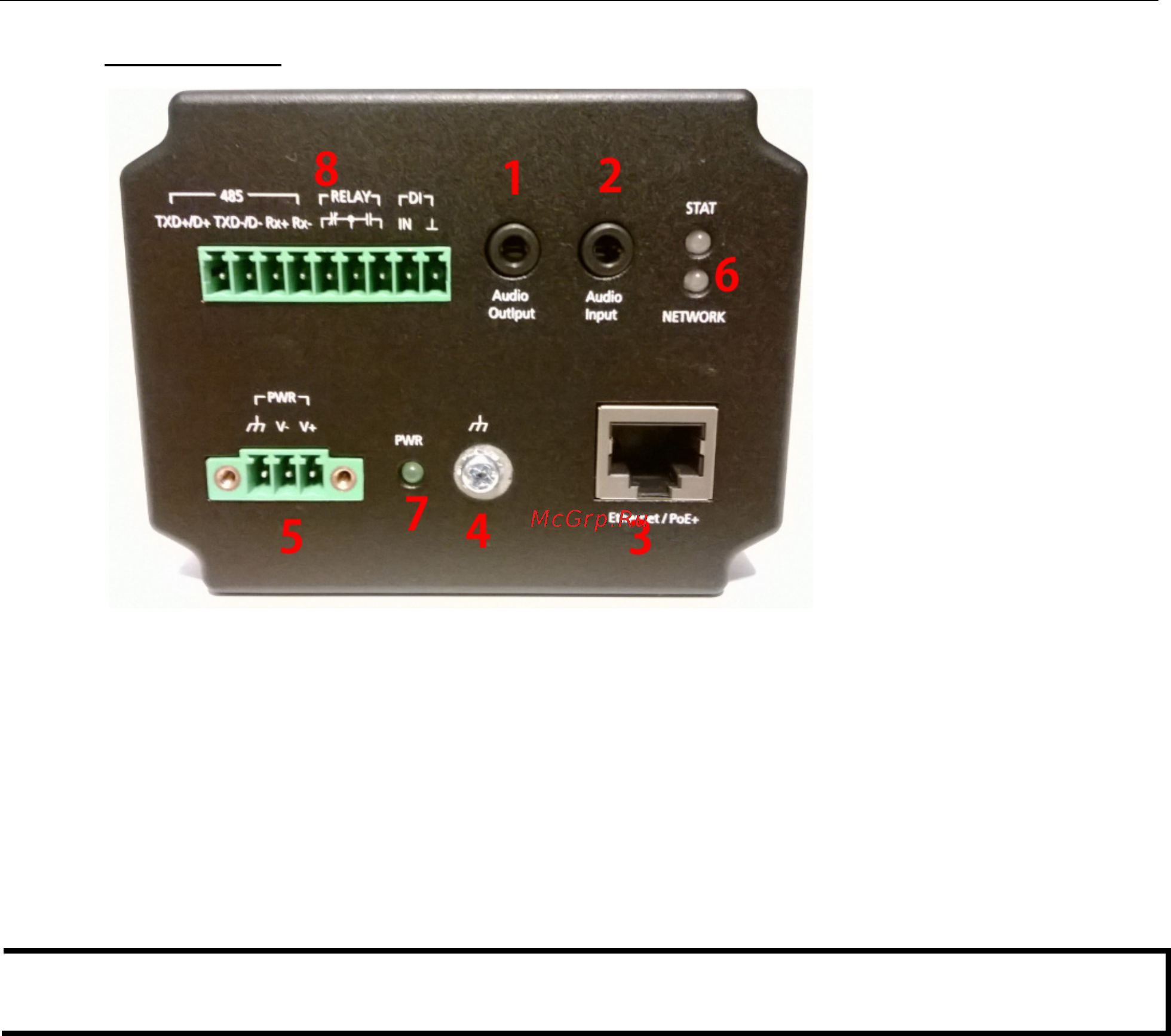

Back Panel View
1. Phone jack for audio output.
2. Phone jack for audio input.
3. RJ45 port for PoE/non-PoE connection
4. Ground screw for connecting the grounding wire
5. 3-pin terminal block for the power input
6. LED indicator to show network and system status. Green indicates normal operation.
7. LED indicator to show power status. Green indicates normal operation.
8. 9-pin terminal block for RS-485 and DI and relay
NOTE
The VPort 56
-2MP can be powered by a 12-32 VDC or 18-30 VAC power input, or Power over Ethernet (PoE+
,
802.3a
t). For power redundancy, use DC or AC power together with PoE.
