VPort 56-2MP Getting Started

2-4

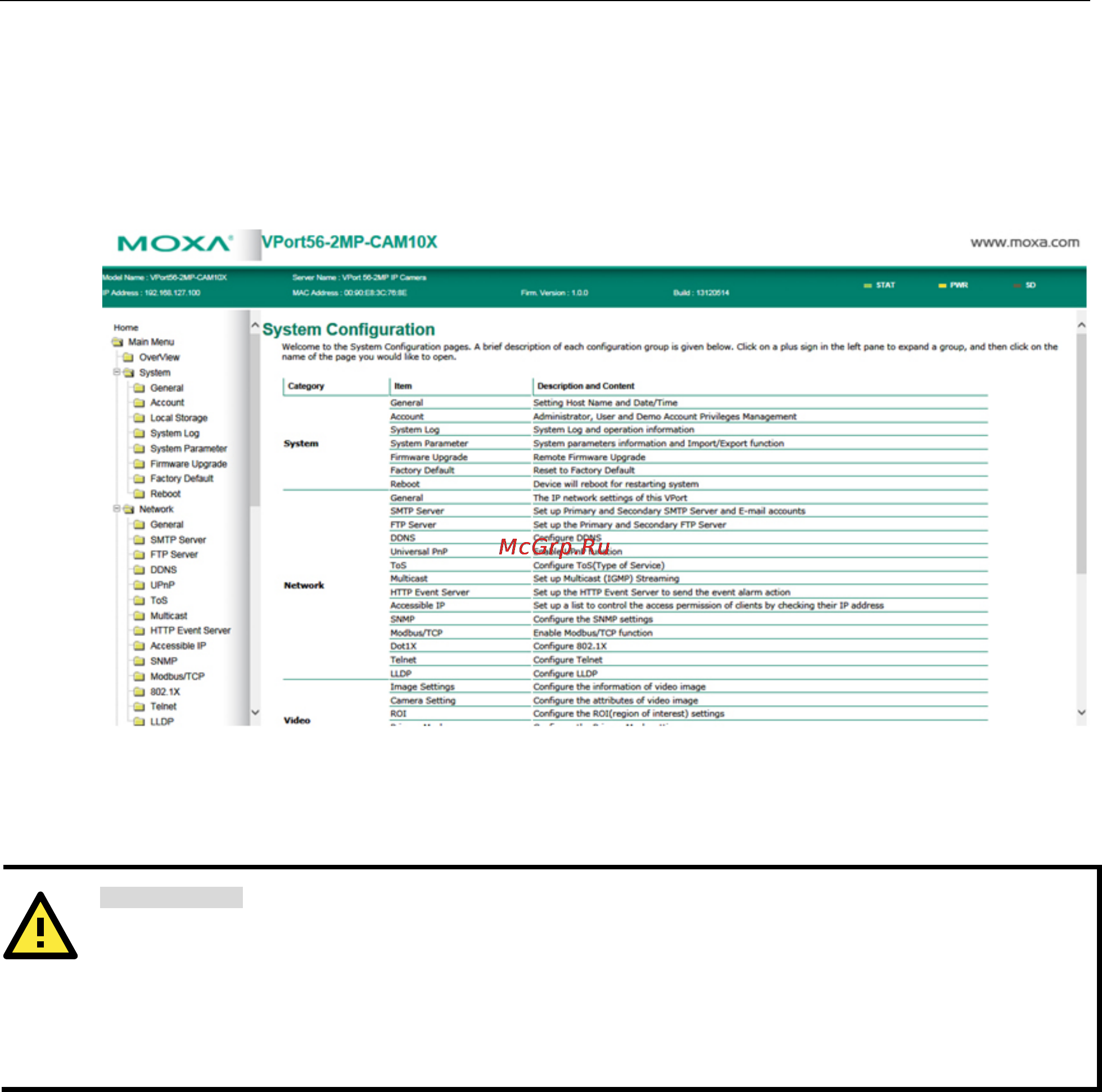

Step 5: Access the VPort’s system configuration.

Click on System Configuration to access the overview of the system configuration to change the

configuration. Model Name, Server Name, IP Address, MAC Address, and Firmware Version appear in

the green bar near the top of the page. Use this information to check the system information and installation.

For details of each configuration, check the User’s Manual on the software CD.

Wiring Requirements

SAFETY FIRST

•

Be sure to disconnect the power cord before installing and/or wiring your Moxa VPort 56-2MP.

•

Calculate the maximum possible current in each power wire and common wire. Observe all

electrical codes

dictating the maximum current allowable for each wire size.

•

If the current goes above the maximum ratings, the wiring could overheat, causing serious damage to your

equipment.

You should also pay attention to the following:

• Use separate paths to route wiring for power and devices. If power wiring and device wiring paths must

cross make sure the wires are perpendicular at the intersection point.

NOTE: Do not run signal or communications wiring and power wiring in the same wire conduit. To avoid

interference, wires with different signal characteristics should be routed separately.

• You can use the type of signal transmitted through a wire to determine which wires should be kept separate.

The rule of thumb is that wiring that shares similar electrical characteristics can be bundled together.

• Keep input wiring and output wiring separated.

• We strongly advise labeling the wiring to all devices in the system.
