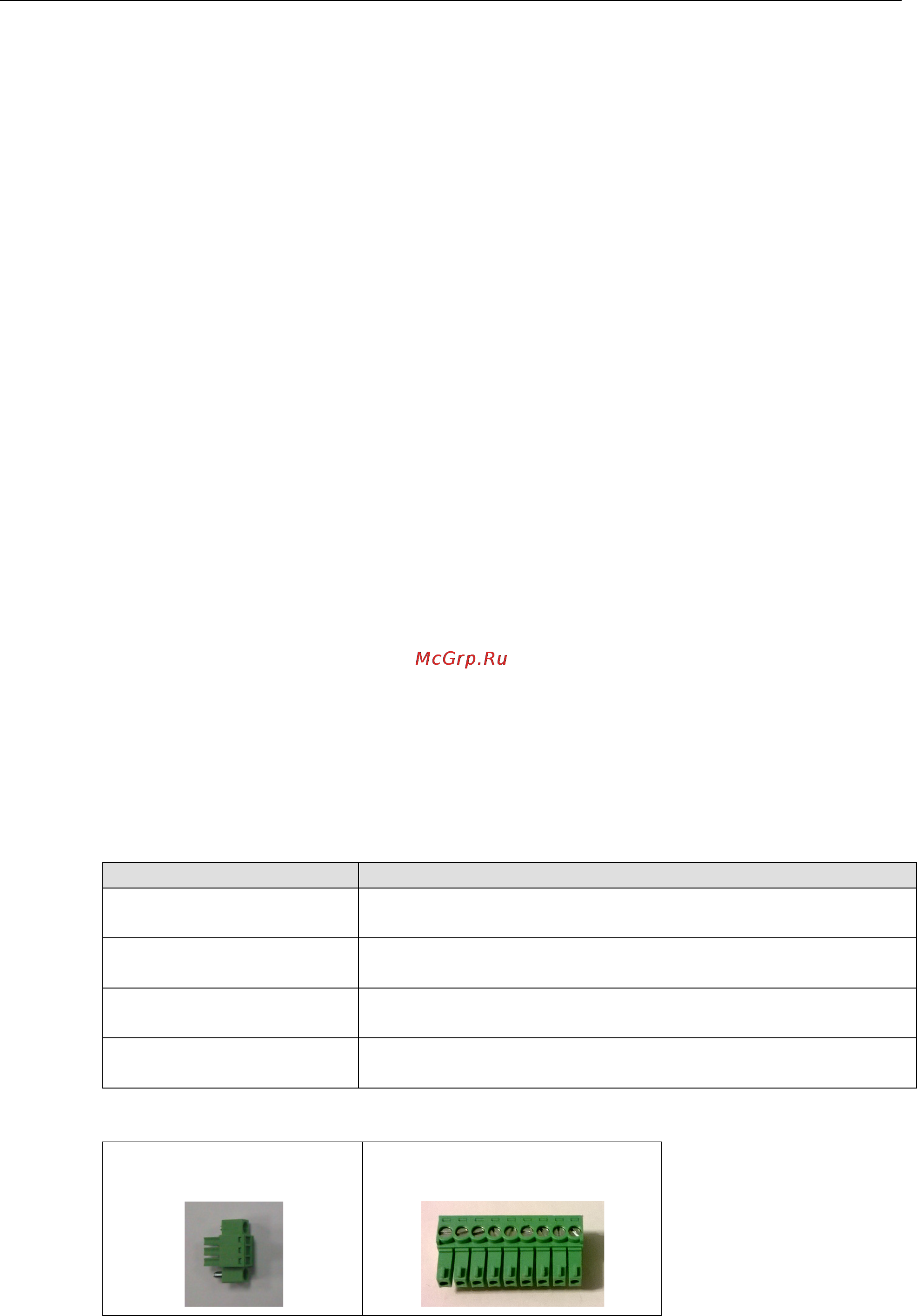

VPort 56-2MP Introduction
1-2
Overview
Rugged Design
The VPort 56-2MP series is the world’s first rugged IP camera that can withstand environmental temperatures
ranging from -40 to 75°C without cooling fan. It is an industrial-grade, H.264 box-type IP camera with Full HD
resolution (1920 x 1080), to enhance surveillance system efficiency while delivering state-of-the-art video
quality. Optional housing and PT scanner accessories are available for indoor and outdoor installation.
Superb Video Quality
The VPort 56-2MP is equipped with 10x optical zoom and a 16x digital zoom module, with a built-in removable
IR-cut filter and automatic color mode switching, the VPort 56-2MP Series is suitable for day-and-night use.
Highly-tuned ROI (Region of Interest), and 3DNR (3D Digital Noise Reduction) functions enable the VPort
56-2MP series to produce exceptionally clear images.
Convenient Installation
The VPort 56-2MP series is designed for indoor and outdoor applications that require operational reliability. It
is a unique and competitive camera in the IP CCTV market, with features such as high EMI/surge protection,
optional IP66 housing for rain/dust protection, and -40 to 75°C operation without requiring a heater or cooling
fan. This camera is available with PoE+ (Power over Ethernet, 802.3at) or with wired power input supporting
12/24 VDC or 24 VAC.
High Video Performance and Network Security
The VPort 56-2MP series can encode analog video into both H.264 and MJPEG video streams and can transmit
up to 3 independent video streams (2 in H.264, and 1 in MJPEG) simultaneously. Advanced video encoding
technology enables the camera to support up to 30 FPS for each of the H.264 and MJPEG streams. Advanced
network security functions, such as 802.1x and SSL/SSH, are also provided to prevent unauthorized access or
data hijacking, a critical feature for many surveillance applications.
Package Checklist
Moxa’s VPort 56-2MP Series is shipped with the following items. If any of these items is missing or damaged,
please contact your customer service representative for assistance.
• 1 × VPort 56-2MP (one of following models)
Standard model Description
VPort 56-2MP-CAM10X
Full HD zoom IP camera, RJ45 Ethernet port, 12/24 VDC or 24 VAC or PoE,
0 to 60°C
VPort 56-2MP-CAM10X-T
Full HD zoom IP camera, RJ45 Ethernet port, 12/24 VDC or 24 VAC or PoE,
-40 to 75°C
VPort 56-2MP-CAM10X -S-SC Full HD zoom IP camera, single-mode fiber Ethernet port, 12/24 VDC or 24
VAC, 0 to 60°C
VPort 56-2MP-CAM10X-S-SC-T Full HD zoom IP camera, single-mode fiber Ethernet port, 12/24 VDC or 24
VAC, -40 to 75°C
• Terminal block accessory package
3-pin terminal block for power
input
9-pin terminal block for RS-485 DX+
and DX-
• Quick installation guide
