Camera Setting

There are detailed camera parameters that can be configured to create a better image quality, with settings

dependent on the environment.

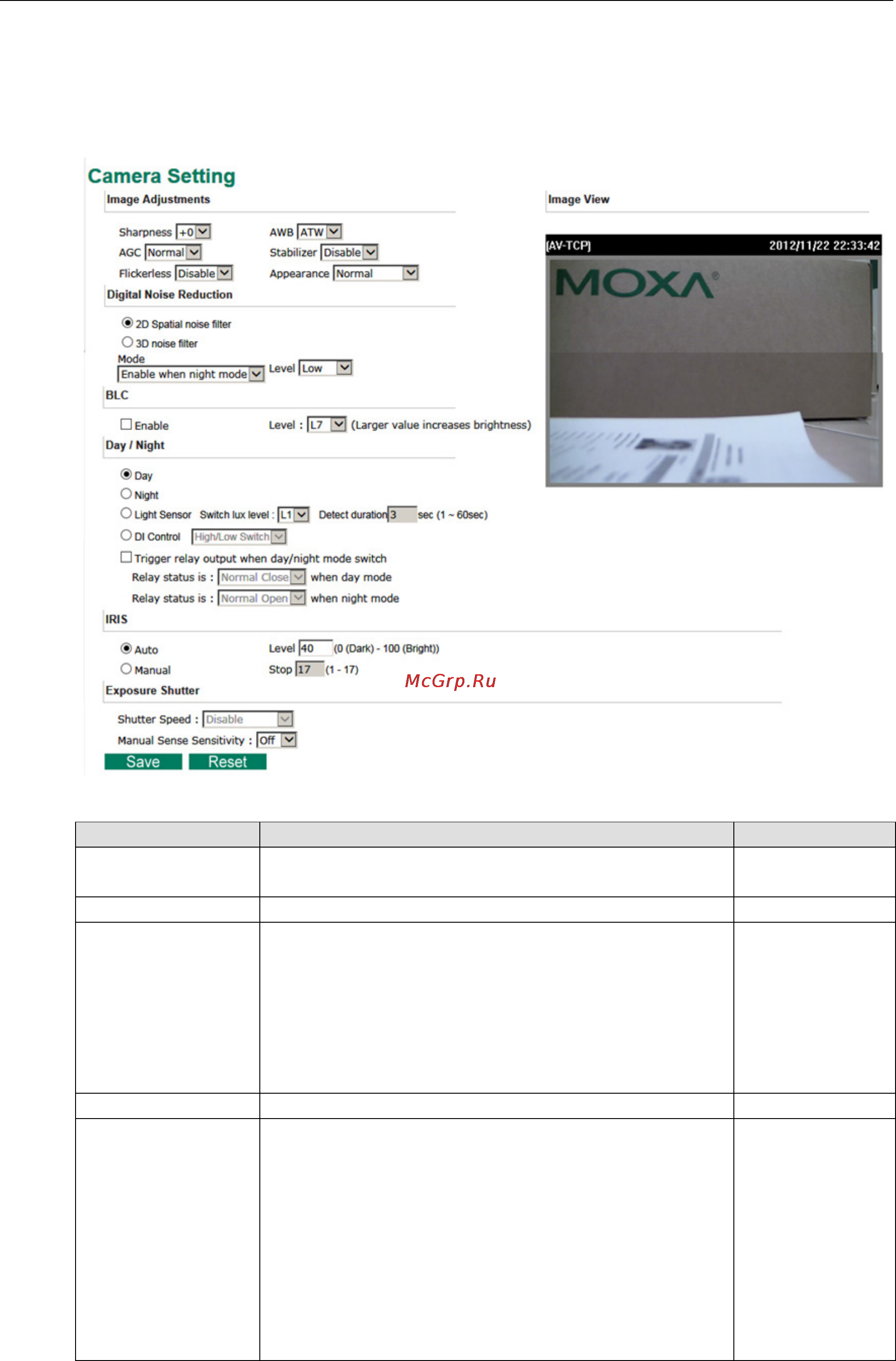

Image Adjustment

Setting Description Default

Flickerless Adjust sensor scan frequency to synchronize with

environmental lighting frequency

Disable

Sharpness Tune the image attribute to a value between -4 and + 4 0

Auto Gain Control

(AGC)

The AGC function provides a clear image in low light conditions

by controlling an amplifier that is used to boost the video signal

when the light dims so as to increase the camera’s sensitivity.

In some bright environments, the amplifier may be overloaded,

which could distort the video signal. In this case, it is necessary

to monitor the signal level with the AGC control circuit and AGC

may need to be switched off.

Normal

Stabilizer This function helps to stabilize a shaky video view Disable

AWB

(Auto White Balance)

In most conditions you should choose ATW, which allows the

camera to automatically adjust the white balance. AWB is

recommended when your camera is focused on a scene in which

one color occupies most of the view.

Take these steps to use AWB:

1. Focus the camera on a white color in an actual

environment with normal lighting.

2. Select AWB and then press Save.

3. Move the camera back to the scene that will be monitored.

ATW
