VPort 56-2MP System Configuration

4-38

Suffix of Image File Name in FTP and Mail attachment

The snapshot images can be sent either by email or FTP. Administrators can add a suffix to the filename of each

JPEG snapshot image to make it easier to identify the files when using FTP to download the snapshots.

Setting Description Default

With Date and Time Enable or disable adding the date and time to the filename. Disable

With Customized words

Enable or disable adding some additional custom text to the

filename to identify the snapshot image.

Disable

Sequential PreAlarm Image Setting

The VPort 56-2MP supports a 84 MB memory buffer to record the pre-alarm MJPEG image up to 15 FPS. This

function is to configure the frame rate per second of the MJPEG images being recorded.

Setting Description Default

Max. Frame Rate Configure the maximum frames per second to be record before

the alarm in 1, 3, 5, 10, 12, 15

NOTE

The 84 MB pre

-alarm buffer is for storing MJPEG image frames before the alarm. So, if the max. frame

rate is

set to 10, and the video size of each image is 30 KB, then 280 seconds of pre

-alarm MJPEG images can be

recorded . ((84000 KB / 30 KB) / 10 = 280)

DI, Relay Status

Administrators can check the current DI and Relay status of the VPort in the “DI, Relay Status” section on the

“Event Alarm Basic Settings” page. Two options are available to return the relay’s status back to the system

defaults. To enable the function, check the Override Relay 1 warning setting and Override Relay 2

warning setting boxes, and then click Save.

NOTE

The relays will not be triggered when the

Override Relay 1 warning setting and

Override Relay 2 warning

setting

boxes are checked. Un-check these 2 boxes to ensure that the relays will trigger.

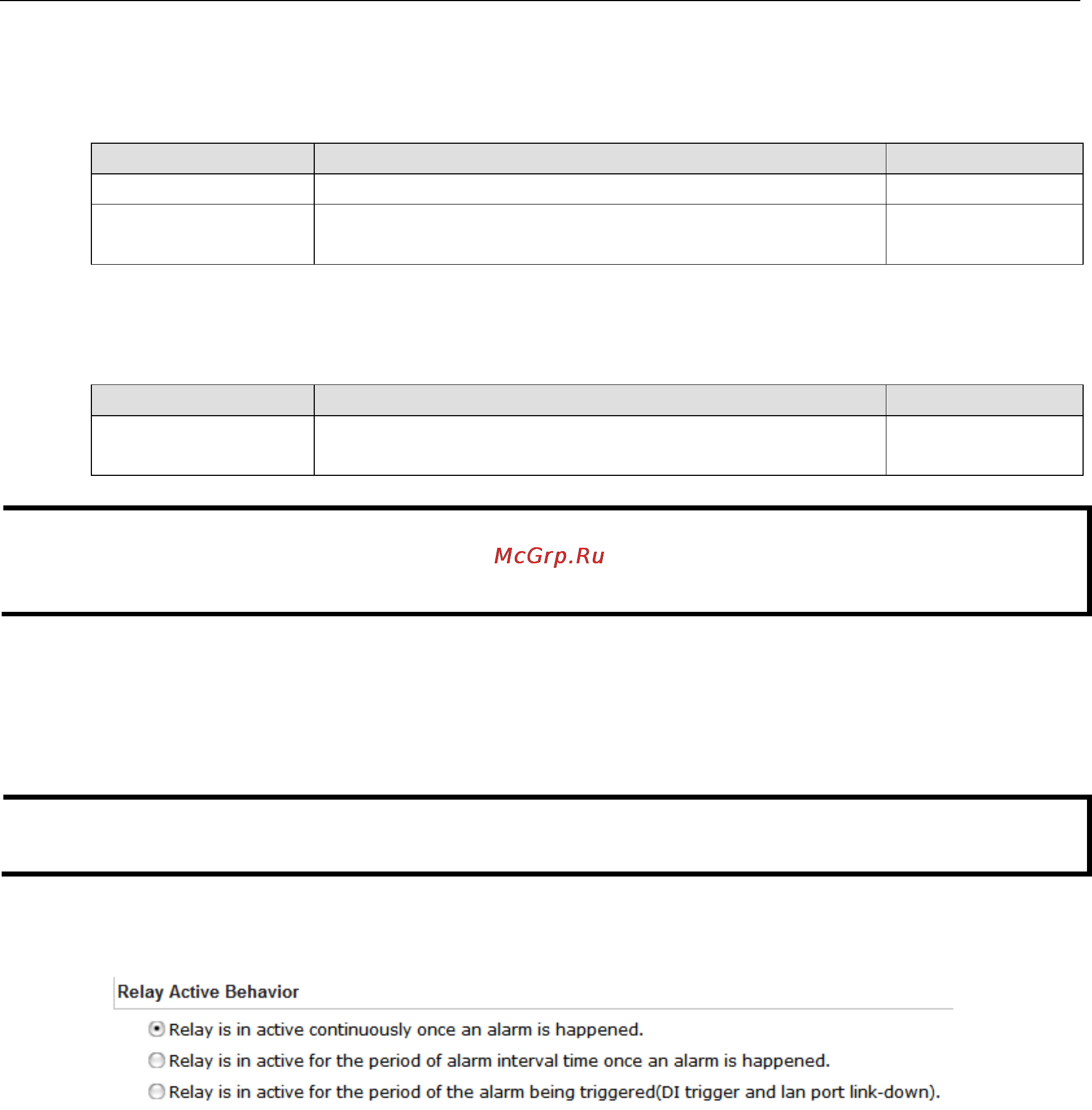

Relay Active Behavior

Three types of relay behavior can be configured when an event is triggered.
