Citizen CL-S700 [10/154] System level immediate execution commands
![Citizen CL-S700 [10/154] System level immediate execution commands](/views2/1204398/page10/bga.png)
1
-
9

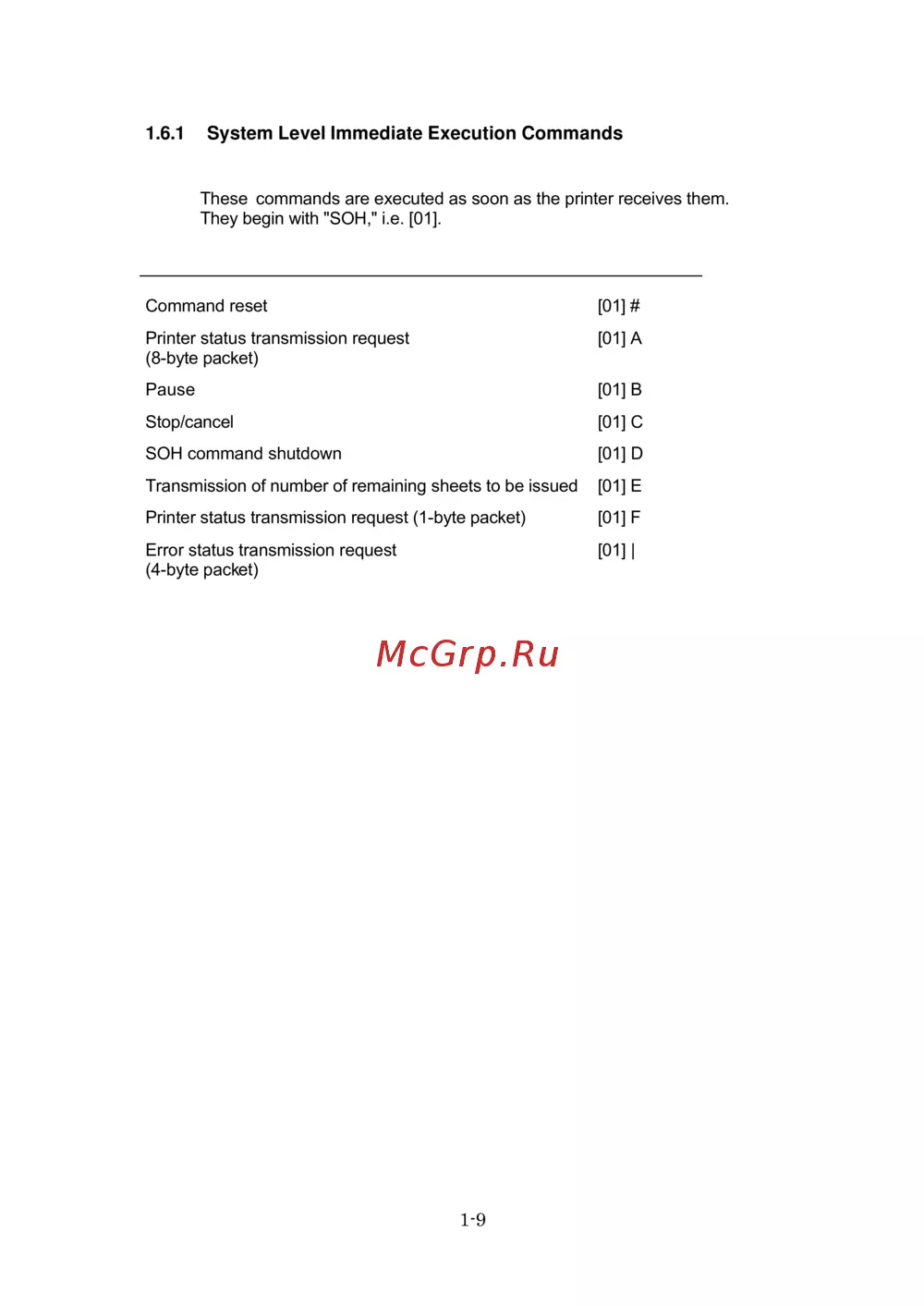

1.6.1 System Level Immediate Execution Commands
These commands are executed as soon as the printer receives them.
They begin with "SOH," i.e. [01].
Command reset [01] #
Printer status transmission request
(8-byte packet)
[01] A
Pause [01] B
Stop/cancel [01] C
SOH command shutdown [01] D
Transmission of number of remaining sheets to be issued [01] E
Printer status transmission request (1-byte packet) [01] F
Error status transmission request
(4-byte packet)
[01] |
