Citizen CL-S700 [18/154] Date and time transmission request
![Citizen CL-S700 [18/154] Date and time transmission request](/views2/1204398/page18/bg12.png)
1
-
17
Date and time transmission request
Code
[02] B
Data format
w, mm, dd, yyyy, hh, MM, j j j
w Sun. 0 Mon . 1 Tue s. 2 Wed s. 3 Thu rs.
4
Fri. 5 Sat. 6
mm Month 01 - 12
dd Day 01 - 31
yyyy Year 4 digits
hh Hour (24-hour display)
MM Minute 00 - 59
j j j Total number of days from the 1st of January
Function
Data on the contents of the calendar (date and time) stored in the
printer is transmitted to the computer. Data forma t transmitted from
the printer is described below. The [0D] hex code is added to the end
of the transmission data.
Example
Reception data below represents 15:30 Saturday 7 July 2001, which is
transmitted from the printer.
Reception
data
6070720011530188[0D]
4
901234
567894

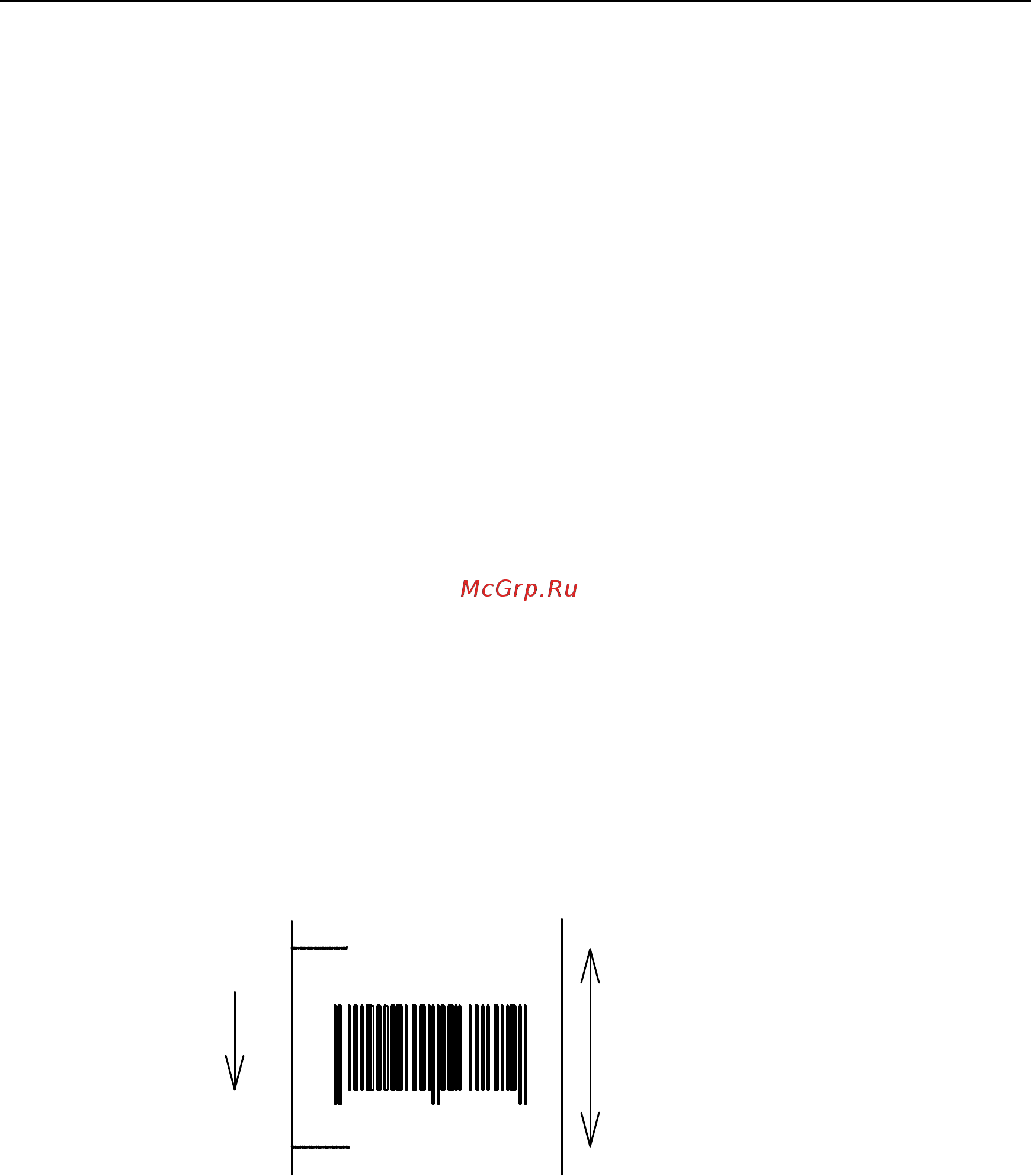

Paper length
2.5 in
Direction of feed
(c0250)
