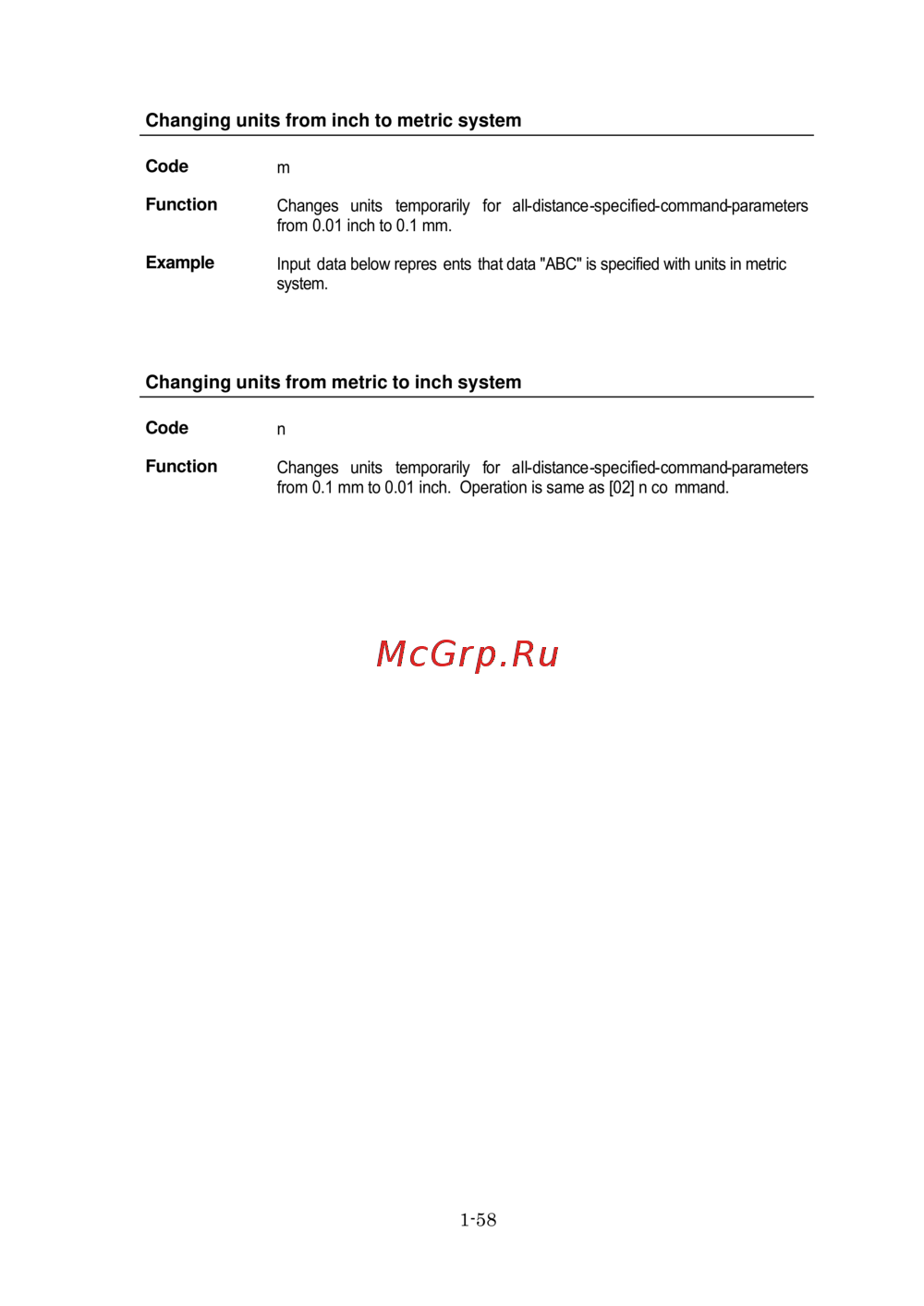

Citizen CL-S700 [59/154] Changing units from metric to inch system

Changing units from inch to metric system

Code

Function

Changes units temporarily for all-distance-specified-command-parameters

from 0.01 inch to 0.1 mm.

Example

Input data below repres ents that data "ABC" is specified with units in metric

system.

Changing units from metric to inch system

Code

Function

Changes units temporarily for all-distance-specified-command-parameters

from 0.1 mm to 0.01 inch. Operation is same as [02] n co mmand.
