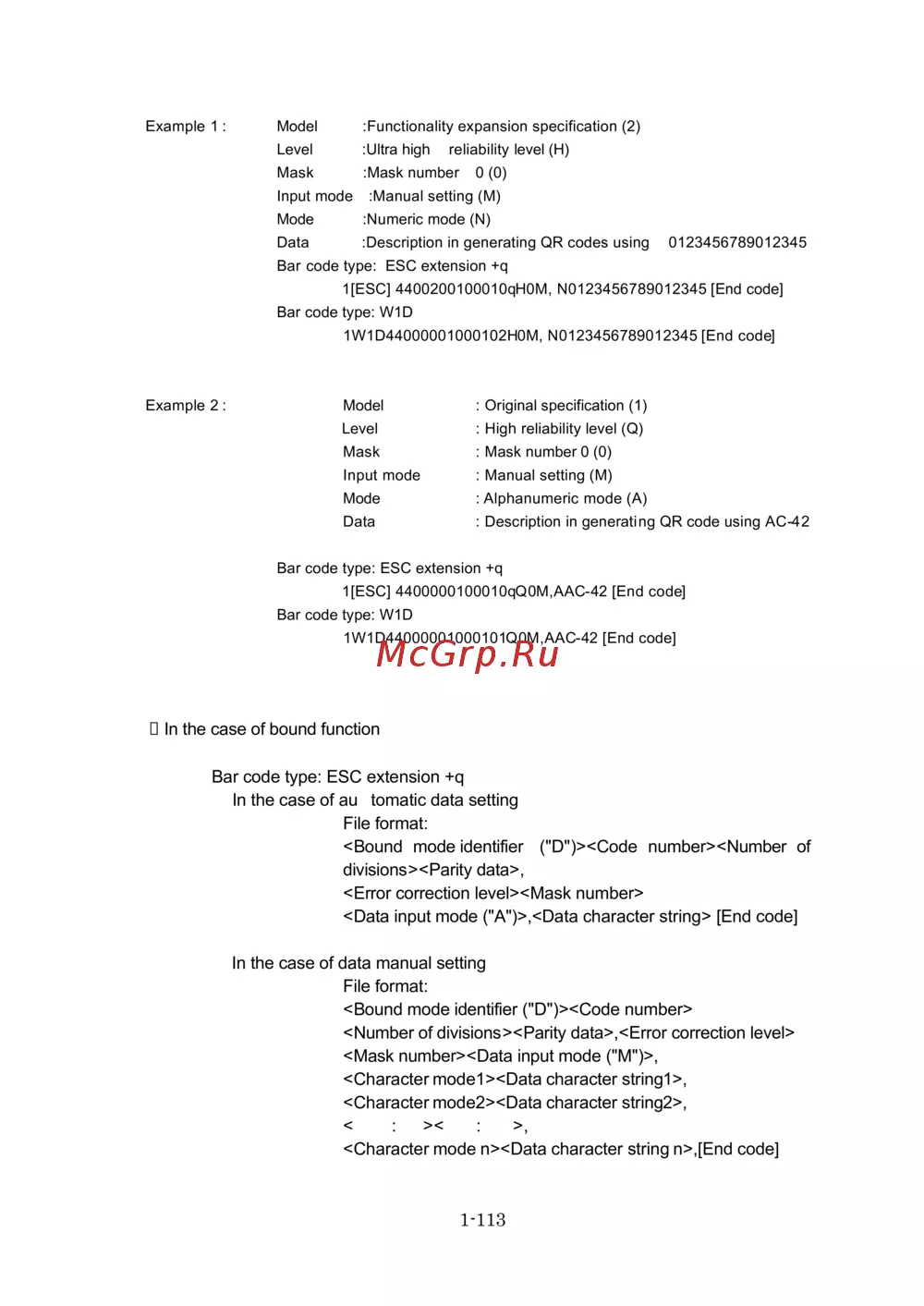

Citizen CL-S700 [114/154] End code
1
-
113
Example 1 : Model :Functionality expansion specification (2)
Level :Ultra high reliability level (H)
Mask :Mask number 0 (0)
Input mode :Manual setting (M)
Mode :Numeric mode (N)
Data :Description in generating QR codes using 0123456789012345
Bar code type: ESC extension +q
1[ESC] 4400200100010qH0M, N0123456789012345 [End code]
Bar code type: W1D
1W1D44000001000102H0M, N0123456789012345 [End code]
Example 2 : Model : Original specification (1)
Level : High reliability level (Q)
Mask : Mask number 0 (0)
Input mode : Manual setting (M)
Mode : Alphanumeric mode (A)
Data : Description in generating QR code using AC-42
Bar code type: ESC extension +q
1[ESC] 4400000100010qQ0M,AAC-42 [End code]
Bar code type: W1D
1W1D44000001000101Q0M,AAC-42 [End code]
◎In the case of bound function
Bar code type: ESC extension +q
In the case of au tomatic data setting
File format:
<Bound mode identifier ("D")><Code number><Number of
divisions><Parity data>,
<Error correction level><Mask number>
<Data input mode ("A")>,<Data character string> [End code]
In the case of data manual setting
File format:
<Bound mode identifier ("D")><Code number>
<Number of divisions><Parity data>,<Error correction level>
<Mask number><Data input mode ("M")>,
<Character mode1><Data character string1>,
<Character mode2><Data character string2>,
< : >< : >,
<Character mode n><Data character string n>,[End code]
