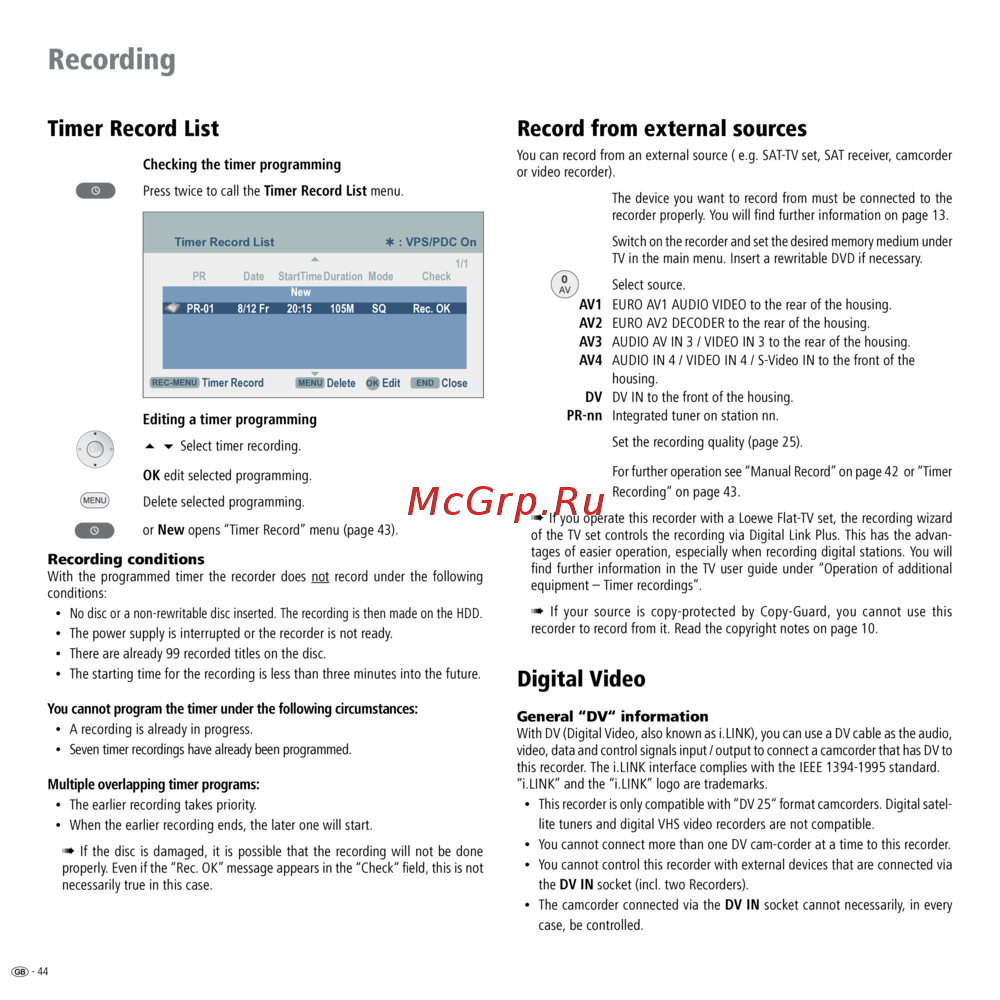

Loewe Viewvision DR+ [44/66] Record from external sources
![Loewe Viewvision DR+ [44/66] Record from external sources](/views2/1020455/page44/bg2c.png)
- 44
Timer Record List
Checking the timer programming
Press twice to call the Timer Record List menu.
OK
END
MENU
Edit
PR Date StartTimeDuration Mode Check
1/1
PR-01 8/12 Fr 20:15 105M SQ Rec. OK
New
CloseDelete
Timer Record List : VPS/PDC On
Timer Record
REC-MENU
Editing a timer programming
5 6 Select timer recording.
OK edit selected programming.
Delete selected programming.
or New opens “Timer Record” menu (page 43).
Recording conditions
With the programmed timer the recorder does not record under the following
conditions:
No disc or a non-rewritable disc inserted. The recording is then made on the HDD.
The power supply is interrupted or the recorder is not ready.
There are already 99 recorded titles on the disc.
The starting time for the recording is less than three minutes into the future.
You cannot program the timer under the following circumstances:
A recording is already in progress.
Seven timer recordings have already been programmed.
Multiple overlapping timer programs:
The earlier recording takes priority.
When the earlier recording ends, the later one will start.
➠ If the disc is damaged, it is possible that the recording will not be done
properly. Even if the “Rec. OK” message appears in the “Check“ field, this is not
necessarily true in this case.
•
•
•
•
•
•
•
•
Record from external sources
You can record from an external source ( e.g. SAT-TV set, SAT receiver, camcorder
or video recorder).
The device you want to record from must be connected to the
recorder properly. You will find further information on page 13.
Switch on the recorder and set the desired memory medium under
TV in the main menu. Insert a rewritable DVD if necessary.
Select source.
AV1 EURO AV1 AUDIO VIDEO to the rear of the housing.
AV2 EURO AV2 DECODER to the rear of the housing.
AV3 AUDIO AV IN 3 / VIDEO IN 3 to the rear of the housing.
AV4 AUDIO IN 4 / VIDEO IN 4 / S-Video IN to the front of the
housing.
DV DV IN to the front of the housing.
PR-nn Integrated tuner on station nn.
Set the recording quality (page 25).
For further operation see “Manual Record” on page 42 or “Timer
Recording“ on page 43.
➠ If you operate this recorder with a Loewe Flat-TV set, the recording wizard
of the TV set controls the recording via Digital Link Plus. This has the advan-
tages of easier operation, especially when recording digital stations. You will
find further information in the TV user guide under “Operation of additional
equipment – Timer recordings”.
➠ If your source is copy-protected by Copy-Guard, you cannot use this
recorder to record from it. Read the copyright notes on page 10.
Digital Video
General “DV“ information
With DV (Digital Video, also known as i.LINK), you can use a DV cable as the audio,
video, data and control signals input / output to connect a camcorder that has DV to
this recorder. The i.LINK interface complies with the IEEE 1394-1995 standard.
“i.LINK” and the “i.LINK” logo are trademarks.
This recorder is only compatible with “DV 25“ format camcorders. Digital satel-
lite tuners and digital VHS video recorders are not compatible.
You cannot connect more than one DV cam-corder at a time to this recorder.
You cannot control this recorder with external devices that are connected via
the DV IN socket (incl. two Recorders).
The camcorder connected via the DV IN socket cannot necessarily, in every
case, be controlled.
•
•
•
•
Recording
