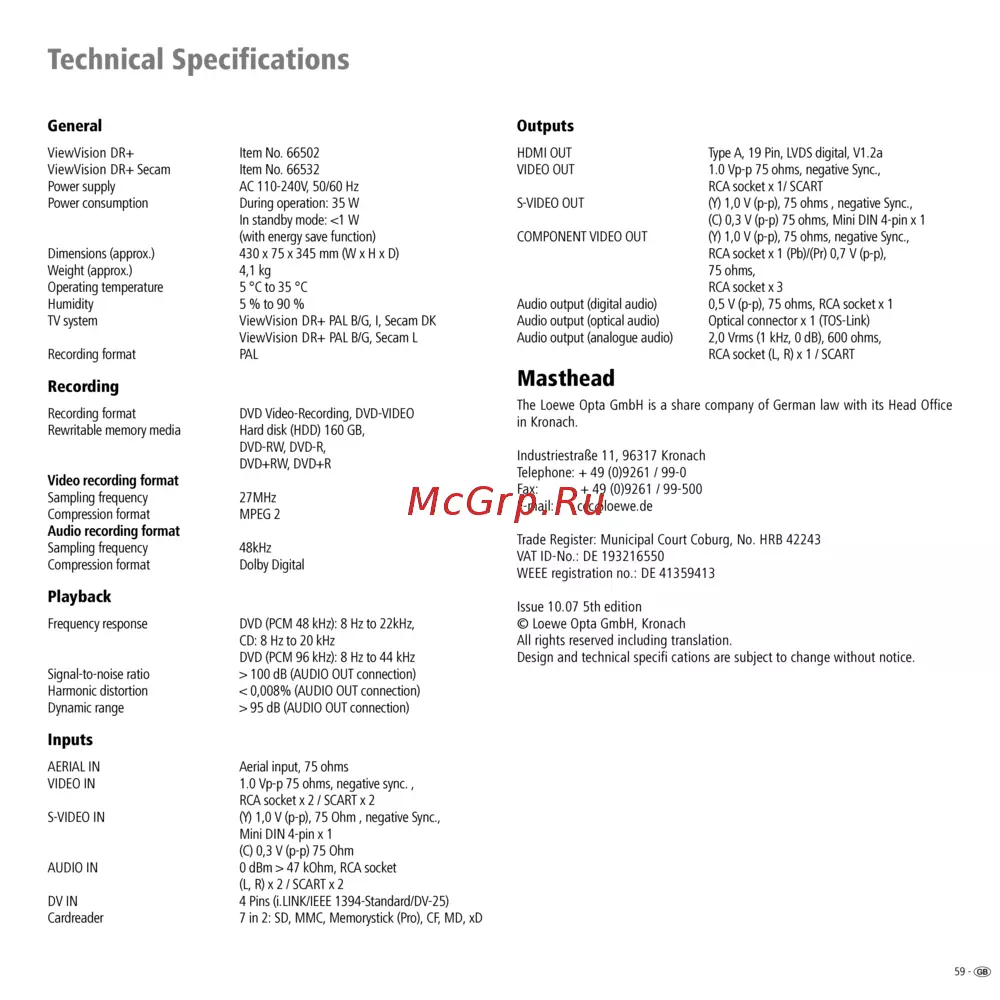

General
ViewVision DR+ Item No. 66502
ViewVision DR+ Secam Item No. 66532
Power supply AC 110-240V, 50/60 Hz
Power consumption During operation: 35 W
In standby mode: <1 W
(with energy save function)
Dimensions (approx.) 430 x 75 x 345 mm (W x H x D)
Weight (approx.) 4,1 kg
Operating temperature 5 °C to 35 °C
Humidity 5 % to 90 %
TV system ViewVision DR+ PAL B/G, I, Secam DK
ViewVision DR+ PAL B/G, Secam L
Recording format PAL
Recording
Recording format DVD Video-Recording, DVD-VIDEO
Rewritable memory media Hard disk (HDD) 160 GB,
DVD-RW, DVD-R,
DVD+RW, DVD+R
Video recording format
Sampling frequency 27MHz
Compression format MPEG 2
Audio recording format
Sampling frequency 48kHz
Compression format Dolby Digital
Playback
Frequency response DVD (PCM 48 kHz): 8 Hz to 22kHz,
CD: 8 Hz to 20 kHz
DVD (PCM 96 kHz): 8 Hz to 44 kHz
Signal-to-noise ratio > 100 dB (AUDIO OUT connection)
Harmonic distortion < 0,008% (AUDIO OUT connection)
Dynamic range > 95 dB (AUDIO OUT connection)
Inputs
AERIAL IN Aerial input, 75 ohms
VIDEO IN 1.0 Vp-p 75 ohms, negative sync. ,
RCA socket x 2 / SCART x 2
S-VIDEO IN (Y) 1,0 V (p-p), 75 Ohm , negative Sync.,
Mini DIN 4-pin x 1
(C) 0,3 V (p-p) 75 Ohm
AUDIO IN 0 dBm > 47 kOhm, RCA socket
(L, R) x 2 / SCART x 2
DV IN 4 Pins (i.LINK/IEEE 1394-Standard/DV-25)
Cardreader 7 in 2: SD, MMC, Memorystick (Pro), CF, MD, xD
Outputs
HDMI OUT Type A, 19 Pin, LVDS digital, V1.2a
VIDEO OUT 1.0 Vp-p 75 ohms, negative Sync.,
RCA socket x 1/ SCART
S-VIDEO OUT (Y) 1,0 V (p-p), 75 ohms , negative Sync.,
(C) 0,3 V (p-p) 75 ohms, Mini DIN 4-pin x 1
COMPONENT VIDEO OUT (Y) 1,0 V (p-p), 75 ohms, negative Sync.,
RCA socket x 1 (Pb)/(Pr) 0,7 V (p-p),
75 ohms,
RCA socket x 3
Audio output (digital audio) 0,5 V (p-p), 75 ohms, RCA socket x 1
Audio output (optical audio) Optical connector x 1 (TOS-Link)
Audio output (analogue audio) 2,0 Vrms (1 kHz, 0 dB), 600 ohms,
RCA socket (L, R) x 1 / SCART
