Loewe Centros 1102 [3/70] Remote control rc3 dvd operation
![Loewe Centros 1102 [3/70] Remote control rc3 dvd operation](/views2/1020596/page3/bg3.png)
- 3

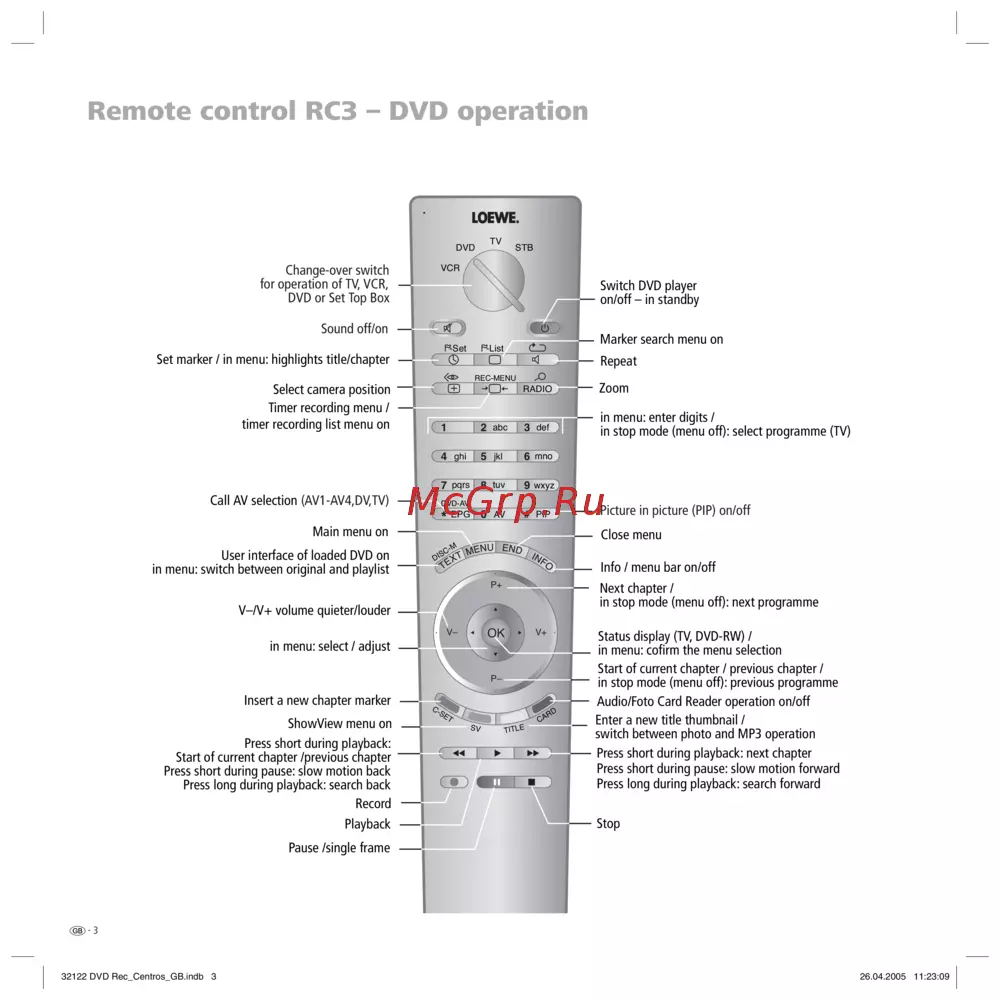

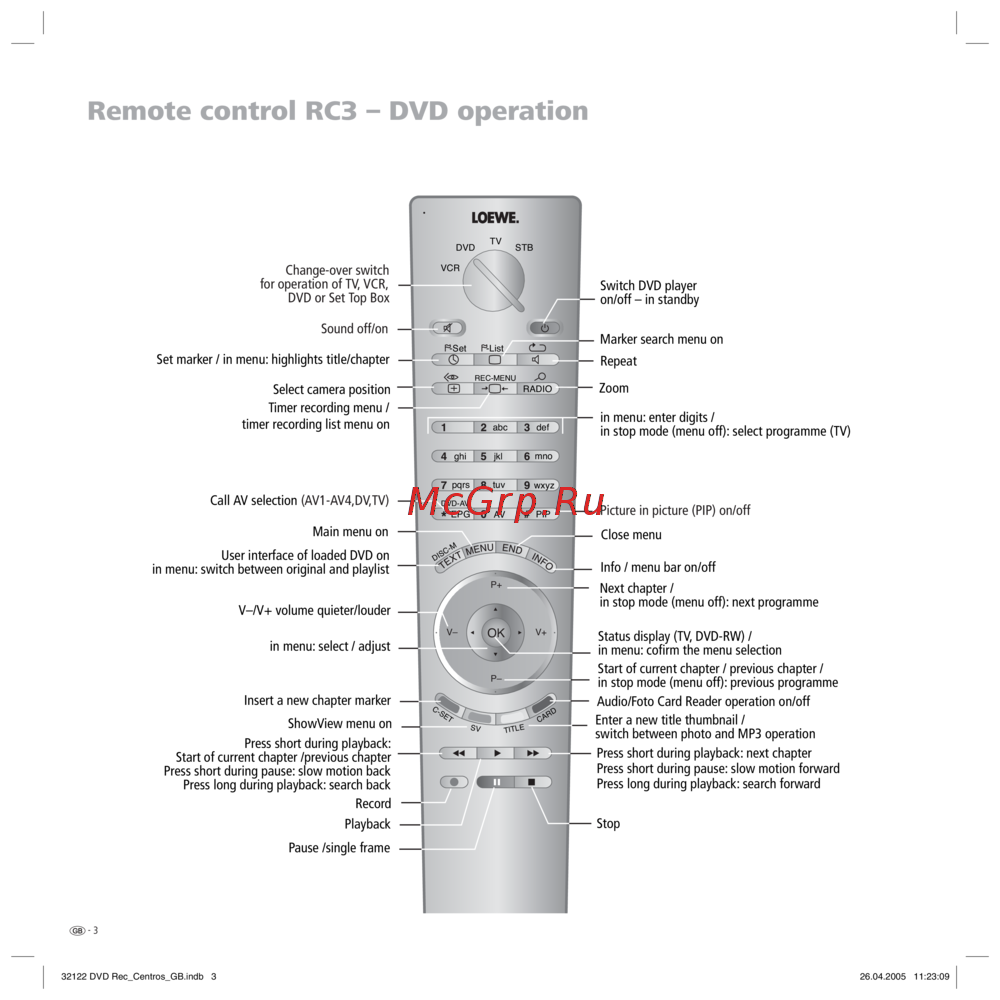

Remote control RC3 – DVD operation
abc def
RADIO
-Set
TV
DVD STB
VCR
REC-MENU
ghi jkl
mno
pqrs
tuv
wxyz
EPG
AV
DISC-M
DVD-AV
CARD
SV
TITLE
C-SET
PIP
P+
OK
P–
V– V+
-List
Sound off/on
Set marker / in menu: highlights title/chapter
Switch DVD player
on/off – in standby
Press short during playback: next chapter
Press short during pause: slow motion forward
Press long during playback: search forward
Stop
V–/V+ volume quieter/louder
Info / menu bar on/off
Close menu
Picture in picture (PIP) on/off
Marker search menu on
Repeat
Zoom
in menu: enter digits /
in stop mode (menu off): select programme (TV)
Playback
in menu: select / adjust
Status display (TV, DVD-RW) /
in menu: cofirm the menu selection
User interface of loaded DVD on
in menu: switch between original and playlist
Main menu on
Call AV selection (AV1-AV4,DV,TV)
Timer recording menu /
timer recording list menu on
Select camera position
Change-over switch
for operation of TV, VCR,
DVD or Set Top Box
Pause /single frame
Record
Next chapter /
in stop mode (menu off): next programme
Audio/Foto Card Reader operation on/off
Start of current chapter / previous chapter /
in stop mode (menu off): previous programme
Enter a new title thumbnail /
switch between photo and MP3 operation
Insert a new chapter marker
ShowView menu on
Press short during playback:
Start of current chapter /previous chapter
Press short during pause: slow motion back
Press long during playback: search back
32122 DVD Rec_Centros_GB.indb 3 32122 DVD Rec_Centros_GB.indb 3 26.04.2005 11:23:0926.04.2005 11:23:09
