1. PRODUCT NAME

Hitachi 10 mm Cordless Stud Cutter, Model CL 14DSL

2. MARKETING OBJECTIVE

The Model CL 14DSL is the new cordless stud cutter equipped with a slide-type lithium-ion

battery. It is developed to reinforce our 14.4-V product lines and also to meet the market

demands.

The new Model CL 14DSL weighs only 2.9 kg, and is lighter than the current Model CL 10D2

thanks to adopting the slide-type lithium-ion battery that is lightweight in spite of its high voltage

(14.4 V).

In addition, this new model is capable of cutting up to 660 studs per single charge (when cutting

M10 soft steel studs using the 14.4-V lithium-ion battery with nominal capacity 3.0 Ah). This

model is also equipped with a convenient remaining battery indicator.

Thus the Model CL 14DSL is excellent in performance, user-friendliness and operability.

The decelerating mechanism and the cutting mechanism are common with the Model CL 10D2

(12-V cordless tool) and the Model CL 10SA (corded tool).

3. APPLICATIONS

Cutting of mild-steel studs

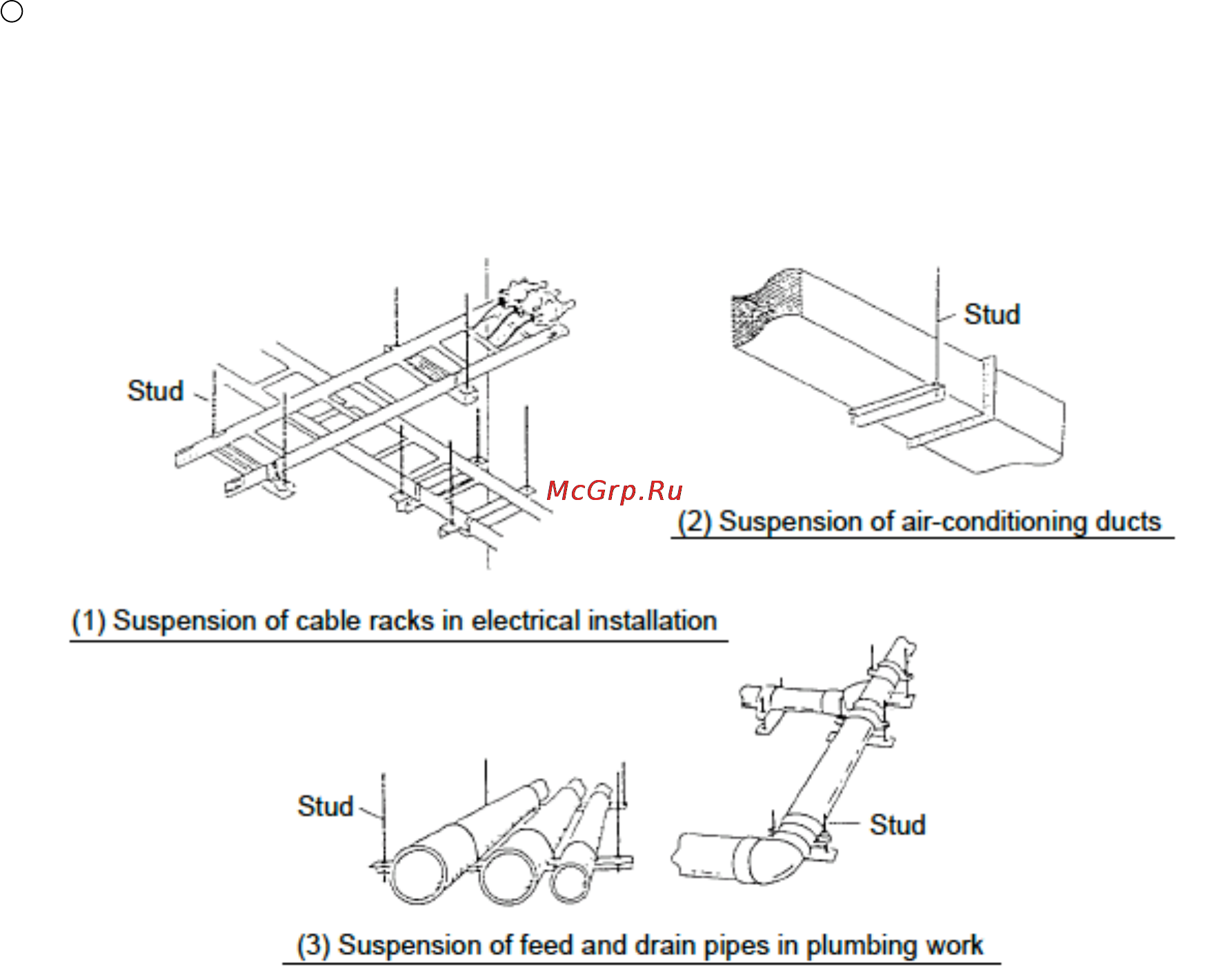

[Typical threaded stud applications]

Electric installation ----- Suspension of luminaires, cable racks, conduit pipes, etc.

Air-conditioning --------- Suspension of air-conditioning ducts, exhaust ducts, etc.

Plumbing installation -- Suspension of feed and drain pipes

Fig. 1
