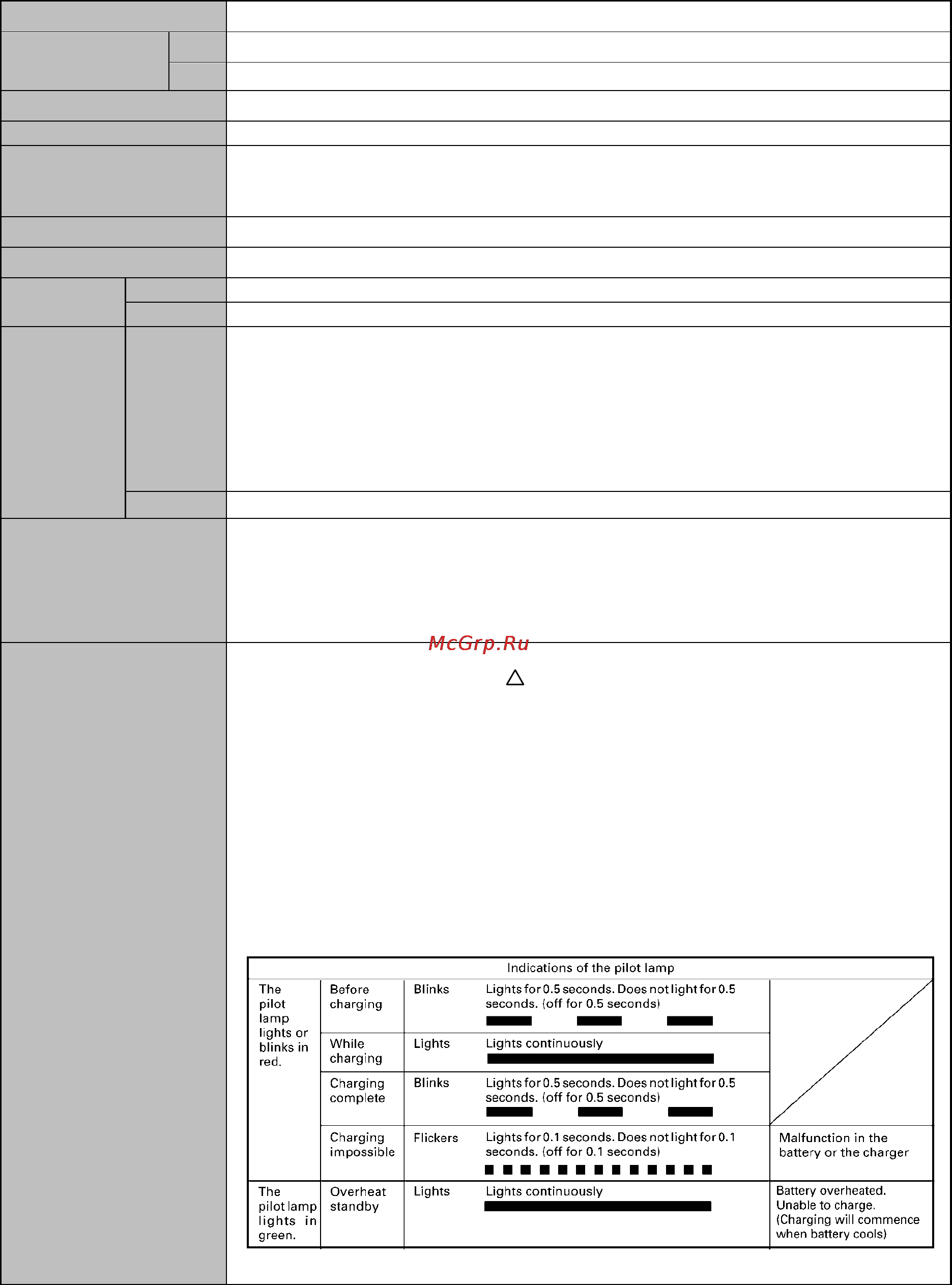

-5-
5. SPECIFICATIONS
5-1. Specifications
Capacity
Mild steel studs: M10, M8, M6 or W3/8”
M 10
660 cuts (powered by the battery Type BSL 1430)
Number of cutting
per battery charge
M 8 1,020 cuts (powered by the battery Type BSL 1430)
Cutting time
2.3 sec.
Type of motor DC magnet motor
Enclosure
Main body: Glass fiber reinforced polyamide resin
Battery: Polycarbonate resin
Charger: ABS resin
Type of switch
Trigger switch with forward/reverse changeover (with brake)
No-load stroke
30 min
-1
Main body 2.9 kg (6.39 lbs.) (includes battery)
Weight
Battery 0.5 kg (1.1 lbs.)
2LSCK
Plastic case--------------------------------------------1 pc.
Battery (BSL 1430) ----------------------------------2 pcs.
Battery cover ------------------------------------------1 pc.
Charger (UC 18YRSL) -----------------------------1 pc.
Hex. bar wrench --------------------------------------1 pc.
M8 cutter ass’y----------------------------------------1 pc.
M8 trimmer---------------------------------------------1 pc.
Standard
accessories
NN Without plastic case, battery, battery cover or charger
Battery
(Type BSL 1430)
Sealed cylindrical lithium-ion battery
Nominal voltage: DC 14.4 V
Nominal life: Charging/discharging approximately 1,500 cycles
(in case of the Model UC 18YRSL)
Nominal capacity: 3.0 Ah
Charger
(Type UC 18YRSL)
Overcharge protection system:
(1) Battery voltage detection (- V system)
Battery temperature detection (dT/dt system)
(2) Battery surface temperature detection (thermostat or thermistor)
(3) 120-minute timer
(4) Stop current detection
Power input: 90 W
Charging time: Approx. 45 minutes [for type BSL 1430 battery at 20°C (68°F)]
Operable ambient temperature range: 0°C
-
40°C (32°F
-
104°F)
The maximum allowable temperature of the Type BSL 1430 battery is 50°C
(122°F).
Indication method of battery charging function
Содержание
- Model cl14dsl 1
- And reassembly of battery charger 26 2
- Contents 2
- Applications 3
- Marketing objective 3
- Product name 3
- Equipped with the new slide type lithium ion battery 4
- Light weight 2 kg cutting capacity per single charge 660 times m10 mild steel equipped with lightweight and high capacity 3 ah lithium ion battery 4
- Selling points 4
- The lithium ion battery is of a safe design and long life thanks to the overdischarge protection circuit overcurrent protection circuit and voltage monitoring circuit for each cell 4
- The model cl 14dsl is equipped with the overdischarge protection circuit and the overcurrent protection circuit to prevent overdischarge overuse of the battery the battery is equipped with the voltage monitoring circuit for each cell to prevent overcharge excessive charging of the battery 4
- 1 selling point descriptions 5
- 1 specifications 7
- Specifications 7
- 2 optional accessories 8
- 1 specifications comparisons 9
- Comparisons with similar products 9
- Specifications comparisons 9
- 1 safety instructions 10
- Precautions in sales promotion 10
- 2 particular cautions for stud cutter 11
- 3 suggestions and precautions for the efficient use of the charger 14
- 1 precautions in disassembl and reassembly 15
- Repair guide 15
- 2 reassembly 22
- General assembly 29
- Standard repair time unit schedules 29
- Assembly diagram for cl 14dsl 30
- List no h808 30
- Model cl 14dsl cordless stud cutter 30
- Code no 31
- Description remarks 31
- Code no 32
- Description remarks 32
- Optional accessories 32
- Standard accessories 32
- Code no 33
- Description remarks 33
