-20-
8-2. Reassembly
Reassembly can be accomplished by following the disassembly procedures in reverse. However,
particular attention should be given to the following items.
(1) Reassembly of the power supply unit section

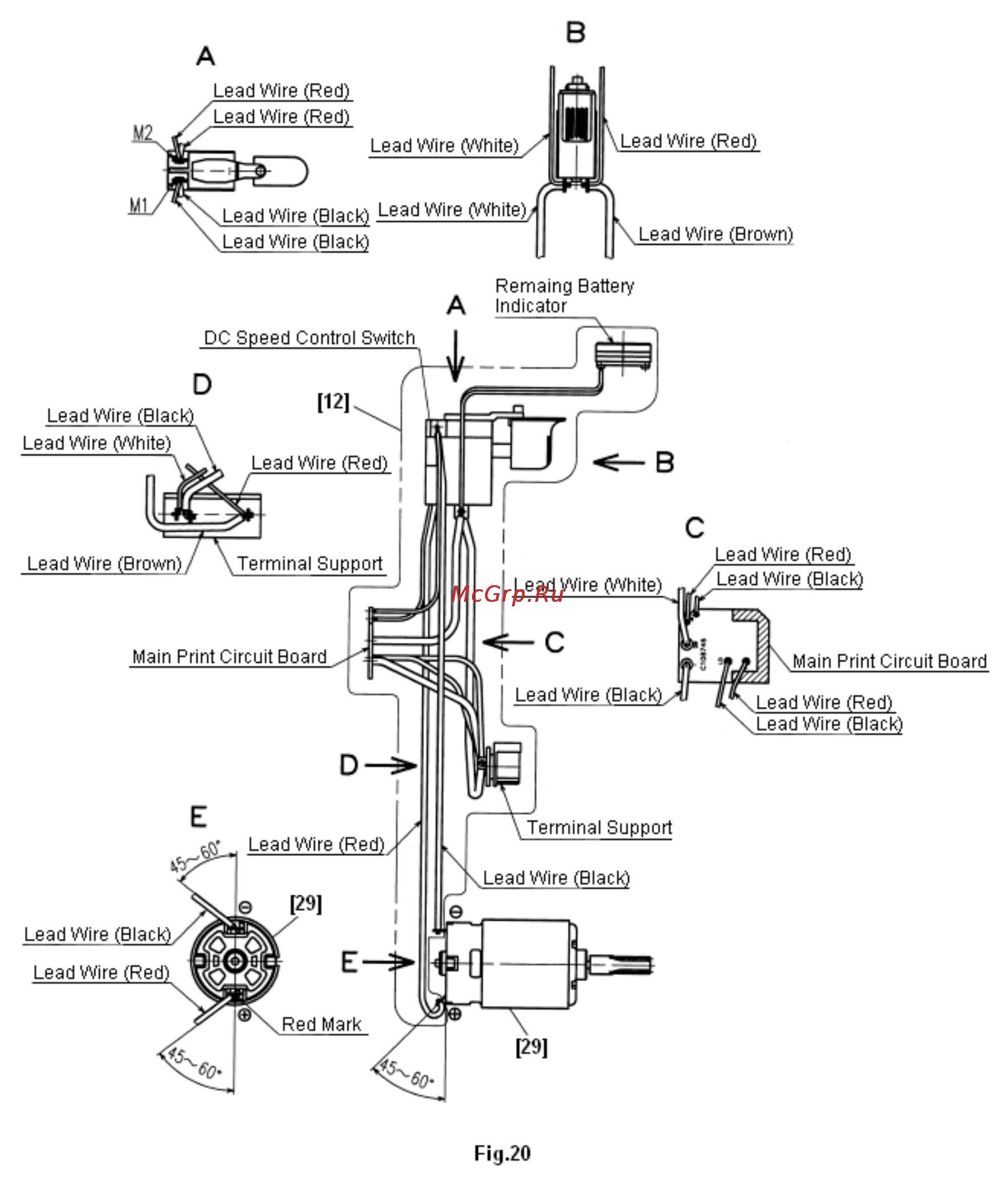

Be sure to perform wiring connections as indicated in the wiring diagram below (Fig. 20).
The "+" side is indicated with a red mark on the Motor [29] (Fig. 20).
