-19-

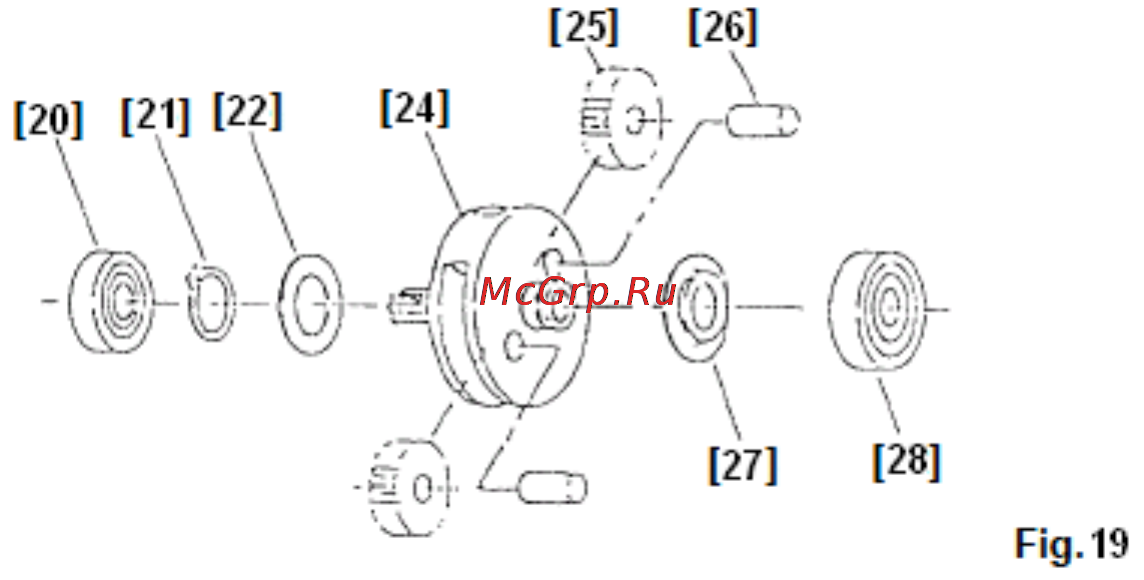

(4) Second pinion section (Fig. 19)
Remove the Ball Bearing 6001VVCMPS2L [28] press-fitted into the Second Pinion [24]
with a bearing puller. Then the Washer [27] can be removed. Remove the Ball Bearing
609VVC2PS2L [20] in the same manner and remove the Retaining Ring for D15 Shaft
[21] with the stop ring pliers. Then the Washer [22] can be removed. Remove the Needle [26]
and the Idle Gear [25].
