-13-
8. REPAIR GUIDE
WARNING: Without fail, remove the storage battery from the main body of the tool
before starting repair or maintenance work. If the battery is left in and the
switch is activated inadvertently, the motor will start rotating
unexpectedly, which could cause serious injury.
8-1. Precautions in Disassembl and Reassembly
The [Bold] numbers in the description below correspond to the item numbers in the Parts List
and exploded assembly diagram for the Model CL 14DSL.

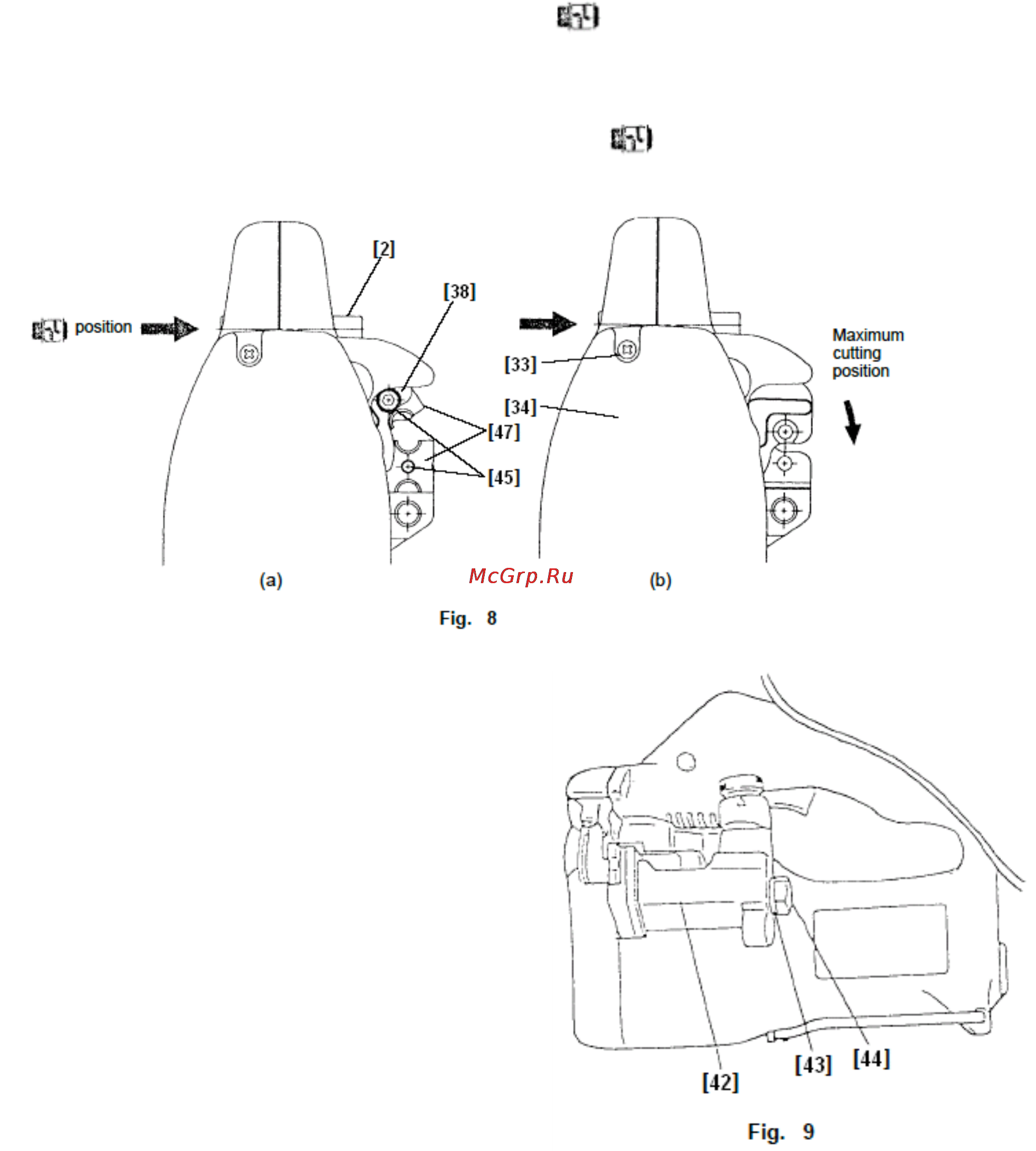

8-1-1. Preparation to disassemble (Fig. 8)
Before disassembly, set Pushing Button (A) [2] to the position and depress the Switch [12]
until Bracket (A) [38] opens. Then release the switch and remove the storage battery.
Remove the two Special Bolts M5 x 9 [45] from the two Cutter Assemblies M8 [47] with the Hex.
Bar Wrench 4 mm [7] (standard accessory). Insert the storage battery in the main body. Depress
the Switch [12] keeping Pushing Button (A) [2] set to the position until Bracket (A) [38] is
positioned to the maximum cutting position. Then release the switch and remove the storage
battery.
On completion of the above preparation,
be sure to disconnect and remove the battery.
Remove the Bolt W3/8 x 75 [44], loosen the
Spring Washer M10 [43], and take off the Stud
Guide Ass'y [42]. (Fig. 9)
