-14-
8-1-2. Disassembly
(1) Bracket ass'y section
(a) Removal of the Cover [34] (Fig. 8)
Remove the two Machine Screws (W/Washers) M4 x 20 (Black) [33] from the Cover
[34] and remove the Cover [34].

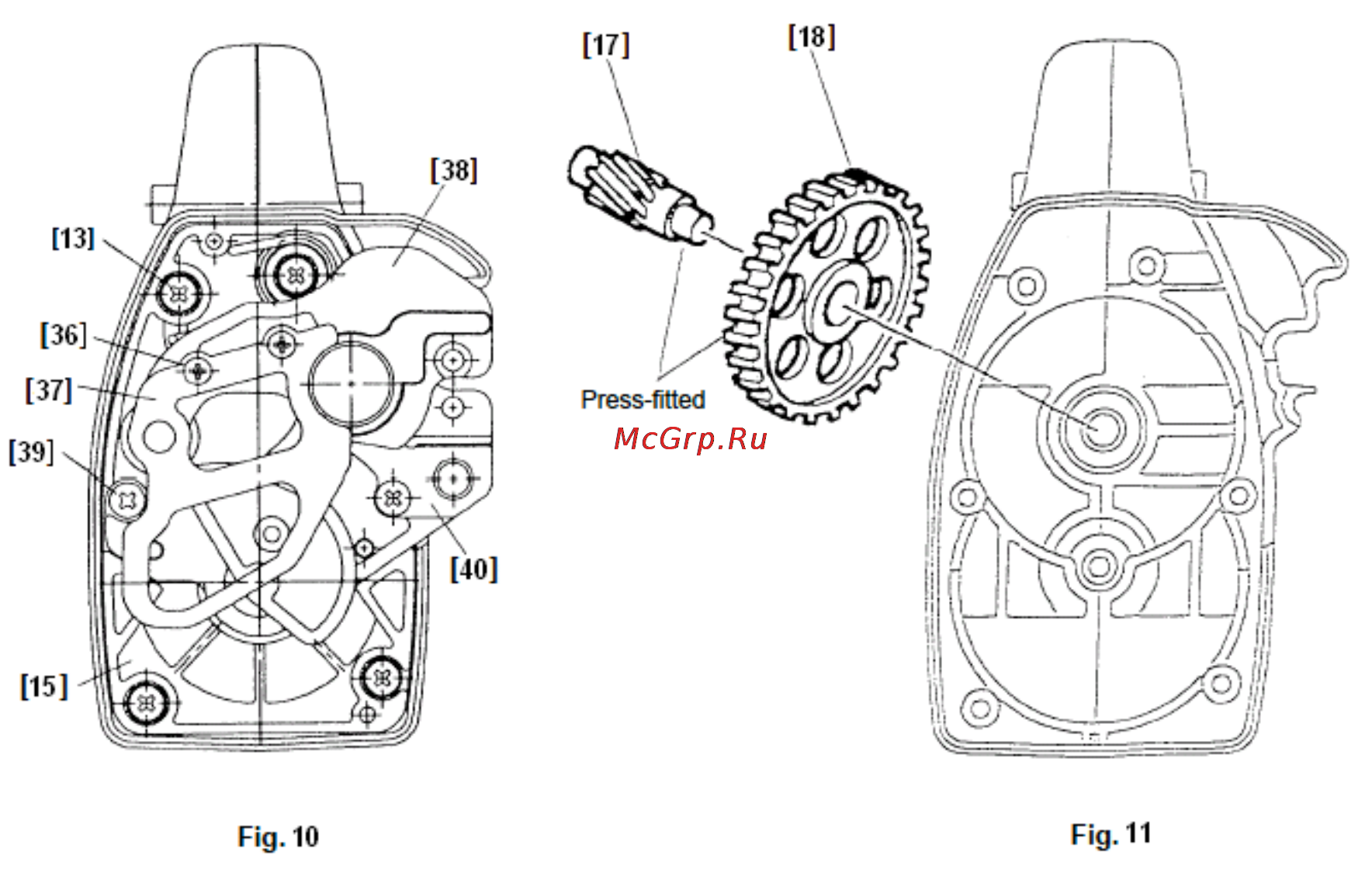

(b) Removal of the Return Plate [37] (Fig. 10)
Remove the two Seal Lock Screws (W/SP. Washer) M4 x 12 [36] and remove the
Return Plate [37].
(c) Removal of the Gear Cover [15] (Fig. 10)
Remove the four Tapping Screws (W/Flange) D5 x 25 (Black) [13] and the two Tapping
Screws D5 x 35 [39]. Hold Bracket (B) [40] and Bracket (A) [38] and remove them being
careful not to move Bracket (A) [38]. Then the Second Gear [18] and the Third Pinion [17] can
be removed (Fig. 11).
