-15-

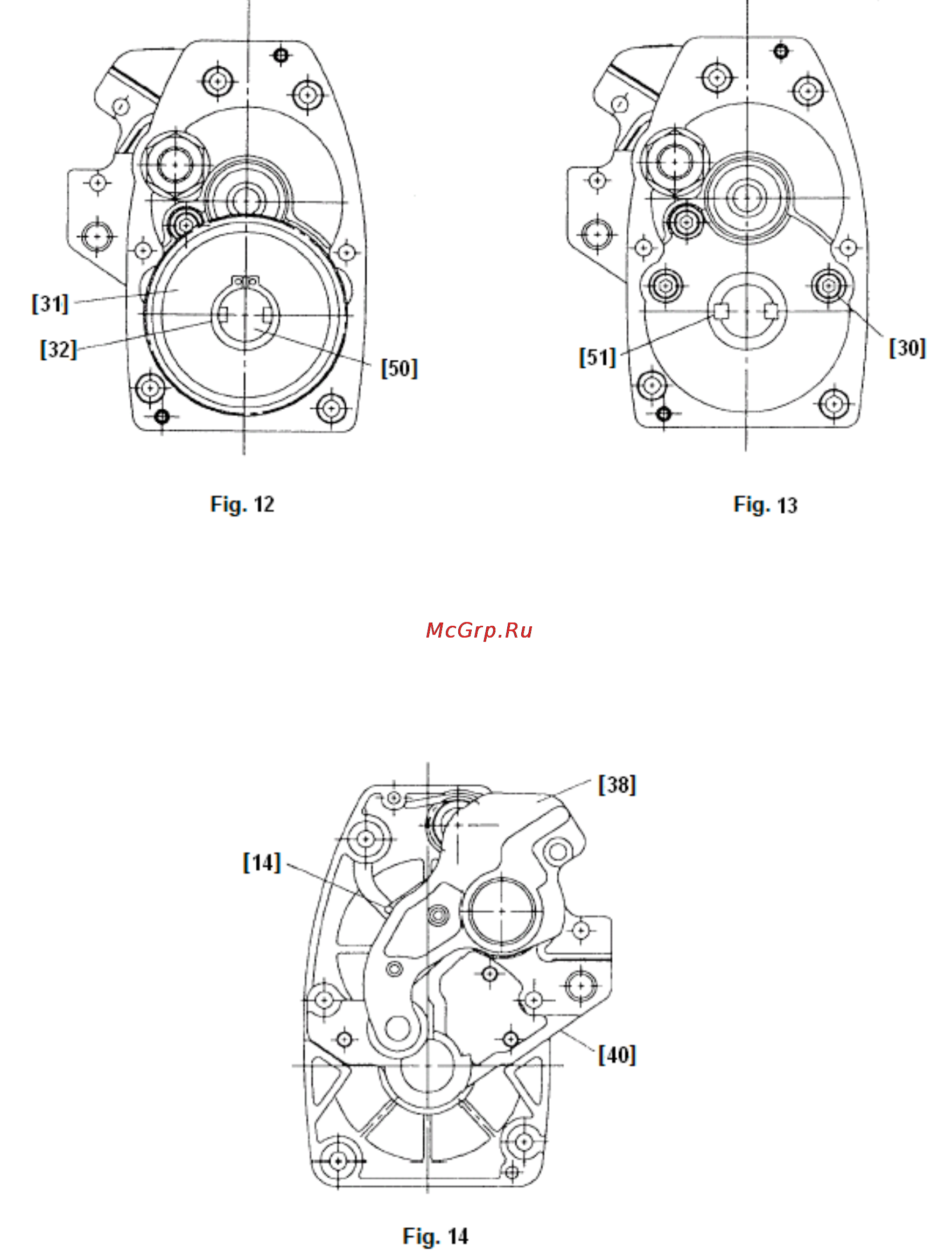

(d) Removal of the Final Gear [31] (Fig. 12)
Remove the Retaining Ring for D18 Shaft [32] that retains the Final Gear [31] and the
Cam Shaft [50] with the stop ring pliers. Remove the Final Gear [31] and the two
Feather Keys 5 x 5 x 10 [51]. Then the Cam Shaft [50] can be removed.
(e) Removal of the bracket ass'y (Figs. 13 and 14)
Remove the three Hex. Socket Hd. Bolts (W/Flange) M5 x 12 [30] from Bracket (B) [40] with
the Hex. Bar Wrench 4 mm [7]. Holding Bracket (A) [38] and Bracket (B) [40], remove the
bracket ass'y being careful not to make the Return Spring [14] jump up.
