-16-
(f) Disassembly of the bracket ass'y

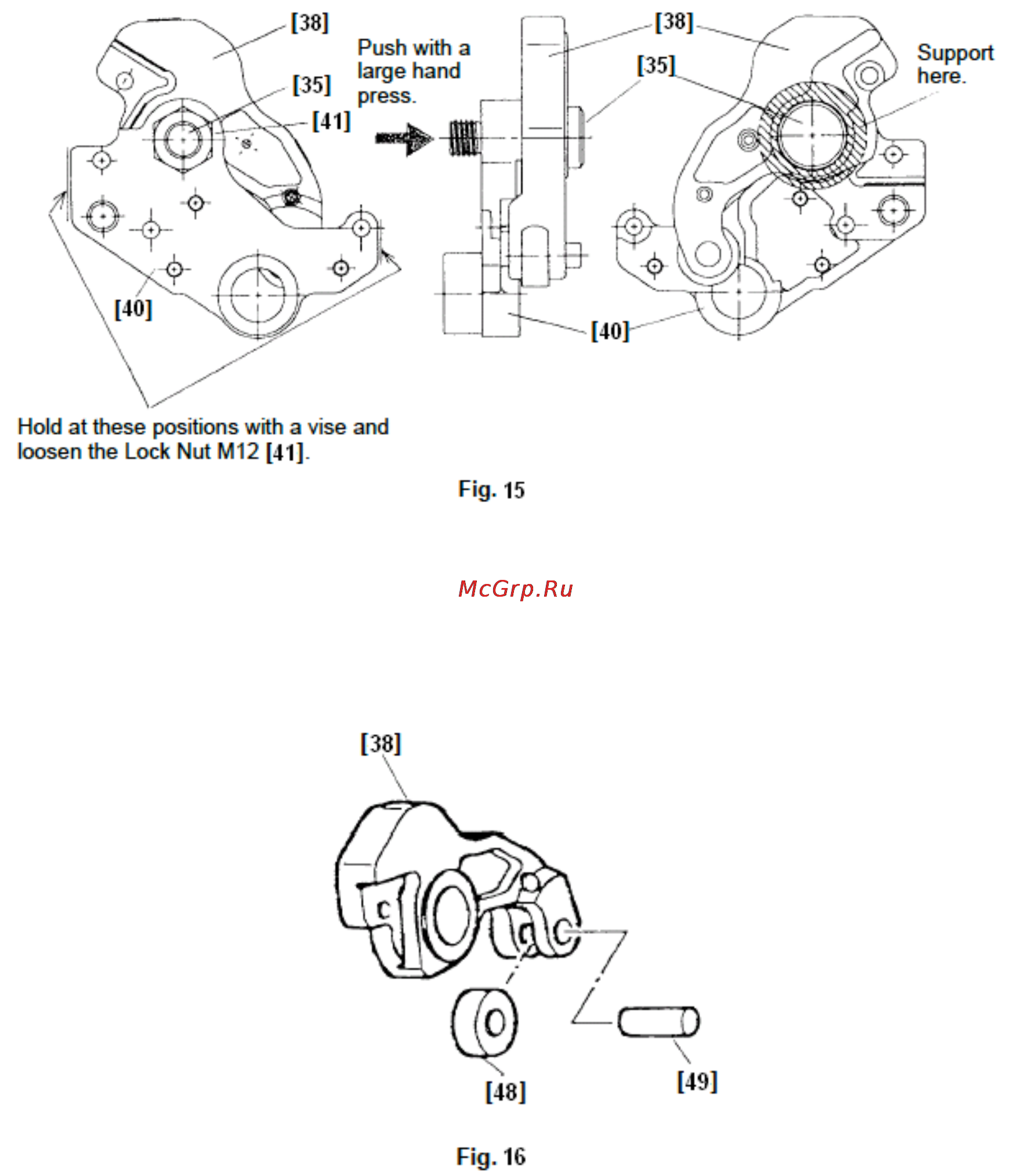

(i) Removal of Bolt (A) [35] (Fig. 15)
Bolt (A) [35] that secures Bracket (A) [38] to Bracket (B) [40] is press-fitted into
Bracket (B) [40] and tightened with the Lock Nut M12 [41]. Hold Bracket (B) [40] with a
vise and loosen the Lock Nut M12 [41] with a wrench (loosening torque: about
34 N
m {350 kgfcm}). Supporting around the head of Bolt (A) [35] of Bracket (A) [38],
push the screw side of Bolt (A) [35] with a hand press to separate Bracket (A) [38] from
Bracket (B) [40].
(ii) Removal of Roller (A) [48] (Fig. 16)
The Roller Pin [49] that secures Roller (A) [48] is press-fitted into Bracket (A) [38].
Remove the Roller Pin [49] by pushing in either direction with a hand press. Then
Roller (A) [48] can be removed.
