-17-
(2) Housing ass'y section

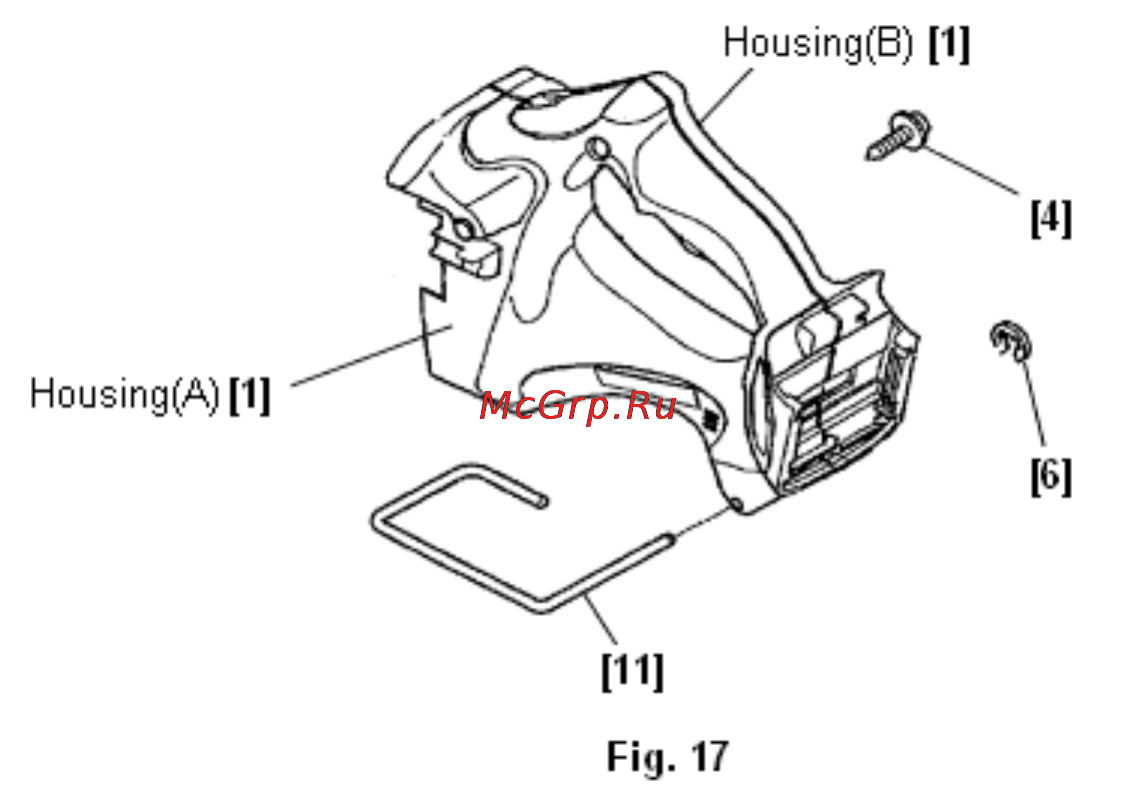

(a) Removal of the Hook [11] (Fig. 17)
Remove the Retaining Ring (E-Type) for D4 Shaft [6] that retains the Hook [11] with a
small flat-blade screwdriver. Then the Hook [11] can be removed.
(b) Removal of Housing (B) [1]
Remove the ten Tapping Screws (W/Flange) D4 x 20 (Black) [4] that secure Housing (A)
[1] to Housing (B) [1]. Holding the compartment of the Gear Cover [15] in Housing (A)
[1] and Housing (B) [1] or the compartment of the battery, remove Housing (B) [1]
carefully.
