-18-

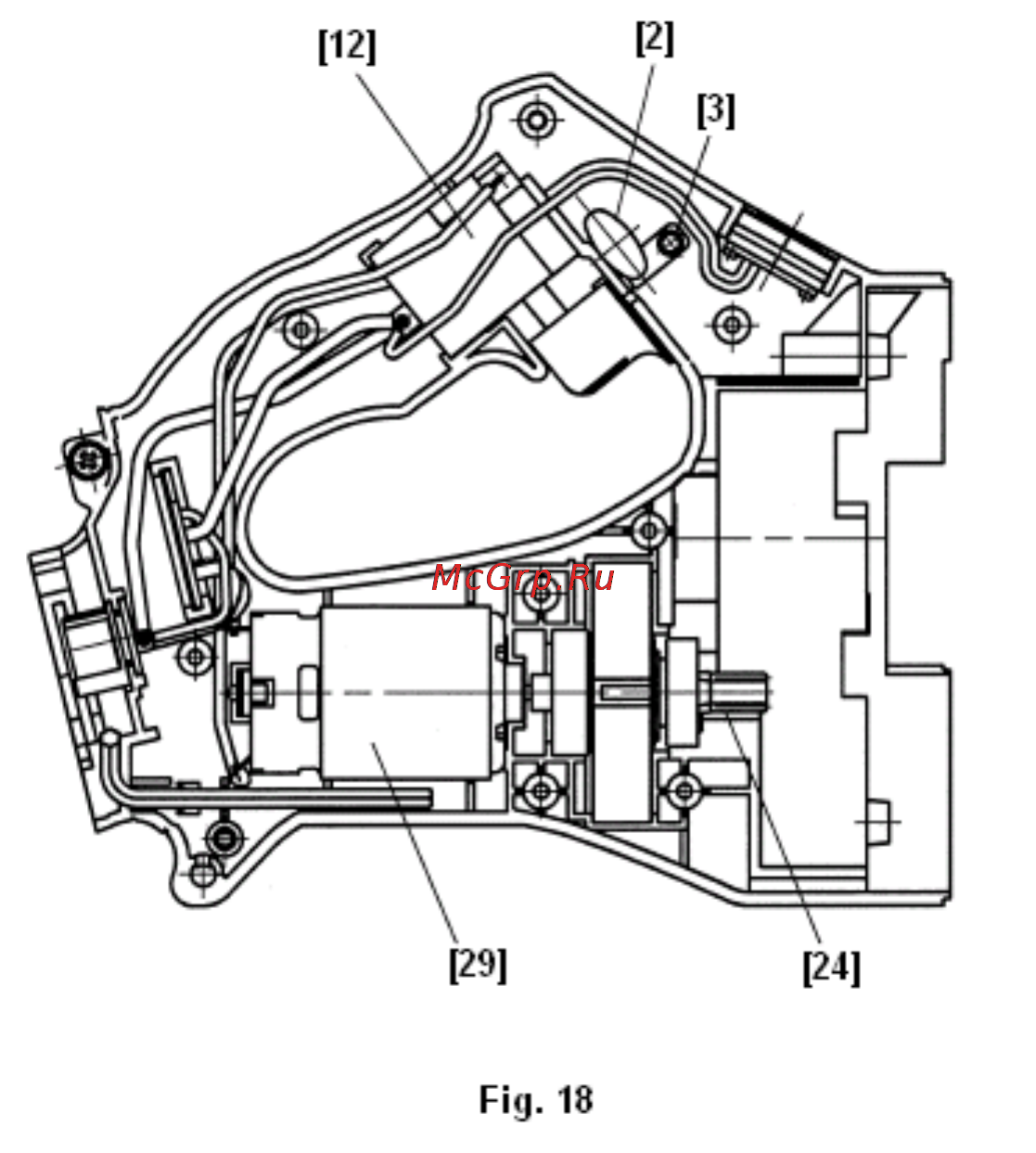

(c) After removal of Housing (B) [1], the internal assemblies and parts can be removed
(Fig. 18).
First, holding Pushing Button (A) [2] and the Spring [3], remove the Switch [12].
Remove the Motor [29] and the Second Pinion [24] from Housing (A) [1].
(3) Power supply unit section
Remove the internal wires coming from the Motor [29] and the Switch [12] from the Switch
[12] with a soldering iron.
CAUTION: Do not apply heat to the Switch [12] for a long time with the soldering iron when
removing the internal wires. Otherwise, the electronic circuit in the Switch [12]
can be damaged.
