-21-
(2) Reassembly of the housing section

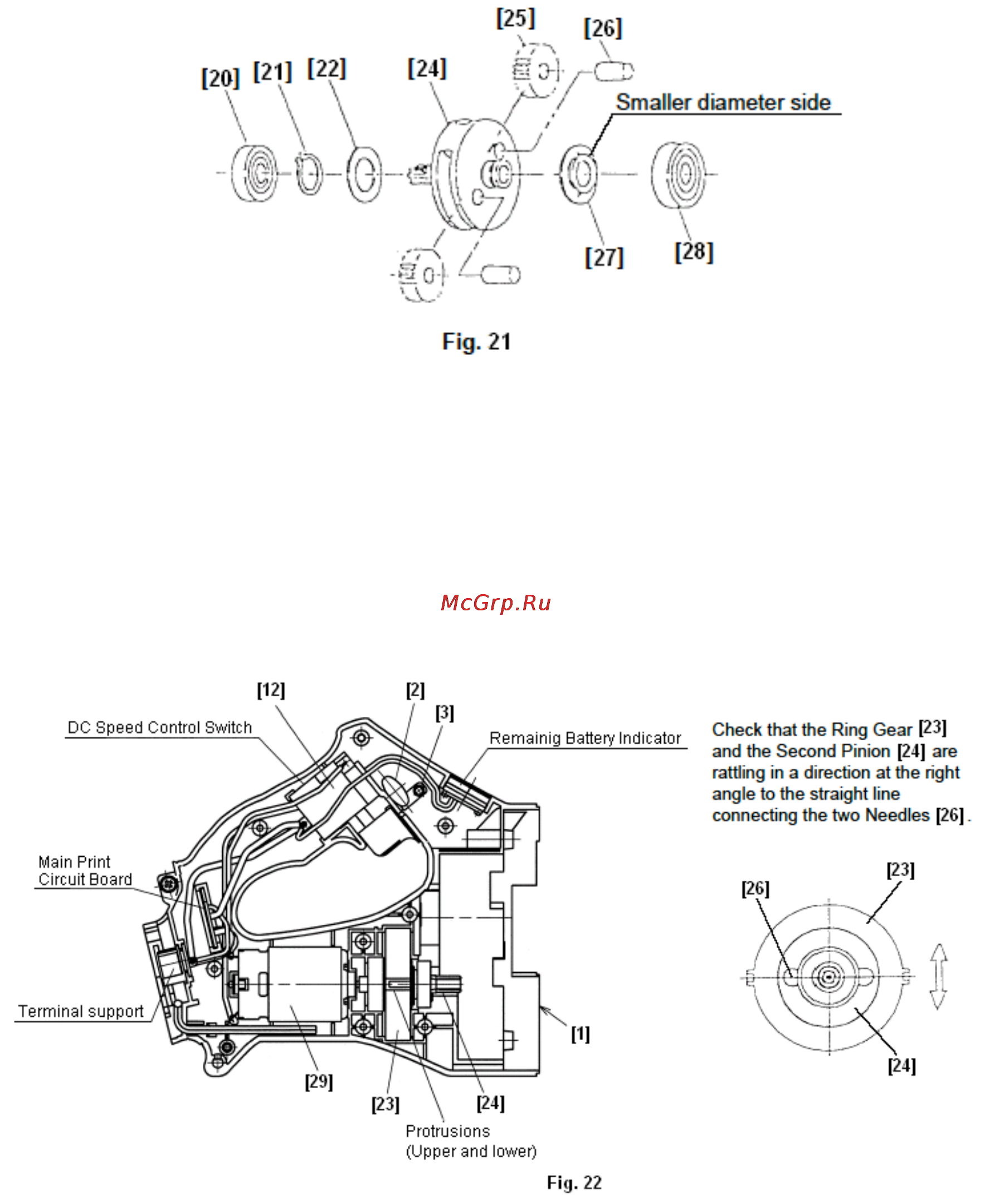

(a) Second Pinion [24] (Fig. 21)
Before inserting the Needle [26] in the Second Pinion [24], apply grease (Nippeco
SEP-3A) to the inner circumference of the two Idle Gears [25]. Mount the Washer [27]
facing its smaller diameter side to the Ball Bearing 6001VVCMPS2L [28]. Mount the
Washer [22] and then the Retaining Ring for D15 Shaft [21] using the stop ring pliers.
Press-fit the Ball Bearing 6001VVCMPS2L [28] and the Ball Bearing 609VVC2PS2L [20].
(b) Planet gear (Fig. 22)
First, apply grease (Nippeco SEP-3A) to the inner circumference of the Ring Gear [23].
Mount the pinion of the Motor [29] to the Second Pinion [24] assembled according to
the above step (a) and mount the Ring Gear [23]. Check that the Ring Gear [23] and the
Second Pinion [24] are rattling. If there is no rattle (gears are not engaged properly), the
Motor [29] will be locked. Mount this assembly to Housing (A) [1] mating the protrusion
of the Ring Gear [23] to the groove of Housing (A) [1].
