-22-
(c) Power supply unit (Fig. 22)
Mount the power supply unit assembled according to the above step (1) to Housing (A)
[1]. Connect the internal wires, main print circuit board, terminal support and remaining
battery indicator of the Switch [12] .

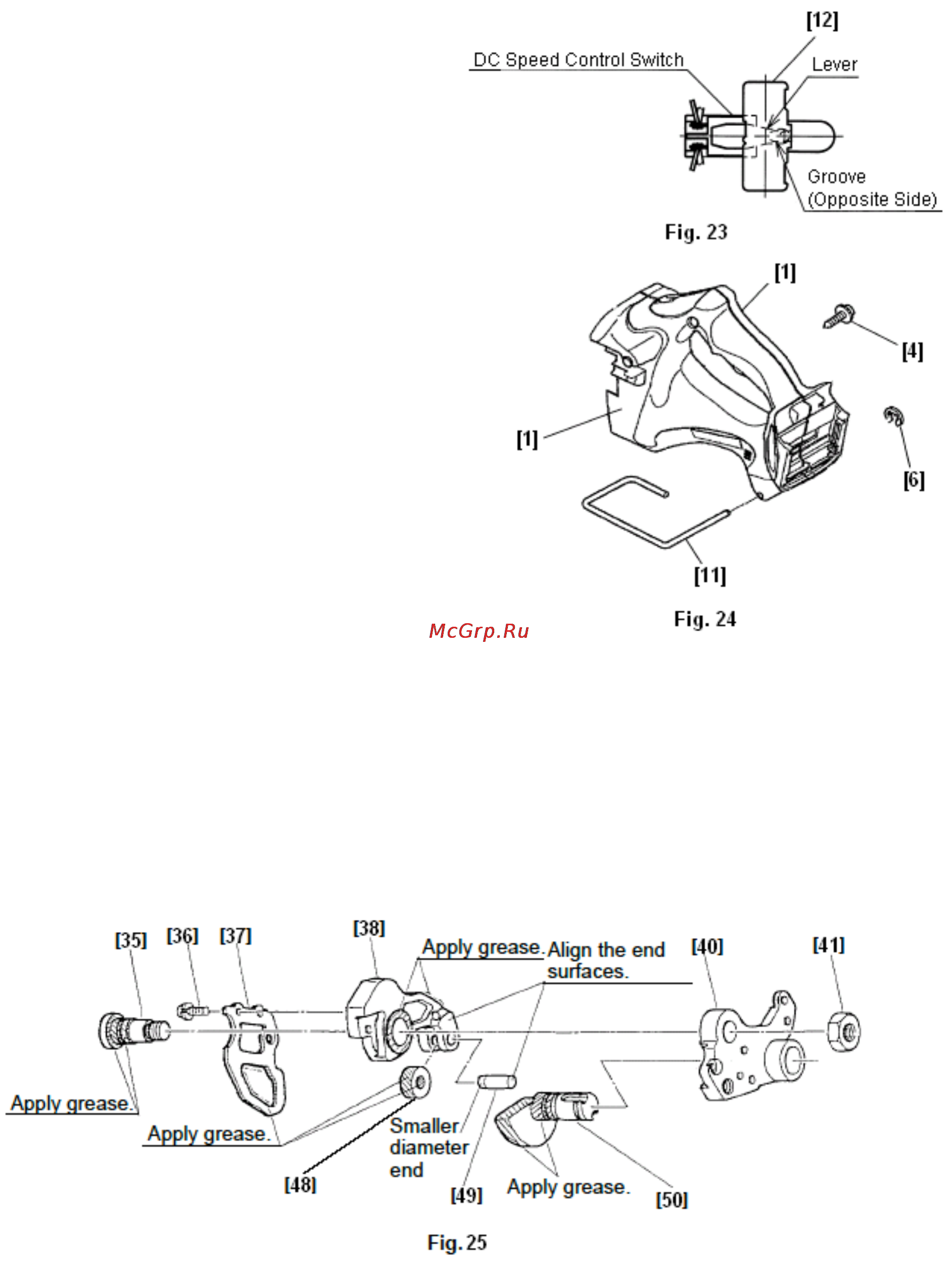

(d) Mount Pushing Button (A) [2] mating its
groove to the lever of the Switch [12] (Fig. 23).
(e) Mount the Spring [3] to Pushing Button
(A) [2] (Fig. 22).
(f) Place the internal wires to the proper positions
in Housing (A) [1]. Secure Housing (B) [1] with
the ten Tapping Screws (W/Flange) D4 x 20
(Black) [4] being careful not to catch the internal
wires, and not to come out of the remaining
battery indicator.
(g) Mount the Hook [11] in the proper direction.
Mount the Retaining Ring (E-type) for D4 Shaft
[6] (Fig. 24).
(3) Reassembly of the bracket ass'y section
(a) Lubrication (Fig. 25)
Sufficiently apply grease to Bracket (A) [38], Bracket
(B) [40], Roller (A) [48], Cam Shaft [50], coupling
portion and rotating portion of Bolt (A) [35] because
high loads are applied to these parts. Also apply
grease to the inner circumferences of the punched
holes of the Return Plate [37] and the sliding
portions of the Return Spring [14] and Bracket (A)
[38]. Apply TUFREX 251 grease to the shafts, holes
and surfaces indicated with diagonal lines and two-dot chain lines in Fig. 25. Carefully apply
grease to the inner circumference of the hole of Roller (A) [48] until the grooves in the hole
are completely greased.
(b) Mounting Roller (A) [48]
Check the position of the smaller diameter end of the Roller Pin [49] and insert the
Roller Pin [49] in the hole of Bracket (A) [38] in the proper direction as shown in Fig. 25.
Align Roller (A) [48] with the hole of Bracket (A) [38] and press-fit the Roller Pin [49]
until it becomes flush with the end surface of Bracket (A) [38] (Fig. 25).
