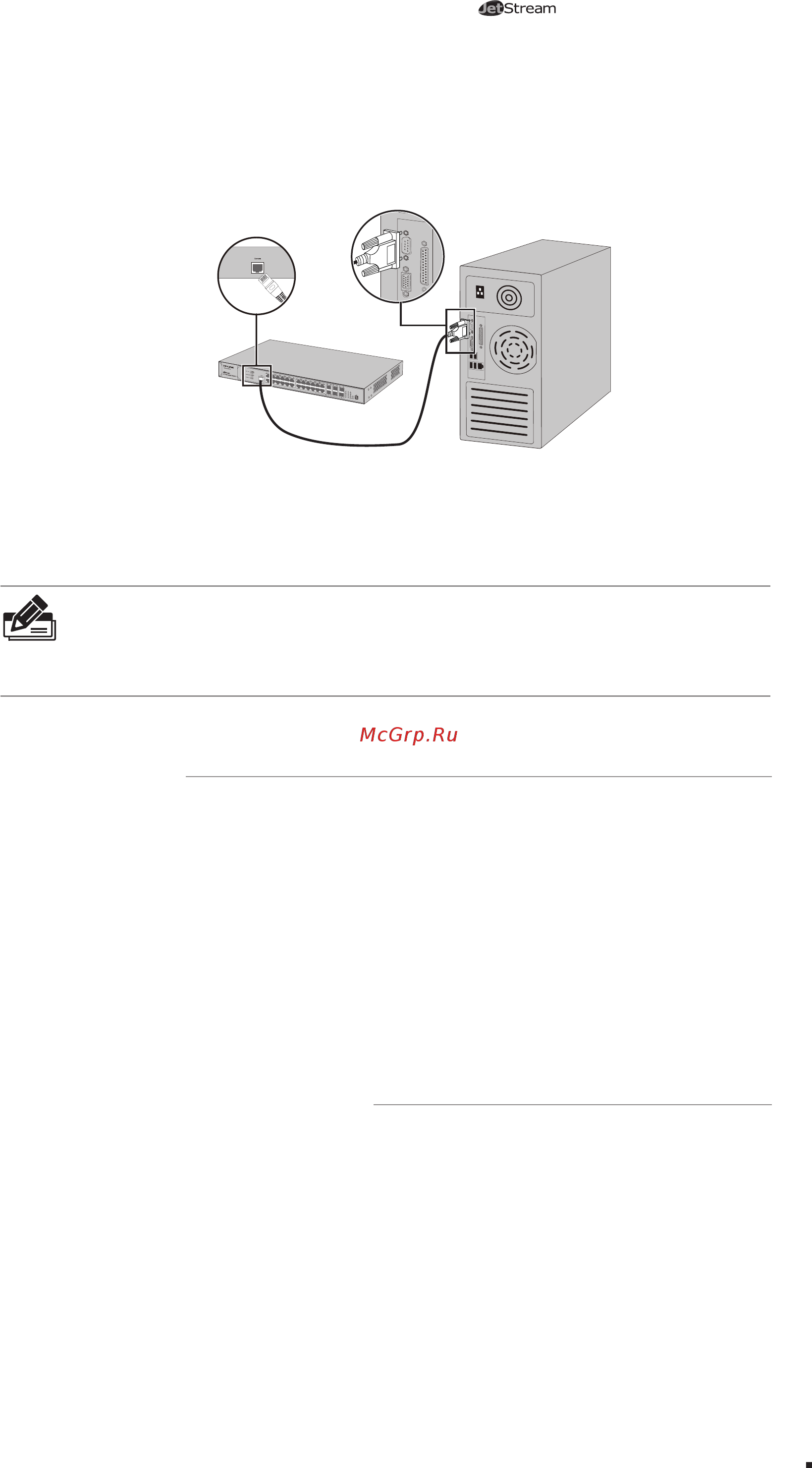

Connect the console port of the device with your computer by the console cable as the

following figure shown.

Figure 5-3 Connecting the Console Port

You can also manage the device through the console port, for details please refer to the

CLI Reference Guide on the resource CD.

Note:

■

The console port is the first port on the left of the front panel.

■

Please keep the device power off when plugging the console cable.

■

Do not connect the console port with other ports by RJ45 cable.

5.4 Verify Installation

After completing the installation, please verify the following items:

■

There are 5~10cm of clearance around the sides of the device for ventilation and the

air flow is adequate.

■

The voltage of the power supply meets the requirement of the input voltage of the

device.

■

The power socket, device and rack are well grounded.

■

The device is correctly connected to other network devices.

5.5 Power on via Power Supply Module

After the Power Supply Module (PSM150-AC for example) is installed on the switch,

please plug the female connector of the provided power cord into the power socket of

the device, and the male connector into a power outlet as the following figure shows.

Connection
