04
Stackable L2+/L3 Managed Switch
Introduction
■
Rear Panel

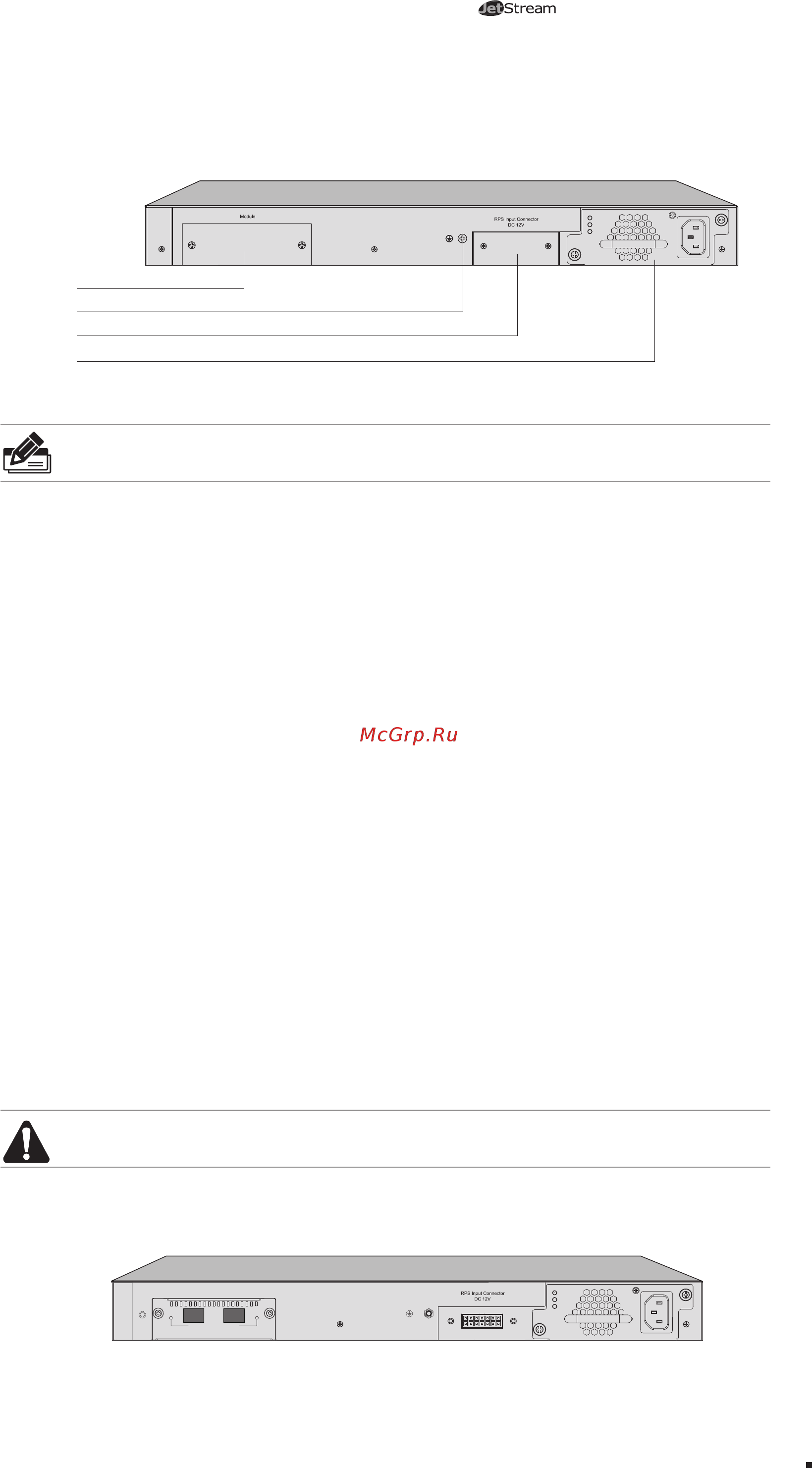

The rear panel of T3700G-28TQ is shown as the following figure.
Power
PS OK
Fault
PSM150-AC
100-240V~ 50/60Hz 2.5A
Grounding Terminal
RPS Input Connector
Interface Card Slot
Power Supply Module
Figure 1-2 Rear Panel of T3700G-28TQ (1)
Note: The Interface Card Slot and RPS Input Connector are shipped with protective
covers.
Interface Card Slot
Designed to extend the interfaces. You can select a TP-LINK Interface Card (TX432
for example) for your switch if needed. For how to install an Interface Card, please
refer to 3.4 Installing & Removing the Interface Card.
Grounding Terminal
The switch already comes with lightning protection mechanism. You can also ground
the switch through the PE (Protecting Earth) cable of AC cord or with Ground Cable.
For detailed information, please refer to Chapter 4 Lightning Protection.
RPS Input Connector
Designed to connect the RPS (Redundant Power Supply). You can selected an RPS of
TP-LINK (RPS150 for example) for your switch if needed. For how to install an RPS,
please refer to 5.6 Power on via Redundant Power Supply.
Power Supply Module
The AC Power Supply Module PSM150-AC is installled in the switch. The
malfunctioned PSM150-AC can be replaced with a TP-LINK power supply module of
the same model. Its input voltage is 100-240V~ 50/60Hz.
The AC Power Supply Module is fully hot swappable, helping to ensure no system
interruption during installation or replacement. For how to install/remove the Power
Supply Module, please refer to 3.3 Installing & Removing the Power Supply
Module.
Caution: Please use the provided power cord.
With all the protective covers removed and the Interface Card (TX432 for example)
inserted, the rear panel of T3700G-28TQ is shown as the following figure.
M1
SFP+
M2
SFP+
CLASS 1 LASER PRODUCT
TX432
Module
Power
PS OK
Fault
PSM150-AC
100-240V~ 50/60Hz 2.5A
Figure 1-3 Rear Panel of T3700G-28TQ (2)
