25
Stackable L2+/L3 Managed Switch

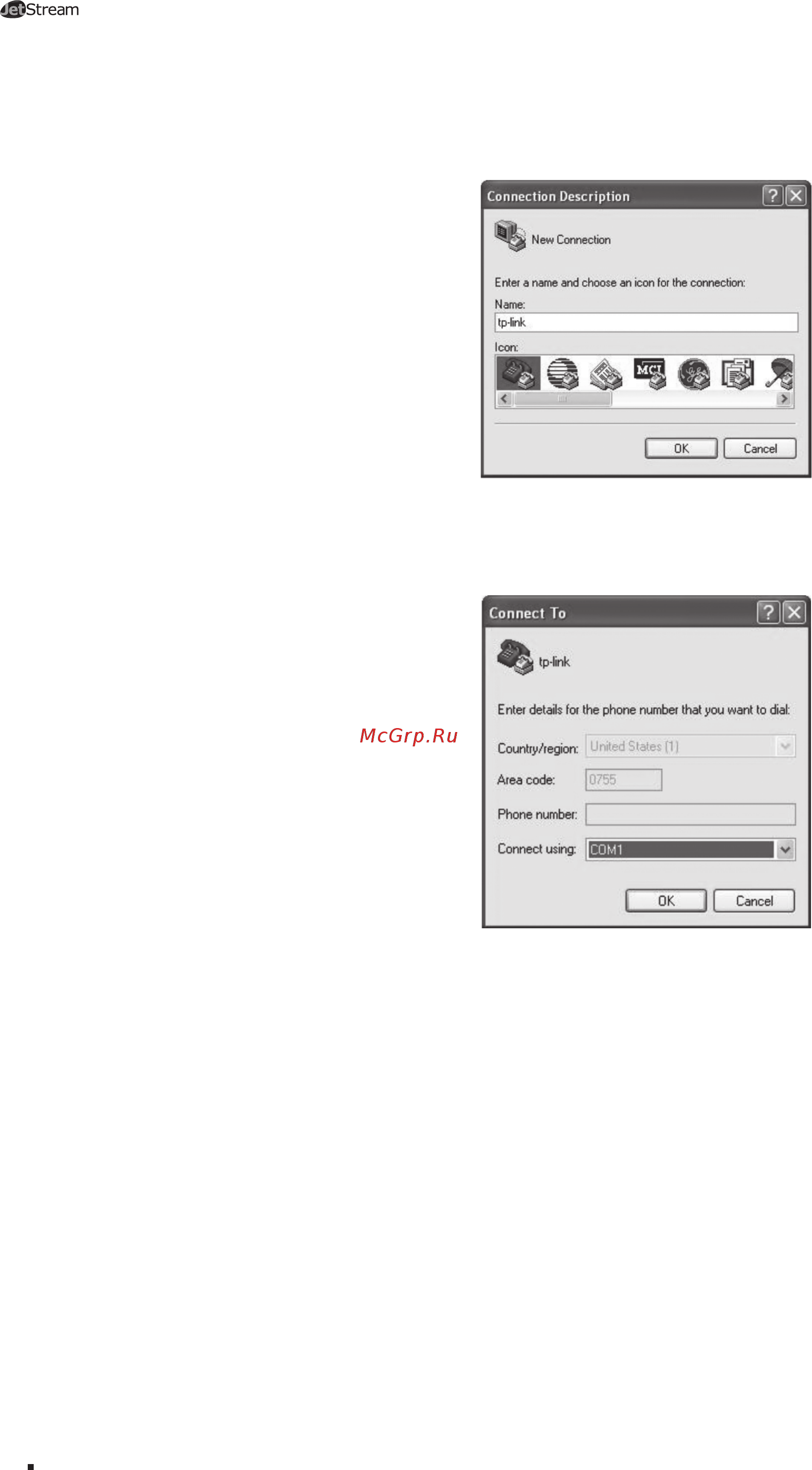

3. The Connection Description Window will prompt as Figure 6-5. Enter a name into the
Name field and click OK.
Figure 6-5 Connection Description
4. Select the port to connect in Figure 6-6, and click OK.
Figure 6-6 Select the port to connect
5. Configure the port selected in the step above as the following Figure 6-7 shown.
Configure Bits per second as 38400, Data bits as 8, Parity as None, Stop bits as 1,
Flow control as None, and then click OK.
Configuration
