27
Stackable L2+/L3 Managed Switch

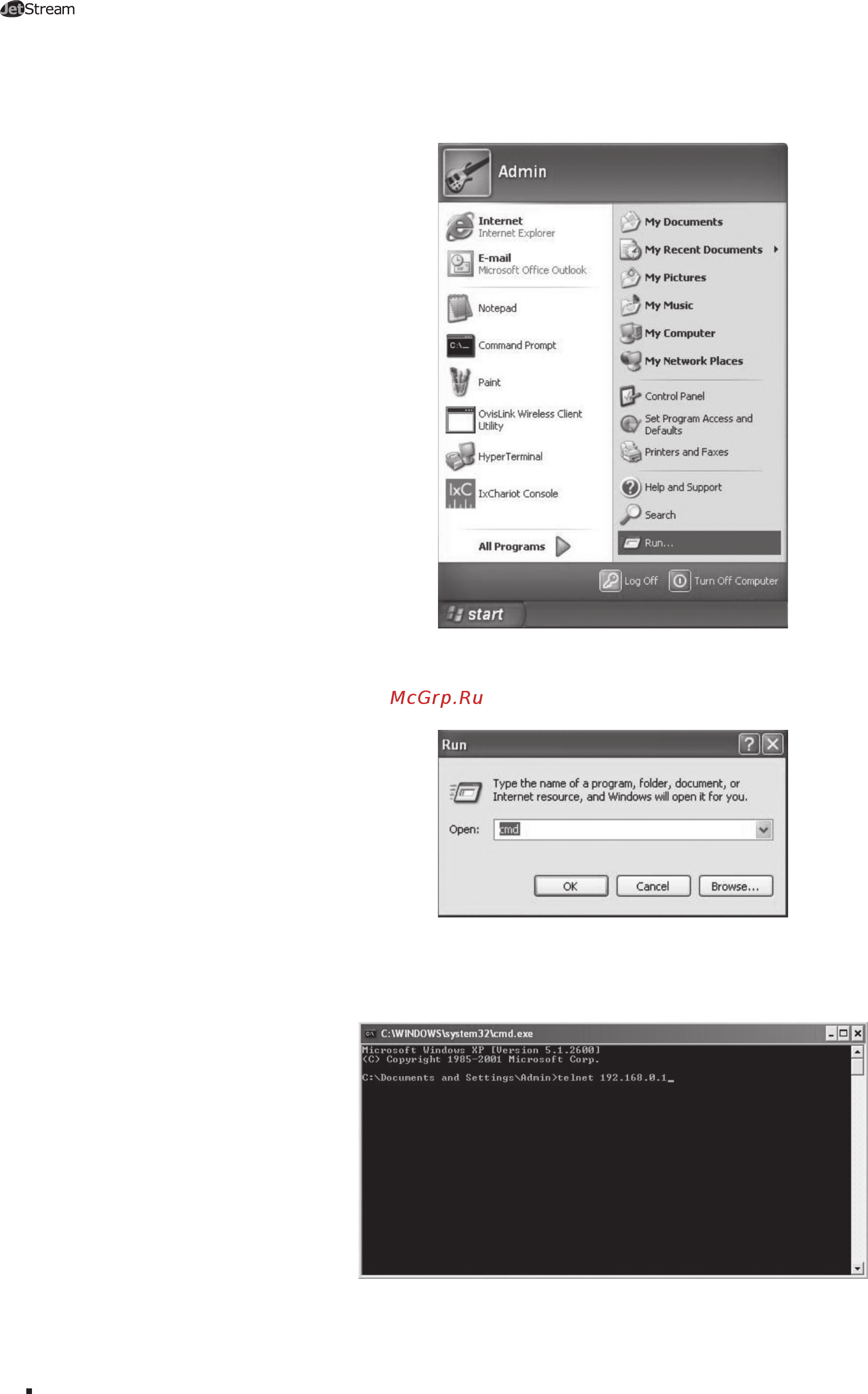

3. Click Start
→
Run to open the Run window.
Figure 6-9 Open the Run window
4. Type in cmd in the prompt Run window as Figure 6-10 and click OK.
Figure 6-10 Run Window
5. Type in telnet 192.168.0.1 in the command prompt shown as Figure 6-11, and press
the Enter button.
Figure 6-11 Connecting to the switch
Configuration
