Chapter 8

Device Management

KVM Devices

Device Information

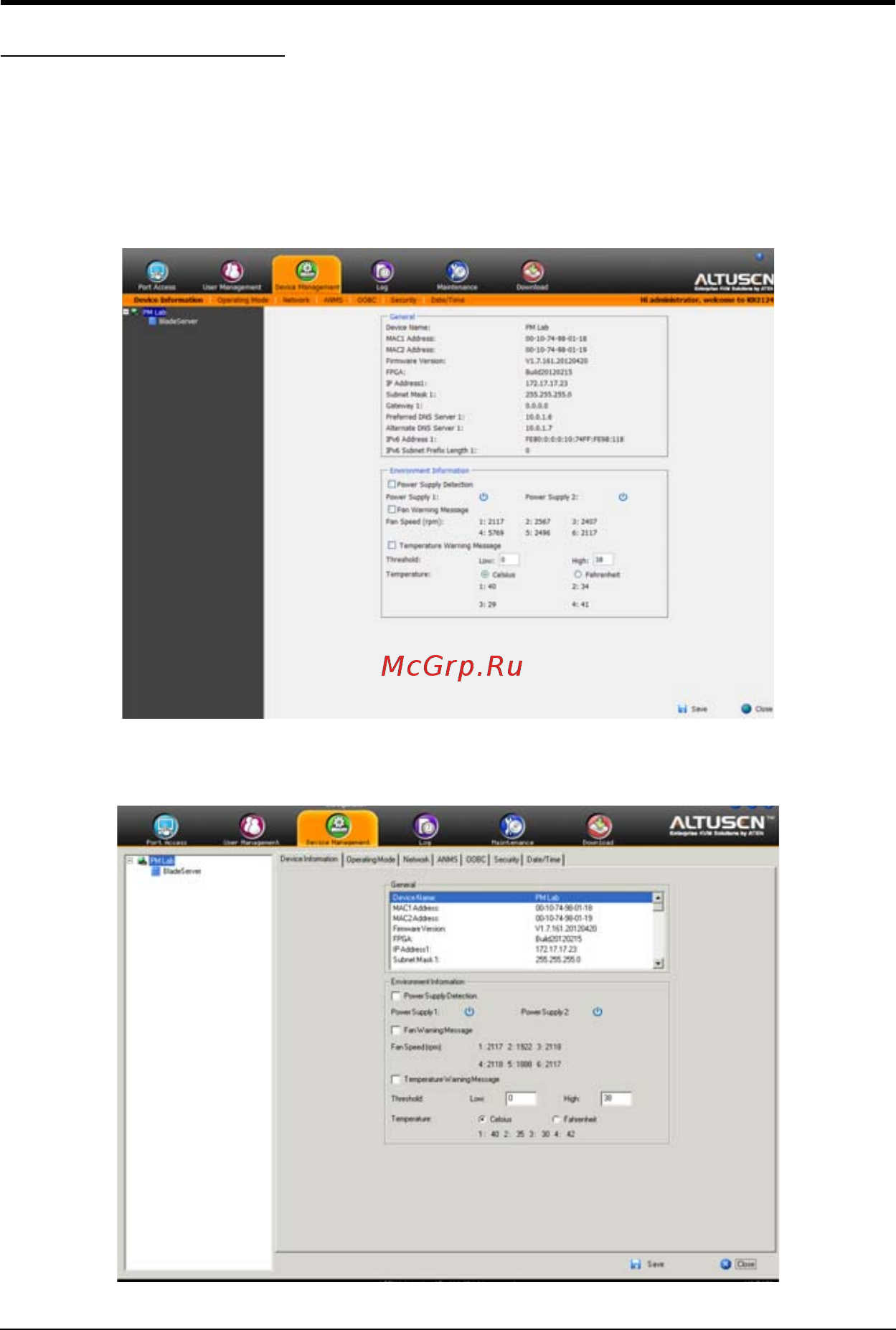

The Device Management page opens with the top level KVM Over the NET™

switch selected in the Sidebar and the Device Information item selected on the

menu bar:
