Aten VS0108HA [10/20] Installation
![Aten VS0108HA [10/20] Installation](/views2/1211532/page10/bga.png)
- 10 -
Installation

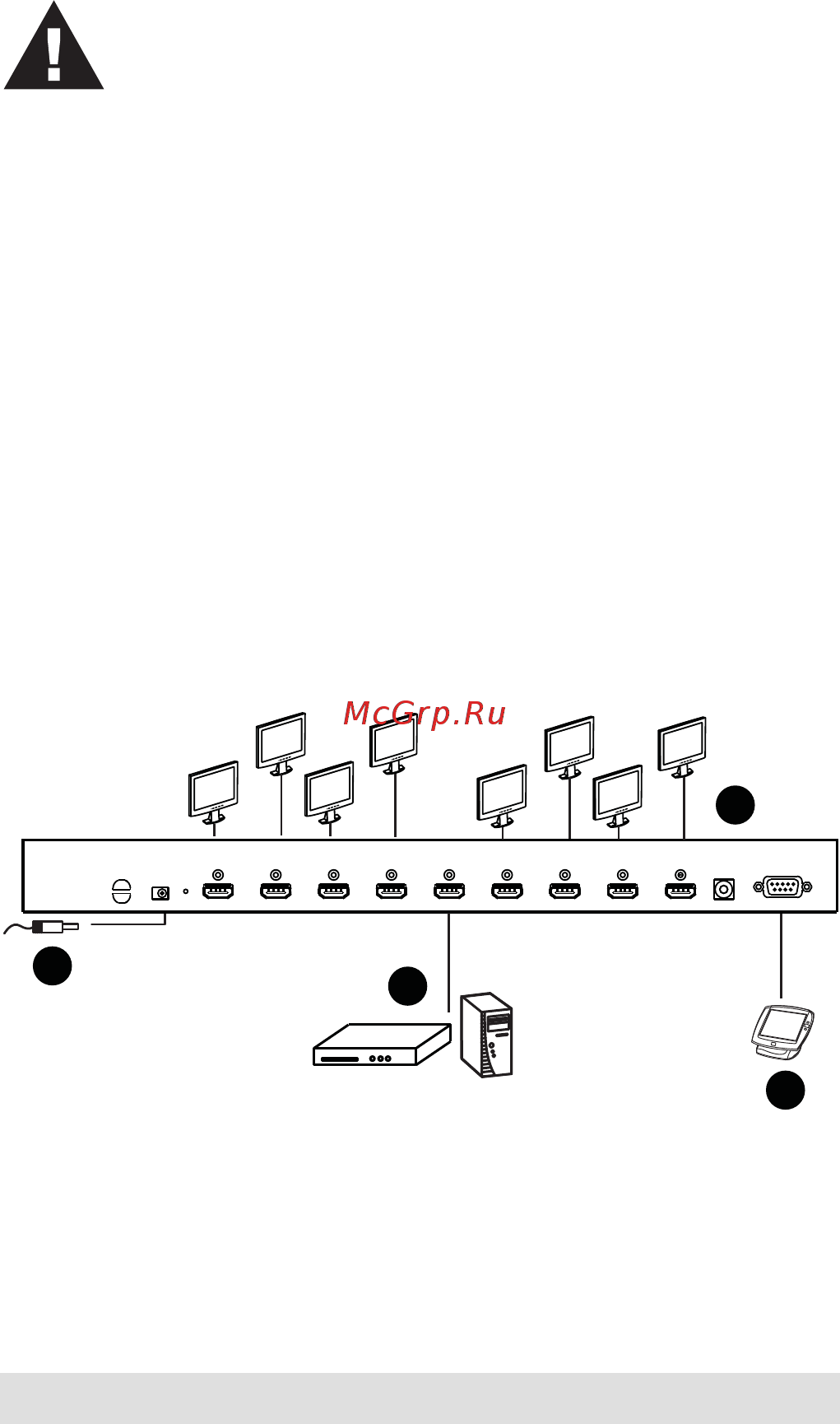

Refer to the installation diagram (the numbers in the diagram
correspond to the numbers of the steps) and do the following:
1. Use a Male-to-Male Type A HDMI cable to connect your
computer or HDMI source device to the VS0108HA’s HDMI
Input port.
2. Use Male-to-Male Type A HDMI cables to connect up to eight
HDMI display devices to the HDMI Output ports.
3. (Optional) To edit the VS0108HA system settings through the
RS-232 port, connect the hardware / software controller here.
4. Plug the power adapter that came with the VS0108HA into an
AC power source, then plug the power adapter cable into the
splitter’s Power Jack
1. Make sure that the power to all devices you will be
installing has been turned off.
2. Make sure that all devices you will be installing are
properly grounded.
1
2
3
4
